Disc Harrow Parts Disc Harrow Tractor Disc Harrow
US$ 650 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Farm Cultivator
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Guangzhou and so on
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Harrow Teeth Factory Supply Disc Harrow Tractor Disc HarrowUS$ 300 - 3,100MOQ: 1 Set -
Disc Harrow Blade on Sale Supply Disc Harrow Tractor Disc HarrowUS$ 300 - 2,800MOQ: 1 Set
-
Spare Parts for Disc Harrow Supply Disc Harrow Tractor Disc HarrowUS$ 300 - 2,200MOQ: 1 Set
-
Spare Parts for Disc Harrow Disc Harrow Tractor Disc HarrowUS$ 420 - 2,400MOQ: 1 Set
-
Pull Type Disc Harrow Tractor Disc HarrowUS$ 390 - 2,400MOQ: 1 Set
Condition
New
Type
Farm Cultivator
Power Type
Diesel
Power(W)
35-135 HP
Certification
ISO CE
Warranty
Two years
Use
farmland
Place of Origin
Shandong, China
Brand Name
Da Di
Model Number
1BZ 1BJZ 1BZDZ, 1BZ-1.6/1.8/2.0/2.2/2.5/3.0/3.4/5.6
Weight
500-2600 KG
Dimension(L*W*H)
many
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

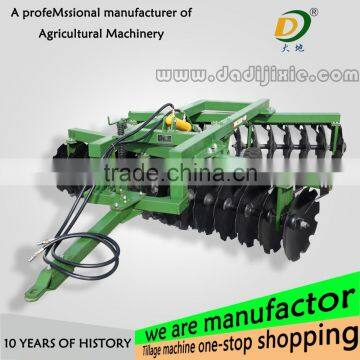

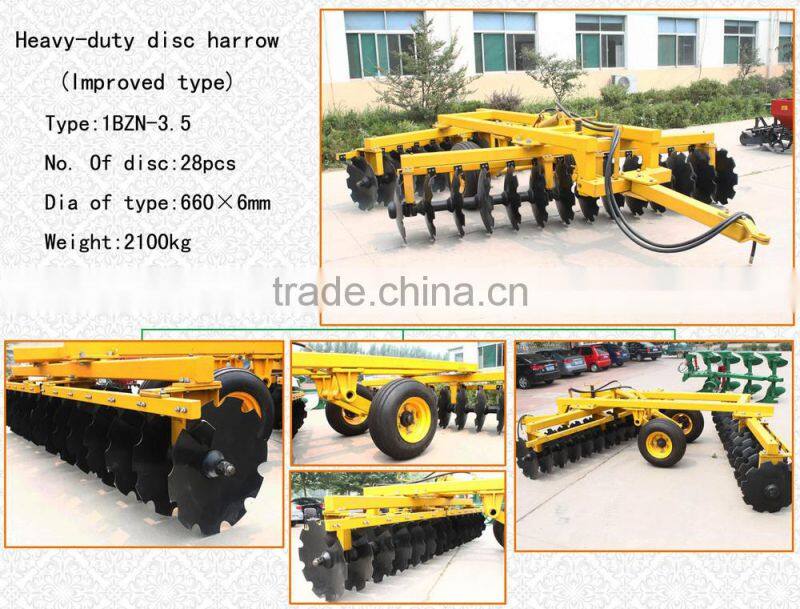

Heavy suspension offset disc harrow
1 They have been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields.
2 It may be used for cleaning away stubble of plants before tillage, or crushing clods after tillage.
3 It may also be used as plough for primary tillage in cultivated fields.
4 Maximum harrowing depth on uncultivated land can reach 25cm.
Specifications
| Number | Product Name | Model | Overall size (mm) | Matched Power (Hp) | Weight (Kg) | Working width (M) | Working depth (mm) | Qty. of discs | Dia. Of disc (mm) | Thickness of disc (mm) |
| 1 | 12Light Mounted Disc Harrow | 1BQX-1.1 | 1590*1230*830 | 12--25 | 200 | 1.1 | 80-140 | 12 | 460 | 3 |
| 2 | 14Light Mounted Disc Harrow | 1BQX-1.3 | 1590*1440*830 | 15-30 | 220 | 1.3 | 80-140 | 14 | 460 | 3 |
| 3 | 16Light Mounted Disc Harrow | 1BQX-1.5 | 1900*1600*1120 | 25-35 | 240 | 1.5 | 80-140 | 16 | 460 | 3 |
| 4 | 18Light Mounted Disc Harrow | 1BQX-1.7 | 1900*1820*1120 | 30-40 | 260 | 1.7 | 80-140 | 18 | 460 | 3 |
| 5 | 20Light Mounted Disc Harrow | 1BQX-1.9 | 2300*2000*1120 | 35-50 | 300 | 1.9 | 80-140 | 20 | 460 | 3 |
| 6 | 24Light Mounted Disc Harrow | 1BQX-2.3 | 2650*2450*1280 | 50-65 | 420 | 2.3 | 80-140 | 24 | 460 | 3 |
| 7 | 28Light Mounted Disc Harrow | 1BQX-2.7 | 2650*2750*1280 | 55-70 | 500 | 2.7 | 80-140 | 28 | 460 | 3 |
| 10 | 36Light hydraulic disc harrow | 1BQ-2.9 | 60-80 | 1053 | 2.9 | 80-140 | 36 | 460 | 3 | |
| 11 | 42Light hydraulic disc harrow | 1BQ-3.4 | 5360*5360*1050 | 65-100 | 1108 | 3.4 | 80-140 | 42 | 460 | 3 |
| 12 | 36Light hydraulic disc harrow | 1BQ-3.4A | 70-90 | 1075 | 3.4 | 80-140 | 36 | 460 | 3 | |
| 13 | 42Light hydraulic disc harrow | 1BQ-4.0A | 5360*5360*1050 | 80-100 | 1142 | 3.4 | 80-140 | 42 | 460 | 3 |
| 14 | 54Light hydraulic disc harrow | 1BQ-4.6 | 5820*4600*1050 | 80-120 | 1460 | 4.4 | 80-140 | 54 | 460 | 3 |
| 15 | 60Light hydraulic disc harrow | 1BQ-5.0 | 5820*5820*1050 | 90-120 | 1580 | 5.0 | 80-140 | 60 | 460 | 3 |
| 16 | 12Medium Mounted Disc Harrow | 1BJX-1.3 | 1590*1230*830 | 25-35 | 336 | 1.3 | 140-180 | 12 | 560 | 4 |
| 17 | 14Medium Mounted Disc Harrow | 1BJX-1.5 | 1590*1440*830 | 30-40 | 365 | 1.5 | 140-180 | 14 | 560 | 4 |
| 18 | 16Medium Mounted Disc Harrow | 1BJX-1.7 | 1960*1880*1317 | 45-55 | 400 | 1.7 | 140-180 | 16 | 560 | 4 |
| 19 | 18Medium Mounted Disc Harrow | 1BJX-2.0 | 1980*2240*1317 | 50-70 | 434 | 2.0 | 140-180 | 18 | 560 | 4 |
| 20 | 20Medium Mounted Disc Harrow | 1BJX-2.2 | 1980*2470*1317 | 55-70 | 470 | 2.2 | 140-180 | 20 | 560 | 4 |
| 21 | 22Medium Mounted Disc Harrow | 1BJX-2.4 | 2780*2570*1340 | 65-80 | 540 | 2.4 | 140-180 | 22 | 560 | 4 |
| 22 | 24Medium Mounted Disc Harrow | 1BJX-2.5 | 2970*2680*1460 | 72-90 | 650 | 2.5 | 140-180 | 24 | 560 | 4 |
| 23 | 28Medium Mounted Disc Harrow | 1BJX-3.0 | 2970*3100*1460 | 80-100 | 750 | 3.0 | 140-180 | 28 | 560 | 4 |
| 24 | 36Medium Hydraulic Disc Harrow | 1BJ-4.0A(1BQ | 80-100 | 1420 | 4.0 | 140-180 | 36 | 560 | 4 | |
| 25 | 36Medium Hydraulic wing Disc Harrow | 1BJ-4.0 | 80-100 | 1560 | 4.0 | 140-180 | 36 | 560 | 4 | |
| 26 | 40Medium Hydraulic wing Disc Harrow | 1BJ-4.4 | 5320*4800*1130 | 80-120 | 1750 | 4.4 | 140 | 40 | 560 | 4 |
| 27 | 48Medium Hydraulic wing Disc Harrow | 1BJ-5.3 | 5720*5720*1130 | 100-150 | 2150 | 5.3 | 140 | 48 | 560 | 4 |
| 28 | 16Heavy-duty hydraulic disc harrow | 1BZ-1.7 | 4800*1900*1340 | 60-80 | 1135 | 1.7 | 200 | 16 | 660 | 5 |
| 29 | 18Heavy-duty hydraulic disc harrow | 1BZ-1.8 | 4800*2000*1340 | 65-90 | 1180 | 1.8 | 200 | 18 | 660 | 5 |
| 30 | 20Heavy-duty hydraulic disc harrow | 1BZ-2.2 | 4820*2440*1340 | 70-100 | 1260 | 2.2 | 200 | 20 | 660 | 5 |
| 31 | 24Heavy-duty hydraulic disc harrow | 1BZ-2.5 | 5320*2880*1340 | 80-100 | 1380 | 2.5 | 200 | 24 | 660 | 5 |
| 32 | 28Heavy-duty hydraulic disc harrow | 1BZ-3.0 | 5320*3320*1340 | 90-120 | 1500 | 3.0 | 200 | 28 | 660 | 5 |
| 33 | 32Heavy-duty hydraulic disc harrow | 1BZ-3.4 | 5820*3760*1340 | 100-130 | 1750 | 3.4 | 200 | 32 | 660 | 5 |
| 34 | 36Heavy-duty hydraulic disc harrow | 1BZ-3.9 | 5500*4000*1130 | 120-140 | 1950 | 3.9 | 200 | 36 | 660 | 5 |
| 35 | 40Heavy-duty hydraulic disc harrow | 1BZ-4.4 | 6200*4500*1130 | 130-150 | 2400 | 4.4 | 240 | 40 | 660 | 5 |
| 36 | 44Heavy-duty hydraulic disc harrow | 1BZ-4.8 | 6200*5000*1130 | 150-180 | 2550 | 4.8 | 240 | 44 | 660 | 5 |
| 37 | 48Heavy-duty hydraulic disc harrow | 1BZ-5.3 | 6800*5400*1130 | 160-200 | 2700 | 5.3 | 240 | 48 | 660 | 5 |
| 38 | 56Heavy-duty hydraulic disc harrow | 1BZ-6.2 | 6800*6380*1500 | 180-220 | 3300 | 6.2 | 240 | 56 | 660 | 5 |
| 39 | 40Heavy-duty hydraulic wing disc harrow | 1BZDZ-4.4 | 6200*4500*1130 | 140~160 | 3150 | 4.4 | 240 | 40 | 660 | 5 |
| 40 | 44Heavy-duty hydraulic wing disc harrow | 1BZDZ-4.8 | 6200*5000*1130 | 150~180 | 3300 | 4.8 | 240 | 44 | 660 | 5 |
| 41 | 48Heavy-duty hydraulic wing disc harrow | 1BZDZ-5.3 | 6800*5400*1130 | 160~200 | 3500 | 5.3 | 240 | 48 | 660 | 5 |
| 42 | 52Heavy-duty hydraulic wing disc harrow | 1BZDZ-5.6 | 6800*5700*1130 | 180~220 | 3850 | 5.6 | 240 | 52 | 660 | 5 |
| 43 | 56Heavy-duty hydraulic wing disc harrow | 1BZDZ-6.2 | 6800*6380*1500 | 200~240 | 4200 | 6.2 | 240 | 56 | 660 | 5 |

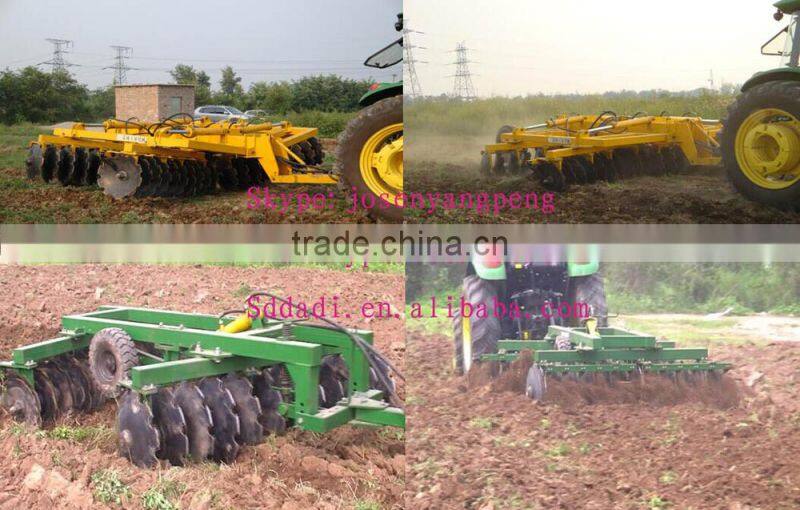

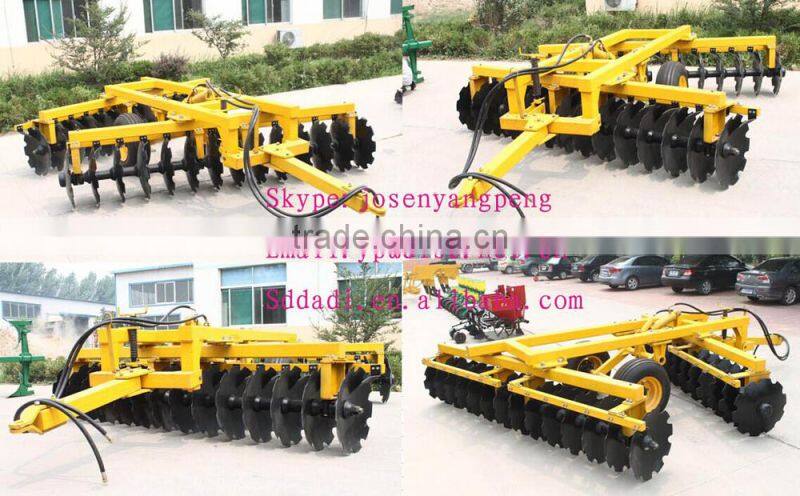

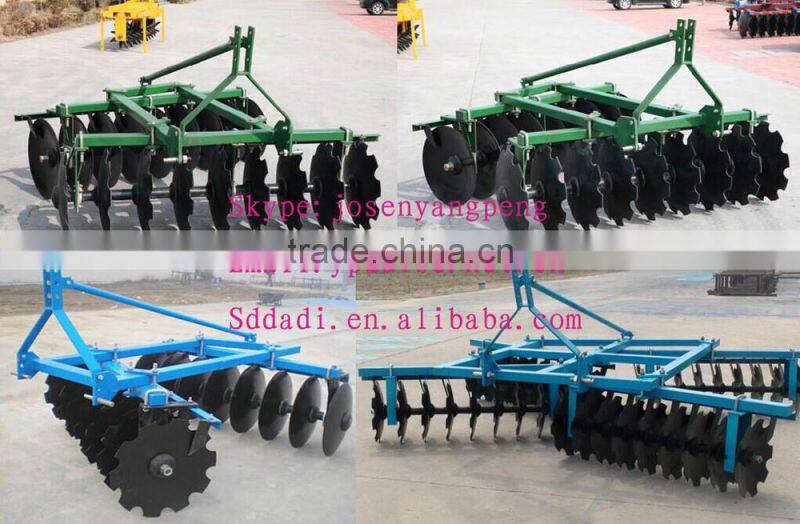

Product Show
Packaging & Shipping
Company Information
Our Services
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
