Multifunctional Opposed Light-duty Farm Disc Harrow Made in China
US$ 600 - 3,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
disc harrow
Use:
agricultural machine
Certification:
ISO9001:2000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Heavy Disc Harrow Professional Farm MachineryUS$ 600 - 3,200MOQ: 1 Set -
New Design Mounted Light-duty Disc Harrow High QuolityUS$ 600 - 3,200MOQ: 1 Set
-
Hot Selling Opposed Heavy-duty Disc Harrow With Great PriceUS$ 600 - 3,200MOQ: 1 Set
-
Model 9GW Rotary SlasherUS$ 1 - 11MOQ: 1 Set
-
1LZ Series Once-over Tillage MachineUS$ 1 - 11MOQ: 1 Set
Type
disc harrow
Use
agricultural machine
Certification
ISO9001:2000
Place of Origin
Shandong, China
Brand Name
Dadi
Model Number
1BZ Series
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas

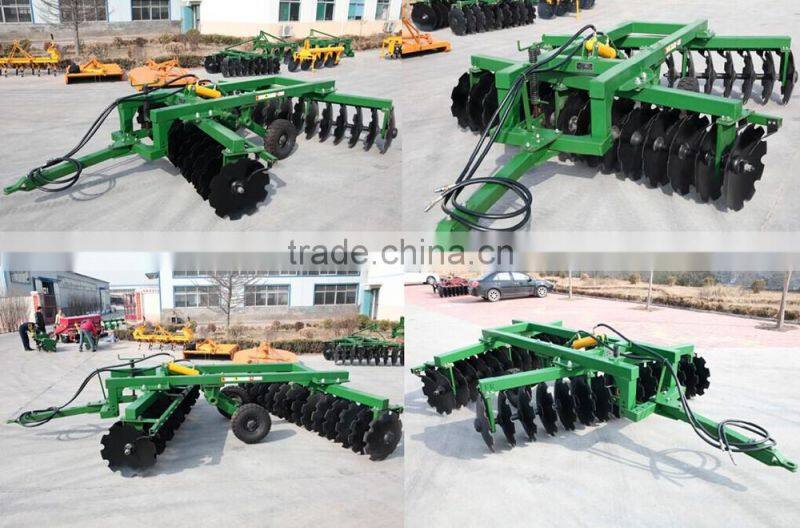

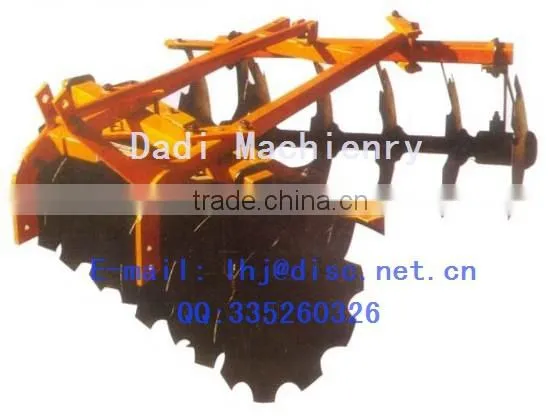

Multifunctional opposed light-duty farm disc harrow made in China
Product Description

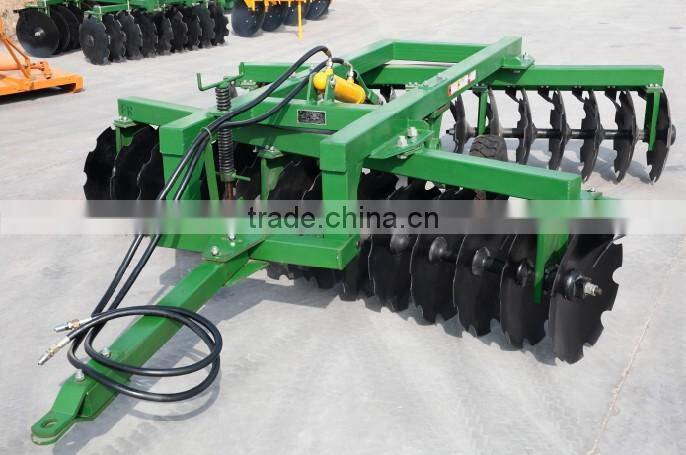

opposed light-duty farm disc harrow
Agricultural Machinery Heavy-duty Disc Harrow/disk harrow specifications
1BZ series heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage,or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields,they can also be used as a plough for primary tillage in dry cultivated fields.The series products are all fitted with hydraulic rubber wheel for transportation,It is easy to be transported and chang directiong on the edge of fields.
Good quality,good price,welcome to visit our factory!
Specifications
| Number | Product Name | Model | Overall size (mm) | Matched Power (Hp) | Weight (Kg) | Working width (M) | Working depth (mm) | Qty. of discs | Dia. Of disc (mm) | Thickness of disc (mm) |
| 16 | 12Medium Mounted Disc Harrow | 1BJX-1.3 | 1590*1230*830 | 25-35 | 336 | 1.3 | 140-180 | 12 | 560 | 4 |
| 17 | 14Medium Mounted Disc Harrow | 1BJX-1.5 | 1590*1440*830 | 30-40 | 365 | 1.5 | 140-180 | 14 | 560 | 4 |
| 18 | 16Medium Mounted Disc Harrow | 1BJX-1.7 | 1960*1880*1317 | 45-55 | 400 | 1.7 | 140-180 | 16 | 560 | 4 |
| 19 | 18Medium Mounted Disc Harrow | 1BJX-2.0 | 1980*2240*1317 | 50-70 | 434 | 2.0 | 140-180 | 18 | 560 | 4 |
| 20 | 20Medium Mounted Disc Harrow | 1BJX-2.2 | 1980*2470*1317 | 55-70 | 470 | 2.2 | 140-180 | 20 | 560 | 4 |
| 21 | 22Medium Mounted Disc Harrow | 1BJX-2.4 | 2780*2570*1340 | 65-80 | 540 | 2.4 | 140-180 | 22 | 560 | 4 |
| 22 | 24Medium Mounted Disc Harrow | 1BJX-2.5 | 2970*2680*1460 | 72-90 | 650 | 2.5 | 140-180 | 24 | 560 | 4 |
| 23 | 28Medium Mounted Disc Harrow | 1BJX-3.0 | 2970*3100*1460 | 80-100 | 750 | 3.0 | 140-180 | 28 | 560 | 4 |
| 24 | 36Medium Hydraulic Disc Harrow | 1BJ-4.0A(1BQ | 80-100 | 1420 | 4.0 | 140-180 | 36 | 560 | 4 | |
| 25 | 36Medium Hydraulic wing Disc Harrow | 1BJ-4.0 | 80-100 | 1560 | 4.0 | 140-180 | 36 | 560 | 4 | |
| 26 | 40Medium Hydraulic wing Disc Harrow | 1BJ-4.4 | 5320*4800*1130 | 80-120 | 1750 | 4.4 | 140 | 40 | 560 | 4 |
| 27 | 48Medium Hydraulic wing Disc Harrow | 1BJ-5.3 | 5720*5720*1130 | 100-150 | 2150 | 5.3 | 140 | 48 | 560 | 4 |
| 28 | 16Heavy-duty hydraulic disc harrow | 1BZ-1.7 | 4800*1900*1340 | 60-80 | 1135 | 1.7 | 200 | 16 | 660 | 5 |
| 29 | 18Heavy-duty hydraulic disc harrow | 1BZ-1.8 | 4800*2000*1340 | 65-90 | 1180 | 1.8 | 200 | 18 | 660 | 5 |
| 30 | 20Heavy-duty hydraulic disc harrow | 1BZ-2.2 | 4820*2440*1340 | 70-100 | 1260 | 2.2 | 200 | 20 | 660 | 5 |
| 31 | 24Heavy-duty hydraulic disc harrow | 1BZ-2.5 | 5320*2880*1340 | 80-100 | 1380 | 2.5 | 200 | 24 | 660 | 5 |
| 32 | 28Heavy-duty hydraulic disc harrow | 1BZ-3.0 | 5320*3320*1340 | 90-120 | 1500 | 3.0 | 200 | 28 | 660 | 5 |
| 33 | 32Heavy-duty hydraulic disc harrow | 1BZ-3.4 | 5820*3760*1340 | 100-130 | 1750 | 3.4 | 200 | 32 | 660 | 5 |
| 34 | 36Heavy-duty hydraulic disc harrow | 1BZ-3.9 | 5500*4000*1130 | 120-140 | 1950 | 3.9 | 200 | 36 | 660 | 5 |
| 35 | 40Heavy-duty hydraulic disc harrow | 1BZ-4.4 | 6200*4500*1130 | 130-150 | 2400 | 4.4 | 240 | 40 | 660 | 5 |
| 36 | 44Heavy-duty hydraulic disc harrow | 1BZ-4.8 | 6200*5000*1130 | 150-180 | 2550 | 4.8 | 240 | 44 | 660 | 5 |
| 37 | 48Heavy-duty hydraulic disc harrow | 1BZ-5.3 | 6800*5400*1130 | 160-200 | 2700 | 5.3 | 240 | 48 | 660 | 5 |
| 38 | 56Heavy-duty hydraulic disc harrow | 1BZ-6.2 | 6800*6380*1500 | 180-220 | 3300 | 6.2 | 240 | 56 | 660 | 5 |
| 39 | 40Heavy-duty hydraulic wing disc harrow | 1BZDZ-4.4 | 6200*4500*1130 | 140~160 | 3150 | 4.4 | 240 | 40 | 660 | 5 |
| 40 | 44Heavy-duty hydraulic wing disc harrow | 1BZDZ-4.8 | 6200*5000*1130 | 150~180 | 3300 | 4.8 | 240 | 44 | 660 | 5 |
| 41 | 48Heavy-duty hydraulic wing disc harrow | 1BZDZ-5.3 | 6800*5400*1130 | 160~200 | 3500 | 5.3 | 240 | 48 | 660 | 5 |
| 42 | 52Heavy-duty hydraulic wing disc harrow | 1BZDZ-5.6 | 6800*5700*1130 | 180~220 | 3850 | 5.6 | 240 | 52 | 660 | 5 |
| 43 | 56Heavy-duty hydraulic wing disc harrow | 1BZDZ-6.2 | 6800*6380*1500 | 200~240 | 4200 | 6.2 | 240 | 56 | 660 | 5 |

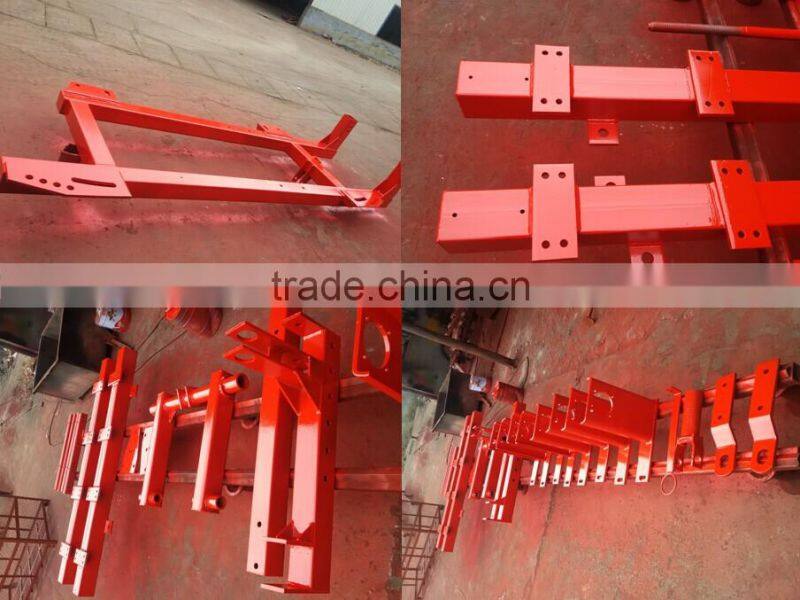

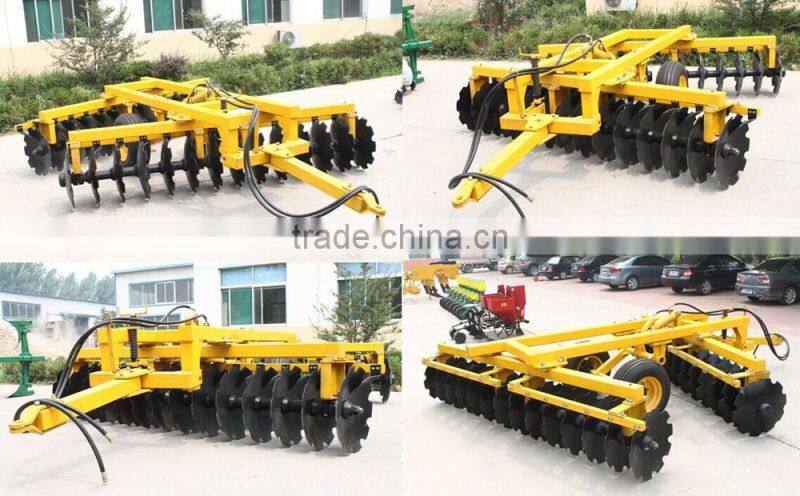

Product Show

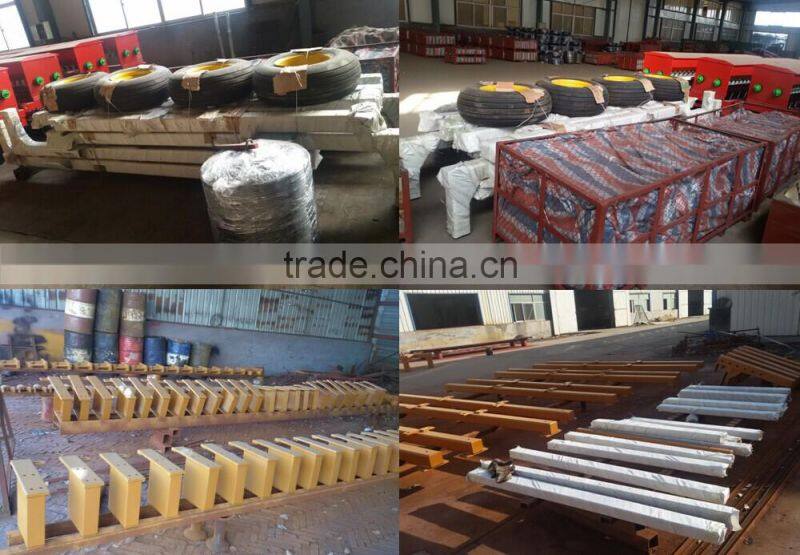

Packaging & Shipping

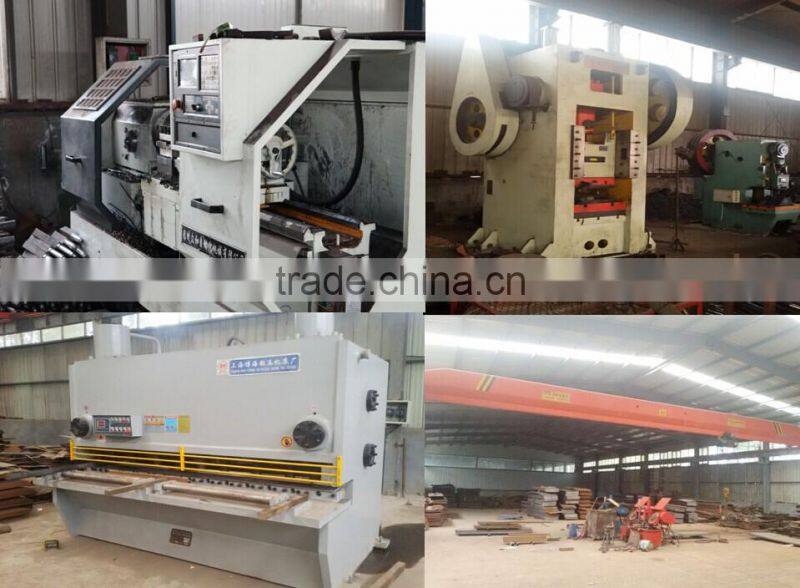

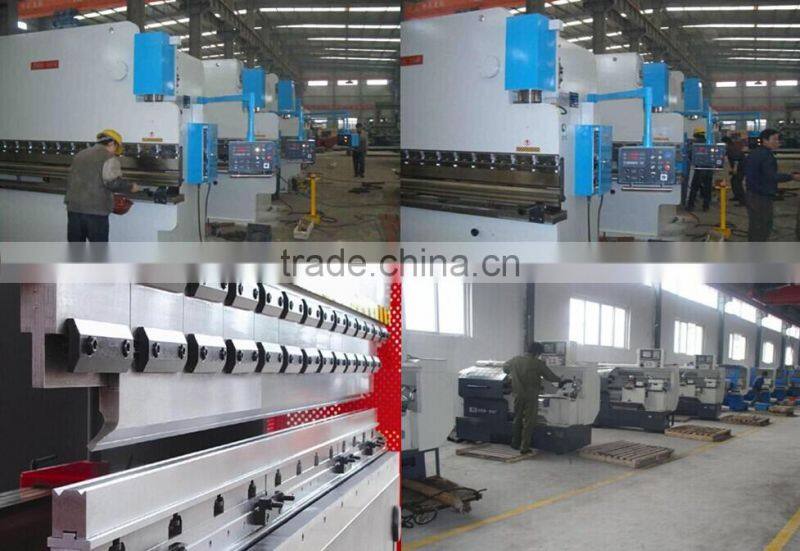

Company Information
Our Services
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
4.More information, please contact us
