Help CenterAtv Towed Trailer
US$ 500 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
OEM No.:
/
Max Payload:
3000-15000kg
Size:
/
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
OEM No.
/
Max Payload
3000-15000kg
Size
/
Place of Origin
Shandong, China
Brand Name
Dadi
Model Number
7CBX series
Specifications
atv towed trailerFixed load:1500-15000kg
Height of loading :820-1300 mm
Matched power:12-120 hp
atv towed trailer

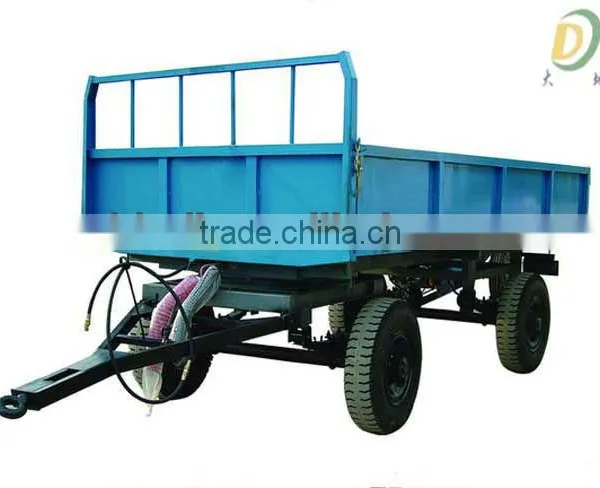

7CBX series Four Wheels Tipping Trailer is suitable to be used for plain area,mountain area,swamp and hills,farmland and highway transportation etc,different area environment,trailers of different forms match the tractors of different types.
On basis of fundamental type,we have developed the hydraulic pressure self-discharging trailer,improved efficiency.The trailer that our company produced are composed of steel entirely,the appearance is exquisitely,artistic and unaffected,the structure is rational and compacted,sturdy and durable,be able to adjust the height,the machines are advantageous and reliable,they are good assistant of mountain area friends.
Main specification:
| Type | 7CBX-1.5 | 7CBX-2.0 | 7CBX-2.5 | 7CBX-3.0 |
| Fixed load (kg) | 1500 | 2000 | 2500 | 3000 |
| Matched power (hp) | 12-25 | 12-30 | 15-30 | 20-35 |
| Overall Dimension L×W×H (cm) | 290×168×158 | 310×168×158 | 388×168×168 | 418×168×208 |
| Weight (kg) | 400 | 460 | 500 | 580 |
| Volume (L) | 828 | 830 | 2160 | 2580 |
| Height of loading (mm) | 820 | 950 | 950 | 1030 |
| Height of traction (mm) | 480 | 480 | 660 | 660 |
| Number of tyre | 2 | 2 | 2 | 2 |
| Distance between wheel (mm) | 1370 | 1370 | 1380 | 1380 |
| Distance between axis (mm) | - | - | - | - |
| Specification of tyre | 6.50-16-12 | 7.50-16-12 | 8.25-16-12 | 8.25-16-12 |
| Way of braking | mechanical or hydraulic braking | |||
| Angle of tipping | 45· | 45· | 45· | 45· |
| Direction of tipping | towards the back | |||
