OEM No.
/
Max Payload
3000-15000kg
Size
/
Place of Origin
Shandong, China
Brand Name
Dadi
Model Number
7CX series

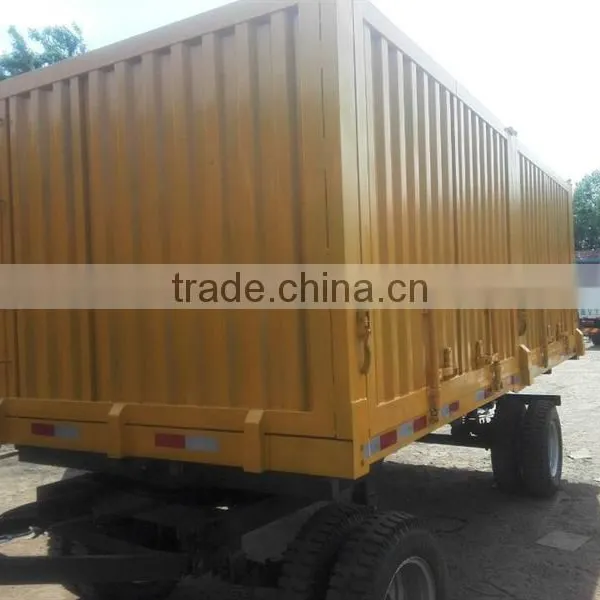

atv tow behind trailer with high quality
7CX series Four Wheels Tipping Trailer is suitable to be used for plain area,mountain area,swamp and hills,farmland and highway transportation etc,different area environment,trailers of different forms match the tractors of different types.
On basis of fundamental type,we have developed the hydraulic pressure self-discharging trailer,improved efficiency.The trailer that our company produced are composed of steel entirely,the appearance is exquisitely,artistic and unaffected,the structure is rational and compacted,sturdy and durable,be able to adjust the height,the machines are advantageous and reliable,they are good assistant of mountain area friends.
Main specification:
| Type | 7CX-3.0 | 7CX-4.0 | 7CX-5.0 | 7CX-6.0 | 7CX-7.0 | 7CX-9.0 | 7CX-15 |
| Fixed load (kg) | 3000 | 4000 | 5000 | 6000 | 7000 | 9000 | 15000 |
| Matched power (hp) | 25-50 | 30-50 | 50-72 | 50-80 | 50-80 | 50-90 | 64-120 |
| Overall Dimension L×W×H (cm) | 418×168×208 | 500×200×210 | 560×210×228 | 580×210×228 | 600×210×228 | 650×220×238 | 800×230×252 |
| Weight (kg) | 1450 | 1650 | 2100 | 2200 | 2450 | 2650 | 4000 |
| Volume (L) | 2580 | 3330 | 4000 | 4500 | 5300 | 6800 | 10500 |
| Height of loading (mm) | 1030 | 1200 | 1300 | 1200 | 1200 | 1200 | 1300 |
| Height of traction (mm) | 660 | 750 | 750 | 750 | 820 | 820 | 820 |
| No.of tyre | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Distance between wheel (mm) | 1380 | 1750 | 1880 | 1880 | 1880 | 1980 | 1980 |
| Distance between axis (mm) | 1640 | 1640 | 1640 | 1830 | 1830 | 1830 | 1830 |
| Specification of tyre | 6.50-16-12 | 7.50-16-12 | 8.25-16-12 | 9.00-16-14 | 9.00-20-16 | 9.00-20-16 | 9.00-20-16 |
| Way of braking | air or hydraulic braking | air braking or air cutting braking | |||||
| Angle of tipping | 45· | 45· | 45· | 45· | 45· | 45· | 45· |
| Direction of tipping | towards the left or right | ||||||
