Specifications
farm machine plowFurrow width :180-350 mm
Working width:360-1700 mm
No. of bottoms :2-7
Matched power: 12-140hp
farm machine plow

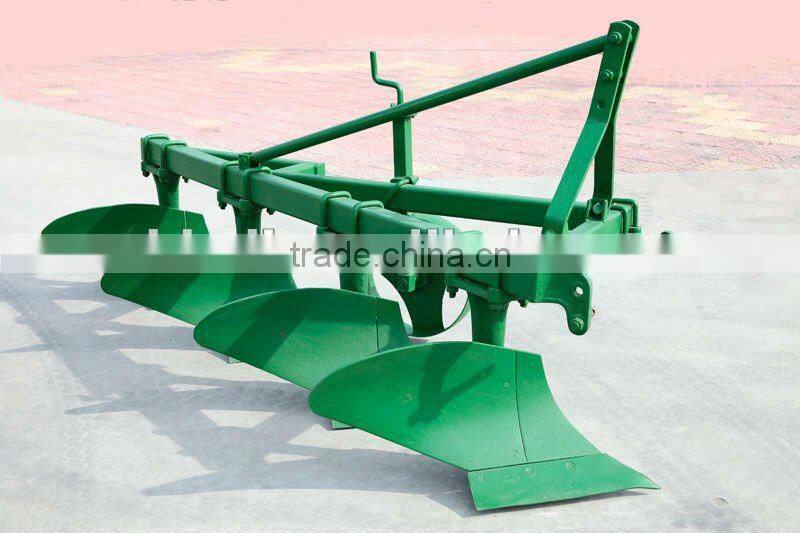

The Moldboard plows are full mounted and sui table for ploughing on the cultivated the land with the soil resistance no more than 1.2kg.The plow is simple in structure and light in weight.Suitable working scope is wide,after cultivation,the landsurface is leveling and the furrow is narrow and the soil is well crushed and turnde over.
Main Specifications:
| Type | 1L-218 | 1L-220A | 1L-220 | 1L-320 | 1L-420 | 1L-520 |
| No. of bottoms | 2 | 2 | 2 | 3 | 4 | 5 |
| Furrow width (cm) | 18 | 20 | ||||
| Total working width (cm) | 36 | 40 | 40 | 60 | 80 | 100 |
| Plowing depth (cm) | 14-16 | 14-22 | ||||
| Overall dimensions (L×W×H) (cm) | 124×70×96 | 180×82×104 | 240×100×104 | 296×120×104 | ||
| Weight(kg) | 50 | 72 | 80 | 115 | 150 | 215 |
| Productivity(ha/h) | 0.14-0.20 | 0.32-0.60 | ||||
| Trans. Clearance (cm) | ≥37 | |||||
| Linkage | three-point mounted | |||||
| Matched Power(kw) | 8.8-13.3 | 8.8-13.3 | 11-18.3 | 18.3-25.7 | 22-33 | 36.7-44 |
