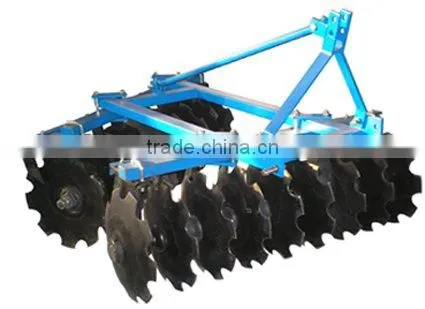

Hot Selling 1BQX-2.7 Mounted Light Disc Harrow for Wholesales
US$ 200 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
agricultural machinery
Use:
agriculture
Certification:
ISO9001:2000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China New 1BQX-1.7 Mounted Light Duty Disc Harrow Made in ChinaUS$ 200 - 3,000MOQ: 1 Set -
1BZ-3.0 Offset Heavy Disc HarrowUS$ 500 - 7,000MOQ: 1 Set
-
Multifunctional 1BQ-7.0 Hydraulic Light Duty Disc Harrow With Low PriceUS$ 200 - 3,000MOQ: 1 Set
-
2016 Hot Sale Hydraulic Heavy Disc HarrowUS$ 2,300 - 2,450MOQ: 1 Set
-
New Design Spare Parts for Disc Harrow With High Quality Disc Harrow Bearing Assembly Medium Mounted Disc HarrowUS$ 1,020 - 1,080MOQ: 1 Set
Type
agricultural machinery
Use
agriculture
Certification
ISO9001:2000
Place of Origin
Shandong, China
Brand Name
Dadi
Model Number
1BQX Series
Condition
New
Farm light disc harrow
The 1BQX series Disk Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.
The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BQX series suspension Light-duty Disc Harrow’s front and rear gangs are all assembled with scalloped disc, could be used with from 12HP to 80HP type tractors.
Main Specifications:
Model |
1BQX—1.1 |
1BQX—1.3 |
1BQX—1.5 |
1BQX—1.7 |
1BQX—1.9 |
1BQX—2.3 |
||
|
Name
|
The 12-blades light-duty harrow
|
The 14-blades light-duty harrow
|
The 16-blades light-duty harrow
|
The 18-blades light-duty harrow
|
The 20-blades light-duty harrow
|
The 24-blades light-duty harrow
|
||
(mm)Overall dimensions |
L |
1590 |
1590 |
1905 |
1985 |
2060 |
2650 |
|
W |
1230 |
1440 |
1600 |
1820 |
2000 |
2450 |
||
H |
830 |
830 |
1118 |
1118 |
1118 |
1280 |
||
|
(m)
Max. Working width
|
1.1 |
1.3 |
1.5 |
1.7 |
1.9 |
2.3 |
||
|
(cm)
Working depth
|
10~14 |
|||||||
No. Of disc |
12 |
14 |
16 |
18 |
20 |
24 |
||
|
(mm)
Dia of disc
|
460 |
|||||||
|
(mm)
Thickness of disc
|
3 |
|||||||
Weight(kg) |
200 |
220 |
240 |
260 |
300 |
500 |
||
|
(ha/h)
Productivity
|
0.7 |
0.84 |
0.97 |
1.1 |
1.25 |
1.5 |
||
Linkage |
three-point mounted |
|||||||
|
(mm)
Trans. Clearance
|
≥280 |
≥280 |
≥200 |
≥200 |
≥200 |
≥200 |
||
|
(HP)
Matched power
|
12~18 |
15~24 |
22~28 |
30~40 |
35~45 |
50~60 |
||
