Our products:

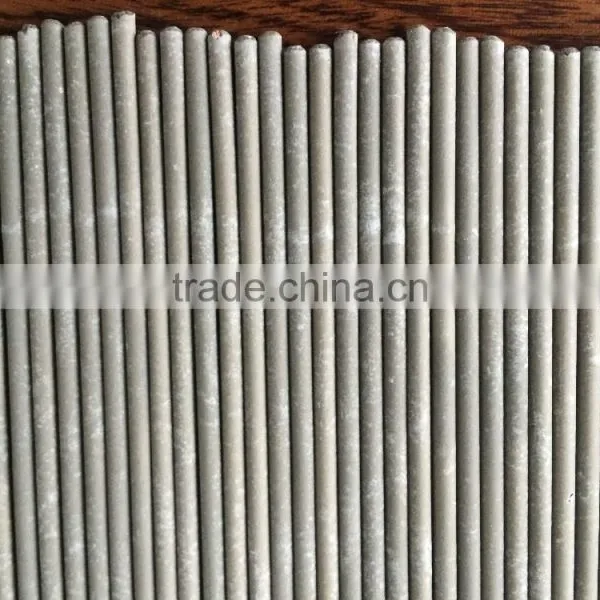

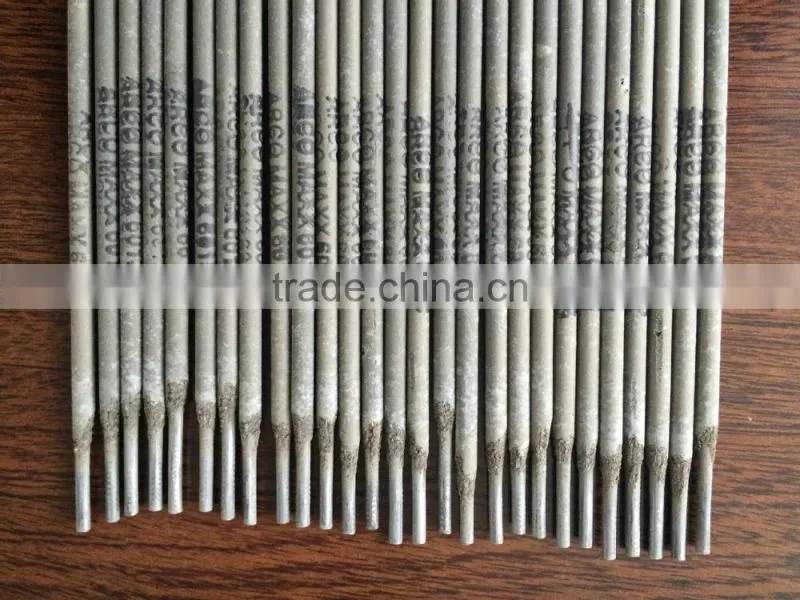

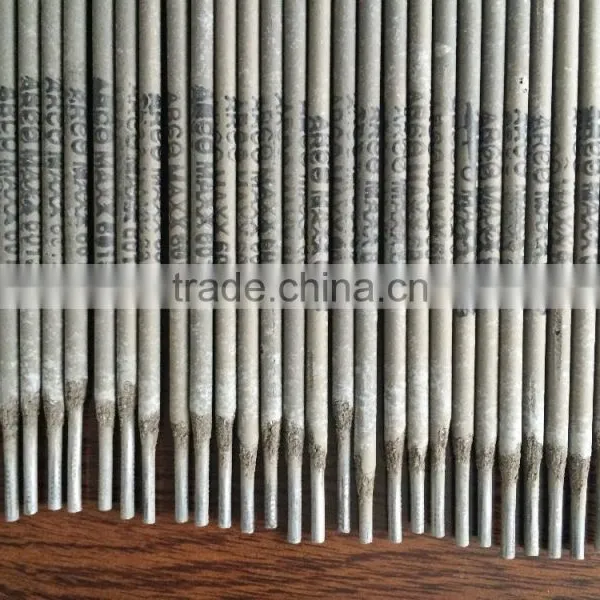

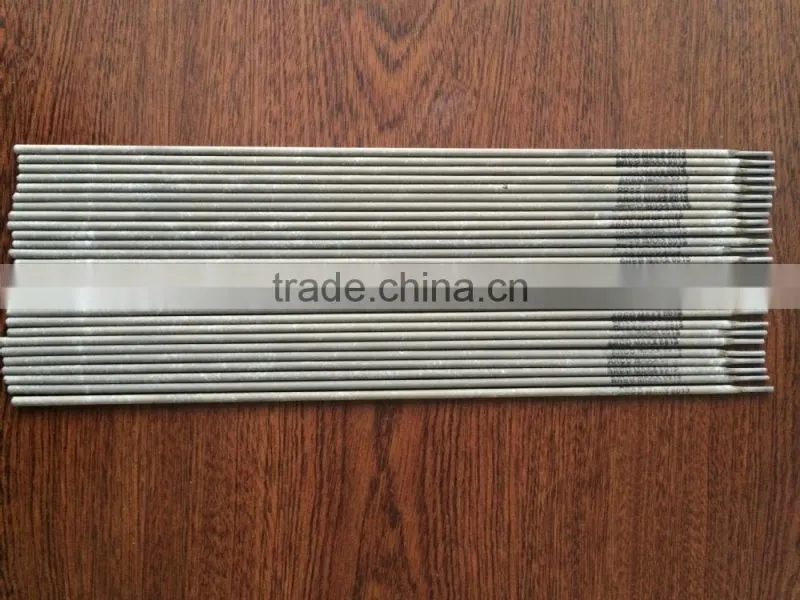

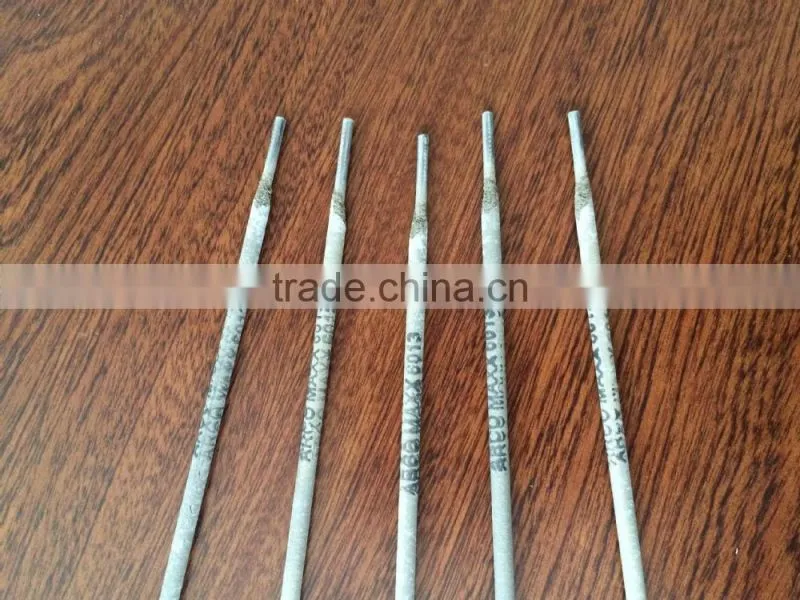

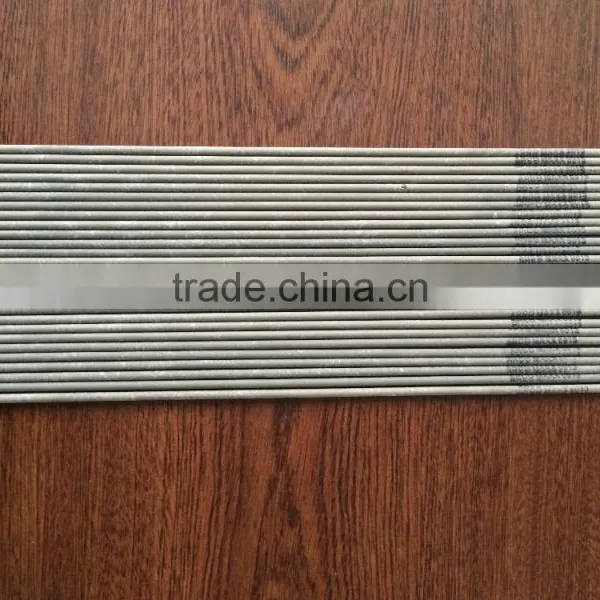

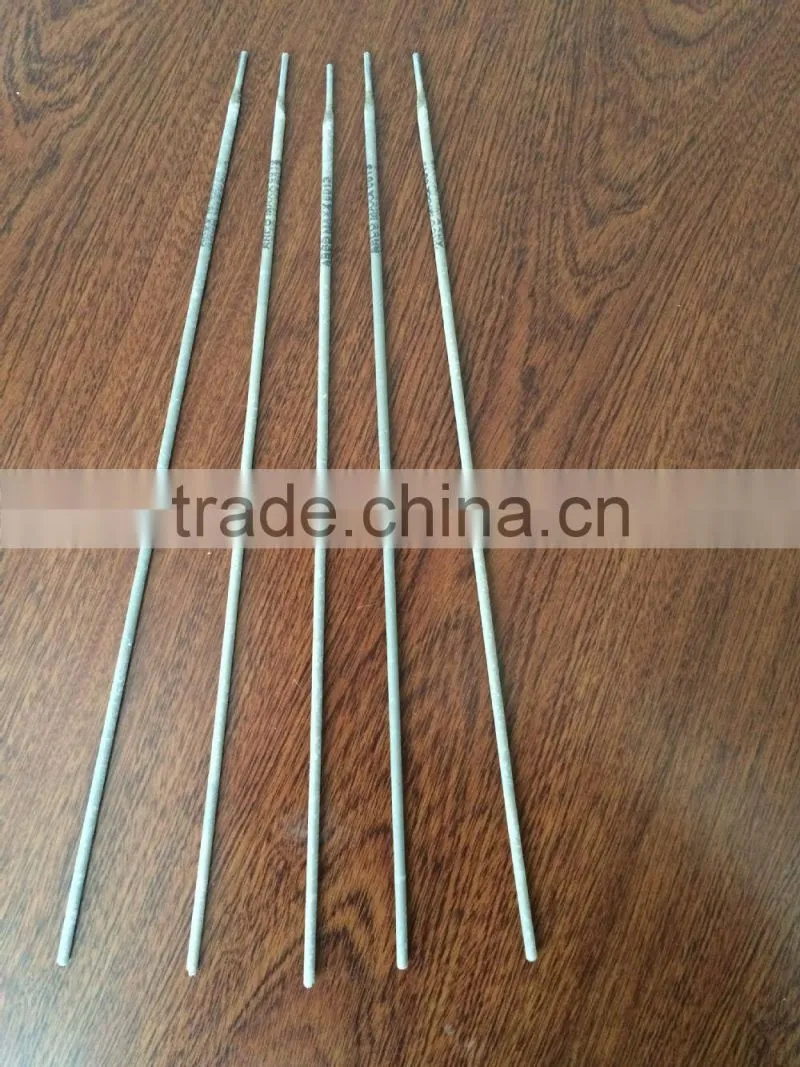

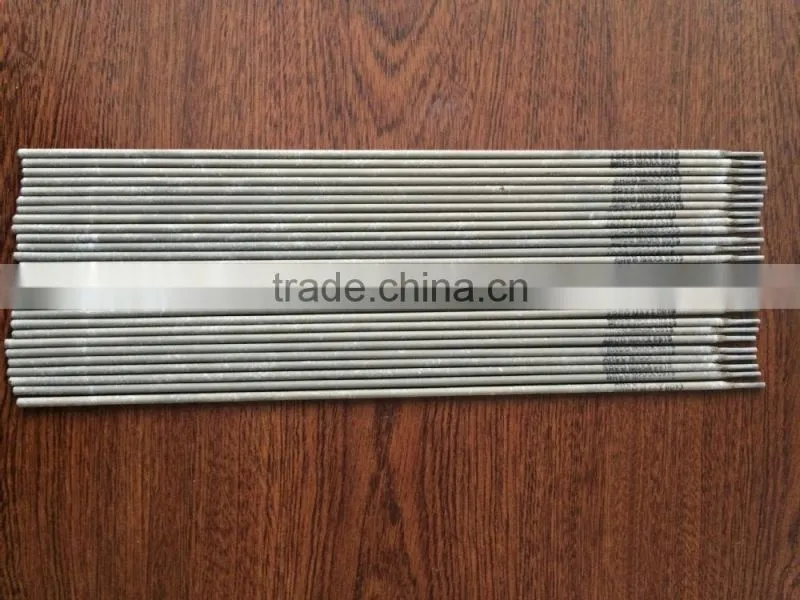

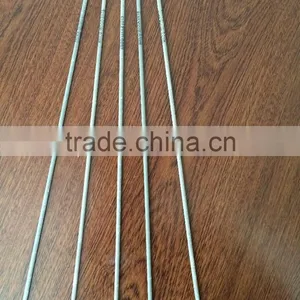

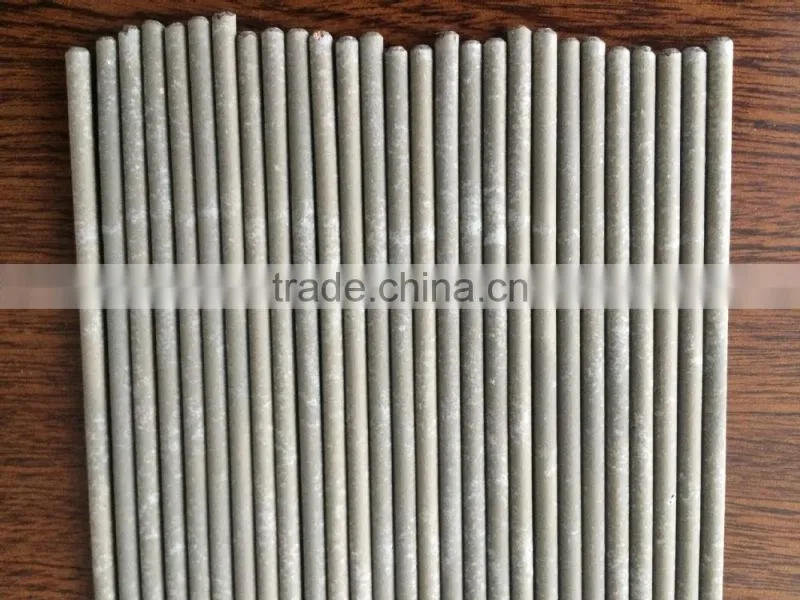

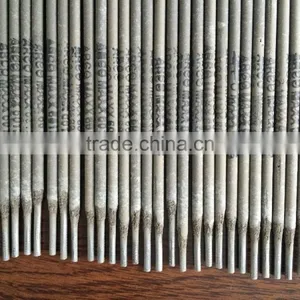

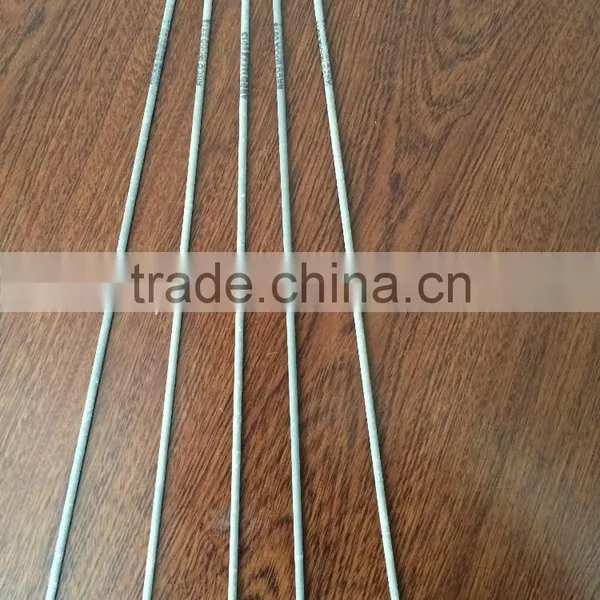

E6013 is the most popular mild steel welding rod with titania type coating. It is able to provide excellent welding performace and satisfactory weld can be obtained in all position welding.
Application:It is widely used in ordinary strength mild steel structures especially suitable for intermittent welding to sheet steel and small work pieces as well as cosmetic welding with smooth and shiny appearance.
Model Number: E6013
Material: carbon steel
Length: 300mm 350mm 400mm
Operating Current: DC
Welding Current: 50-200A
Operating Temperature: normal
Diameter: 2.0mm 2.5mm 3.2mm 4.0mm 5.0mm, 2.0mm2.5mm 3.2mm 4.0mm 5.0mm
Application: for welding low carbon steel light-gauge sheet structures
Product: carbon steel welding electrode e6013
Model: AWS E6013
MOQ: 1 ton
Approval: ABS CCS CCC ISO GL LR
| 1. Chemical components(%) | |||||||||
| C | Mn | Si | P | S | Ni | Cr | Mo | V | |
| Standard | ≤0.12 | 0.30-0.60 | ≤0.035 | ≤0.04 | ≤0.035 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
| An example | 0.079 | 0.38 | 0.21 | 0.024 | 0.021 | 0.05 | 0.01 | 0.005 | 0.01 |
| 2. Melting metal mechanical performance | |||||||||
| ReH(N/mm2) | Rm(N/mm2) | A(%) | KV2(J) | ||||||
| Standard | ≥430 | ≥330 | ≥17 | ≥47 | |||||
| An example | 485 | 380 | 28.5 | 86 | |||||
| 3. Reference current | |||||||
| Electrode diameter(mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 | ||
| Welding current(A) | 40~70 | 50~90 | 90~130 | 130~210 | 170~230 | ||
Our Advantages:
1): Durable, strict quality management and control, we are an ISO9001 enterprise.
2): High precision machining equipments guarantee good quality.
3): Smooth surface. No defects. Continuous skill improvements.
4): Quick delivery, competitive Chinese price. Low MOQ.
5): We have design team to develop new skill and new products to meet requirements of markets.
6): Good service, when customers have problems during use, we will surely try our best to solve them.
7): High professional employees have good emergency-dealing ability during production.
8): Surface treatment can be nickel, galvanized and painted, or based on the requirements of customers.
Our service for you:
1.Samples: Free samples
3. inspection: And inspection accepted, like CIQ, SGS, COC,etc
4.Technical Support: Anytime
Packaging & Delivery
Packaging Details: |
2.0mm * 300mm (Packing: 2.5kg/inner box, 8 boxes/carton=20kg) 2.5mm * 300mm (Packing: 2.5kg/inner box, 8 boxes/carton=20kg) 3.2mm * 350mm (Packing: 5.0kg/inner box, 4 boxes/carton=20kg) 4.0mm * 400mm (Packing: 5.0kg/inner box, 4 boxes/carton=20kg) |
Delivery Detail: |
within 15 days after receiving the pre-payment |
