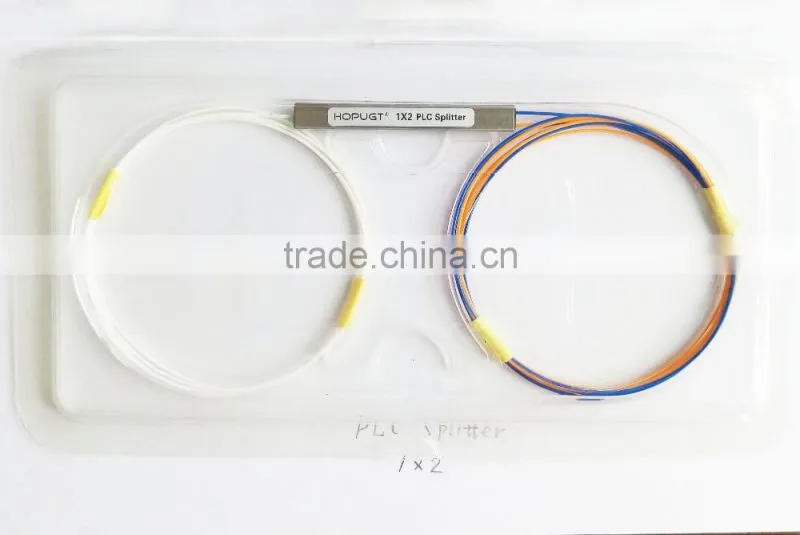

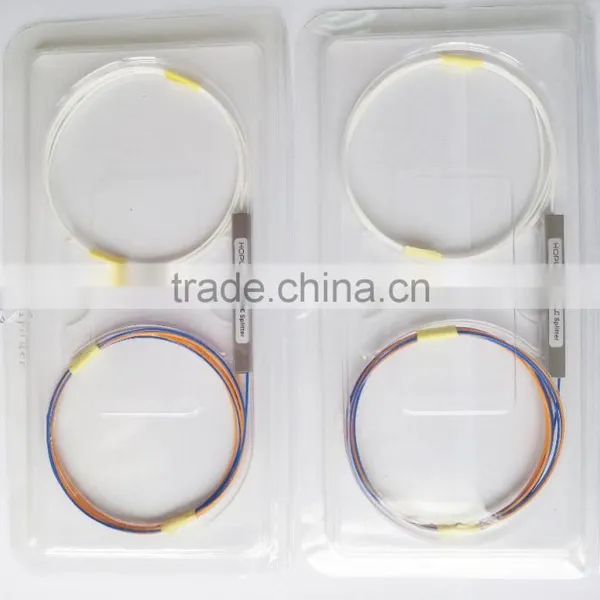

OPTICAL FIBER SPLITTER 1X2
PLC Splitter (PON Splitter)
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office(CO) to multiple premise locations.
Applications
1.FTTH Network
2.Lan and CATV system
3.Data Communications
4.Optical Signal Distribution
5.DWDM and CWDM Systems
6.Passive Optical Networks (PON)
Features
1.1xN and 2XN are available
2.OEM Service available
3.High Uniformity
4.Low insertion Loss&PDL
5.Silica Technology
6.Silica FA Technology
Various Packed Types for Option (PLC Splitter types):
Blockless PLC Splitter
Fan-Out PLC Splitter
ABS PLC Splitter
LGX PLC Splitter
Mini Plug-in Type PLC Splitter
1U Rack Mount PLC Splitter
Tray Type PLC Splitter
Optical Performance 1xN Type(Standard)
Specification |
Unit |
1x2 |
1x3 |
1x4 |
1x6 |
1x8 |
1x12 |
1x16 |
1x64 |
|||
|
Insertion Loss Max |
dB |
3.8 |
6.0 |
7.0 |
9.2 |
10.2 |
12.4 |
13.5 |
20.2 | |||
Uniformity |
dB |
0.5 |
0.6 |
0.6 |
0.8 |
0.7 |
1.0 |
0.8 |
1.5 | |||
PDL |
dB |
0.15 |
0.25 |
0.20 |
0.25 |
0.20 |
0.25 |
0.25 |
0.30 | |||
Return Loss |
dB |
>55 |
||||||||||
Directivity |
dB |
>55 |
||||||||||
Working Wavelength |
nm |
1260~1650 |
||||||||||
Measuring Wavelength |
nm |
1310~1550 |
||||||||||
Storage Temperature |
°c |
-40~+85 |
||||||||||
Operating Temperature |
°c |
-40~+85 |
||||||||||
PLC Module Type DIMENSION
Dimension |
1x2 |
1x3 |
1x4 |
1x6 |
1x8 |
1x64 |
Ribbon |
60x7x4 |
60x7x4 |
60x7x4 |
60x7x4 |
60x7x4 |
100x40x6 |
Blockless |
60x7x4 |
60x7x4 |
60x7x4 |
60x7x4 |
60x7x4 |
100x40x6 |
Fan-out |
40x4x4 |
40x4x4 |
40x4x4 |
40x4x4 |
40x4x4 |
47x4x4 |
ABS |
90x20x10 |
100x80x10 |
100x80x10 |
100x80x10 |
100x80x10 |
140x115x10 |

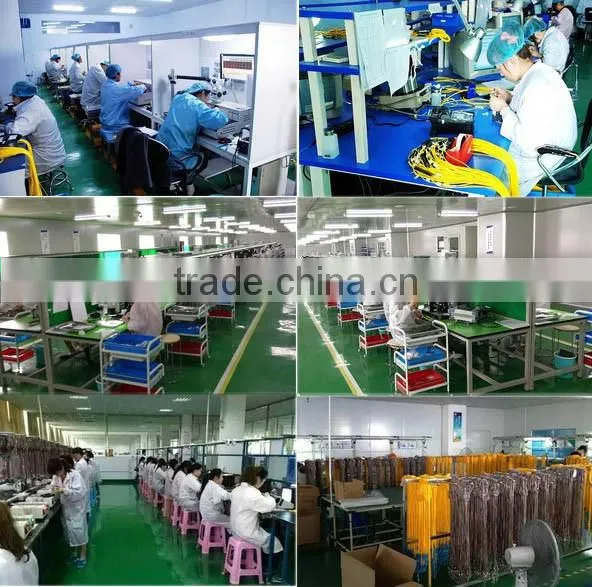

FACTORY INTRODUCTION
PROFILE
Luoyang Hopu Optical Manufacturing Co.,Ltd was established in 2010 and it is a professional high-technology enterprise,specializing in research,manufacturing and sales of optical fiber communications passive components. The company mainly produces optical fiber activities connector,optical fiber splitter,FWDM.Sales are front--end equipment of cable television equipment,network equipment and passive optical network(EPON)system integration.Customers around the world are provided by professional OEM/ODM service and high-quality,high technology,cost-effective products.
PRODUCT RANGE
Fiber Patch Cord(FC/SC/LC/ST),Fiber Optic Coupler:Steel Tube/ABS Standard Single Window/Single-mode Coupler(1*N) Standard Dual Window/Single-mode Coupler (1*N),PLC Splitter(Pipe/Module Type),FWDM,Fiber Media Converter Single fiber/Dual fiber,Optical Fiber Testing Instruments:Optical Power Meter,Optical Light Stheirce Visual Fault Locator,Fiber Adapter,Hybrid Adapter,Shutter Adapter,Fiber Optical Fusion Splicer.
