LT454 4WD 45HP FARM WHEEL TRACTOR

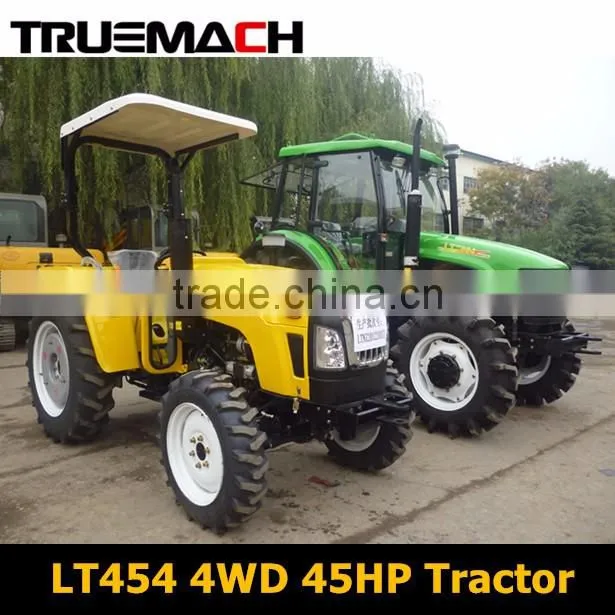

1. Image
2. Main Features
-Adopt Xin’chai diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
-Dual-stage clutch,10 inches, high transmission capacity, reliable, comfortable manipulation;
-Gearbox using 4 × 3(1 +1) engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable match between the gears, and have high efficiency;
-Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet the different operation requirements;
-Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
-Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
-Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
-Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
-New streamlined appearance, generous, modern, fashion;
-Control levers can be mounted at side as optional, more convenient and comfortable.
3. Main Technical Specifications
Model LT454 | |
Drive Type |
4-wheel-drive (4x4) |
Engine | |
Diesel model |
Chinese Xin’chai A495BT |
Type |
In-line, 4-cylinder, water-cooled, 4-stroke, direct injection, natural aspiration |
Rated power/speed |
33.1kW/45hp |
Rated speed |
2400 r/min |
Weight | |
Min. using mass |
2080kg(without cab) |
Front counterweight |
Max.104kg |
Rear counterweight |
Max.220kg |
Parameters | |
Min. turning radius |
3.8m/ 4.3m (unilatera brake/ not unilateral brake) |
Gearbox gear numbers |
12F+12R |
Speed range |
Forward: 2.46-34.02 km/h; Reverse: 2.15-29.82 km/h |
Travel System | |
Front wheel spec. |
8.3-20 |
Rear wheel spec. |
12.4-28 |
Overall Dimensions | |
Min. Ground clearance |
315mm |
Wheelbase |
1990mm |
Front wheel tread |
1265mm |
Rear wheel tread |
1200-1500mm (common 1300mm) |
Overall dimension (L*W*H) |
3770*1620*2130mm |
Transmission System | |
Clutch Type |
Dry-type, single disc, 10-inch dual-stage |
Gear shifting type |
Mesh Sleeve shift |
Gear type |
4x3(1+1) |
Central transmission |
Spiral bevel gear(front axle) Spiral bevel gear (rear axle) |
Differential |
Close-style, 2 bevel planet gears (front axle) Close-style, 2 bevel planet gears (rear axle) |
Final transmission |
Dual-stage straight teeth bevel gear (front axle) Single-stage built-in planetary gear (rear axle) |
Transfer box |
Straight teeth spur gear (4-wheel-drive) |
Steering & Brake System | |
Steering Type |
Hydraulic front wheels steering |
Service brake |
Dual disk, oil-bath brake |
Parking brake |
Mechanical hand brake |
Working System | |
Lifter Type |
Split-style |
Linkage category |
Rear 3-point linkage, I-category |
Max. lifting force |
7.5kN |
Control mode of ploughing |
Height adjustable, floating control |
Max. Traction force |
10.5 kN |
PTO Type |
Rear-mounted, semi-independent type |
PTO Power |
more than 28.1KW |
PTO Speed |
540/1000 (6-spline) |
