Product Details
| Place of Origin | Fujian, China | Brand Name | Golden Attachment | |
| Model Number | GA35D-HFB-01B |
Product Description

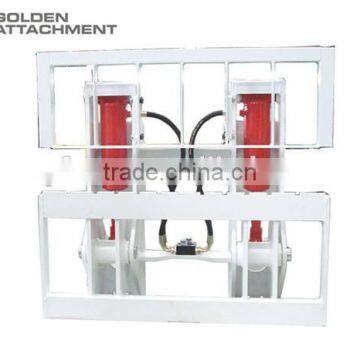

Hinged Forks
Made in our Golden Attachment Factory
Forklift hinged forks are widely used for wood industry, architecture & construction, metal industry, livestock industry.
Designed primarily for handling lumber, the hinged fork can also be conveniently used for handling palletized loads.
The optional bucket allows the forklift to handle bulk materials, such as coal, gravel and sand. With features like these, this attachment can be used in applications ranging from lumber yards to shipping terminals.

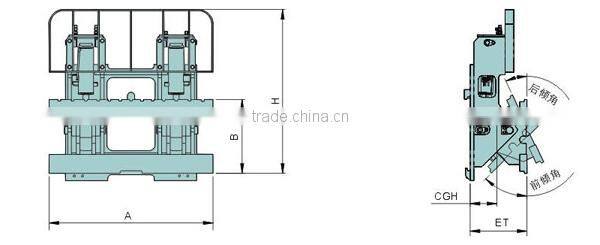

Capacity (kg/mm) | Model | Fork | Frame Width (mm) | Truck Mounting Class | Hinged Fork Mounting Class | Weight (kg) | Effective Thickness (mm) | Horizontal Center of Gravity (mm) | Overall Height (mm) | Tilt Forward Tilt Backward |
| 2500/500 | GA25D-HFB-01A | W/O | 1010 | 2 | 2 | 250 | 340 | 145 | 980 | 45°/25° |
| 2500/500 | GA25D-HFB-01B | W/O | 1070 | 3 | 3 | 280 | 340 | 150 | 1030 | 45°/25° |
| 3500/500 | GA35D-HFB-01B | W/O | 1070 | 3 | 3 | 370 | 340 | 160 | 1095 | 45°/25° |
| 3500/500 | GA35D-HFB-01C | W/O | 1200 | 4 | 4 | 420 | 340 | 170 | 1195 | 45°/25° |
| 4500/500 | GA45D-HFB-01C | W/O | 1530 | 4 | 3 | 700 | 425 | 195 | 1388 | 45°/25° |
| 6000/500 | GA60D-HFB-01C | 1200 | 1820 | 4 | customized | 1000 | 425 | 195 | 1388 | 45°/25° |

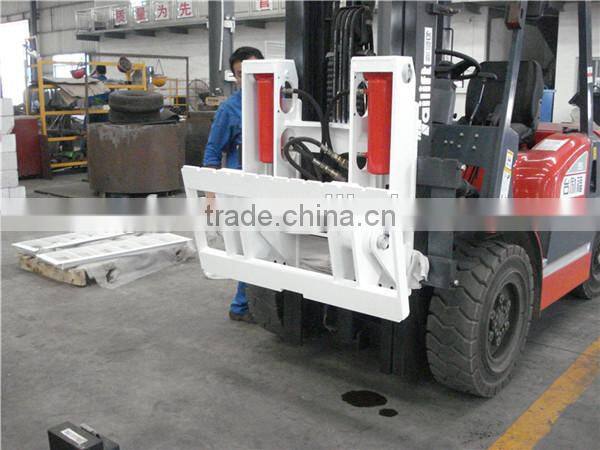

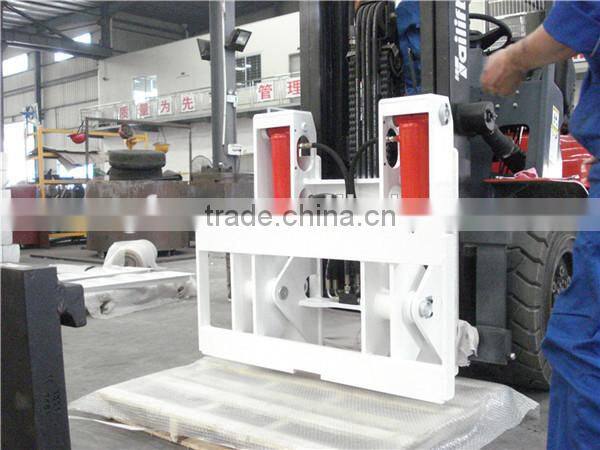

Double Cylinders
100mm Beam Wide
45° Forward
25° Backward
1070mm Frame width & 1095 Overall height

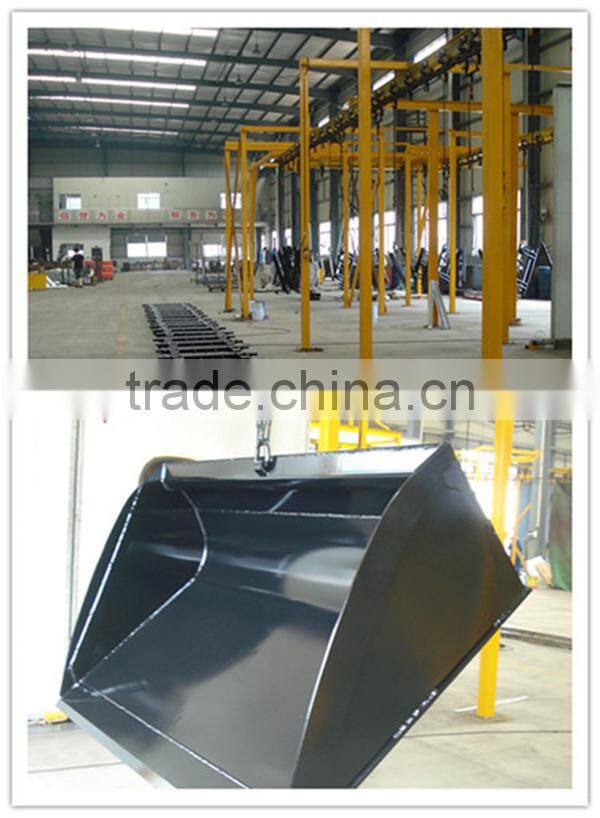

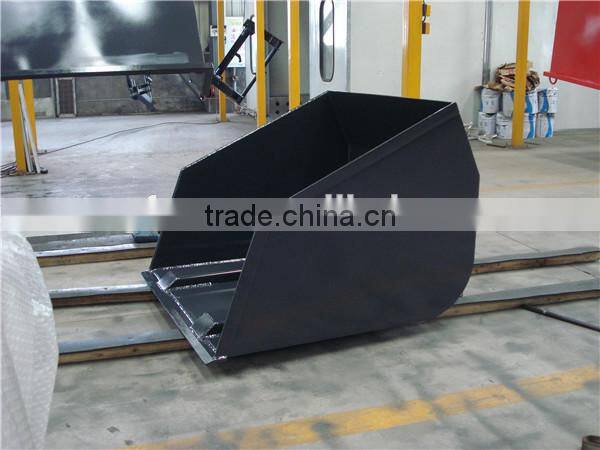

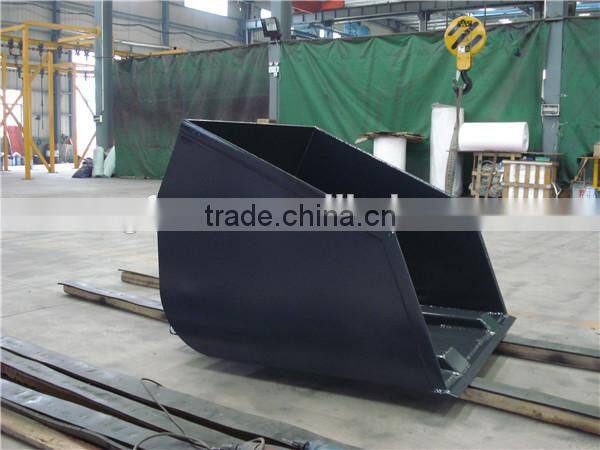

Option Bucket
1100mm width, 1500mm width or customized
Hello and welcome to Golden Attachment, where you'll find a diverse range of forklift attachments, agriculture machinery attachments, construction machinery attachments and some material handling solutions. With 4 years dedicated manufacturing experience across the attachment field, we pride ourselves on providing top quality products at a highly-competitive price. We're proud to provide first-class customer service, delivered by a friendly and efficient team, who are ready and waiting to offer expert technical help and guidance.

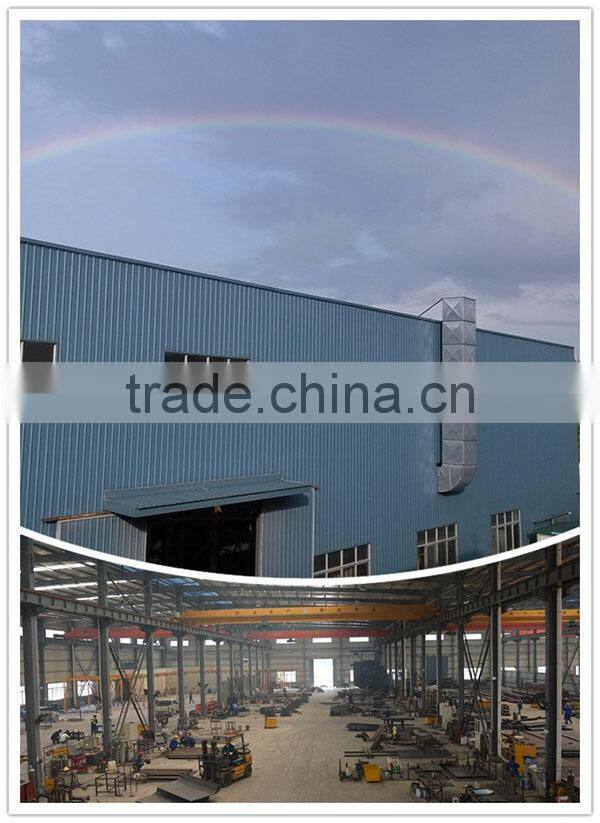

Golden Attachment Factory

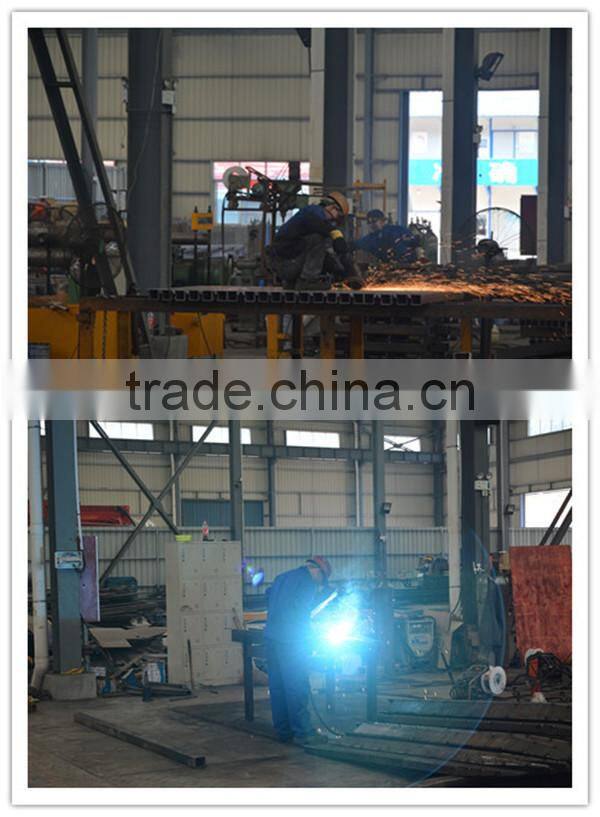

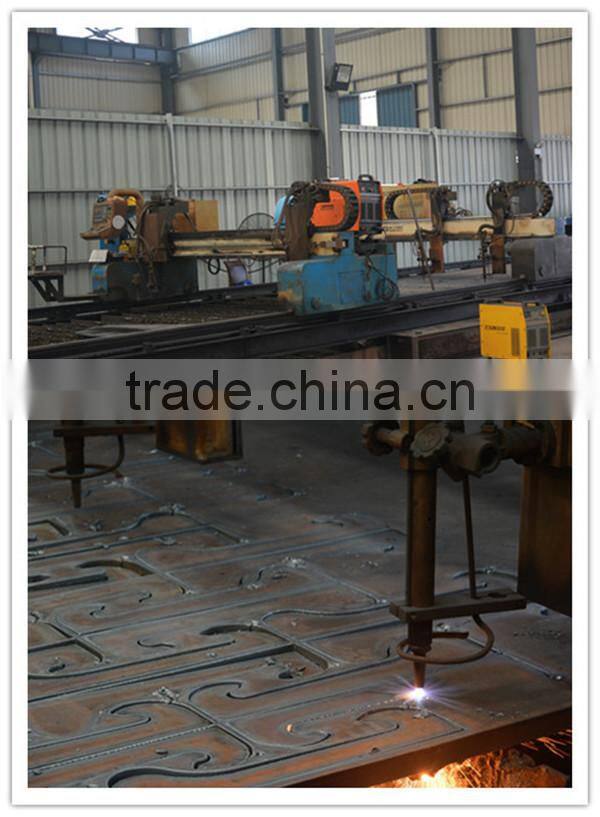

Fire Cutting
Our Welding Team
Painting Line

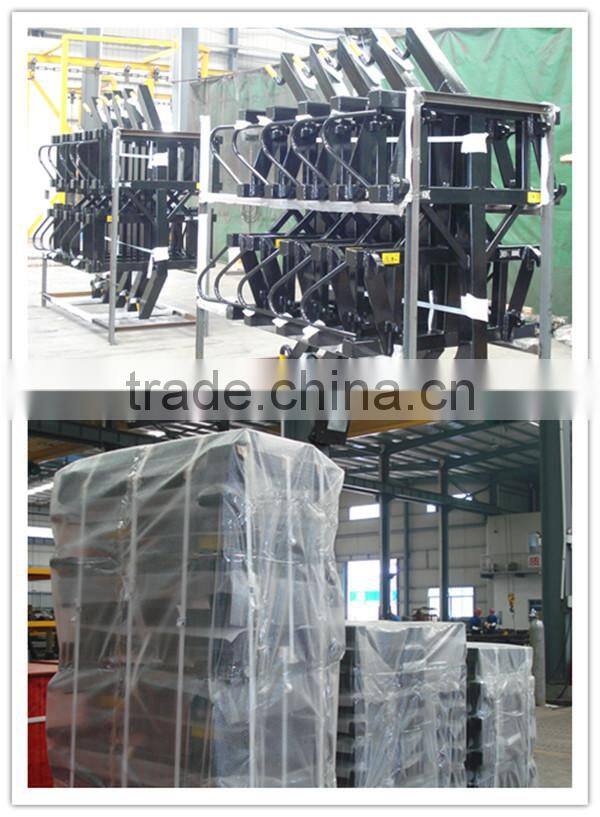

Standard Export Packaging
