Home > Products > Hydraulic Forklift Attachments > Block Clamp of Forklift Lifting Equipment
Block Clamp of Forklift Lifting Equipment
- Xiamen
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | GA | |
| Model Number | GA30D -CKS-01/02/03/04/A/B Block Clamp in Forklift Lifting Equipment |
Product Description

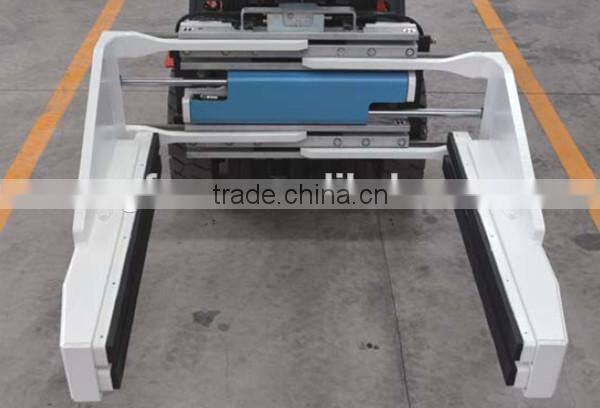

Block Clamp of Forklift Lifting Equipment
The forklift steel block clamp enable brick clamp handle and stack all kinds of solid, regular cubic goods and products safely, efficiently, and ecnomicaly without any damage. Brick Clamp in Forklifts specialzing in transpoting concreat block, cement blocks, hollow block, stone slab, etc. Enamel paint finish.
Block Clamp in Forklift Lifting Equipment :
1. Rational design, high structural strength and durability ensure the safe handling operation and long service life.
. Proven durable T-beam arm aluminum frame construction.
. Superior arm-slide bearing for extended service life.
2. Cylinder protection to prevent damage.
3 . Regenerative hydraulic valving for optimal arm speed.
4. Durable contact pads, reliable clamping.
5. Excellent visibility.
Block Clamp of Forklift Lifting Equipment :
*Custom opening ranges
*Custom pad sizes
*Load backrests

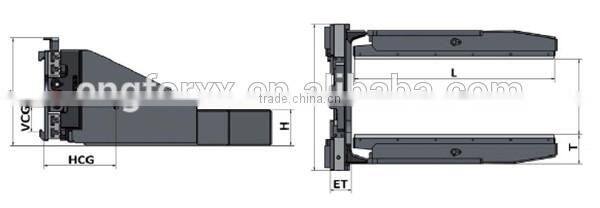

| Capacity@ Load Center ( kg@mm ) | Catalog Order N0. | Mounting Class | Opening Range(mm) | Arm Height(mm) | Arm Length(mm) | Arm Thickness(mm) | Frame Width | Overall Height(mm) | Vertical Center of Gravity(mm) | Weight(kg) | Effective Thickness(mm) | Horizontal Center of Gravity(mm) |
| 2700@500 | GA30D-CKS-01A | II | 290-1610 | 128 | 1100 | 202 | 1016 | 710 | 220 | 500 | 145 | 220 |
| 2700@500 | GA30D-CKS-01B | III | 290-1610 | 128 | 1100 | 202 | 1016 | 710 | 220 | 500 | 152 | 220 |
| 2700@500 | GA30D-CKS-02A | II | 290-1610 | 242 | 1100 | 202 | 1016 | 710 | 220 | 550 | 145 | 220 |
| 2700@500 | GA30D-CKS-02B | III | 290-1610 | 242 | 1100 | 202 | 1016 | 710 | 220 | 550 | 152 | 220 |
| 2700@500 | GA30D-CKS-03A | II | 290-1610 | 128 | 1100 | 202 | 1016 | 710 | 220 | 490 | 145 | 211 |
| 2700@500 | GA30D-CKS-03B | III | 290-1610 | 128 | 1100 | 202 | 1016 | 710 | 220 | 490 | 152 | 220 |
...

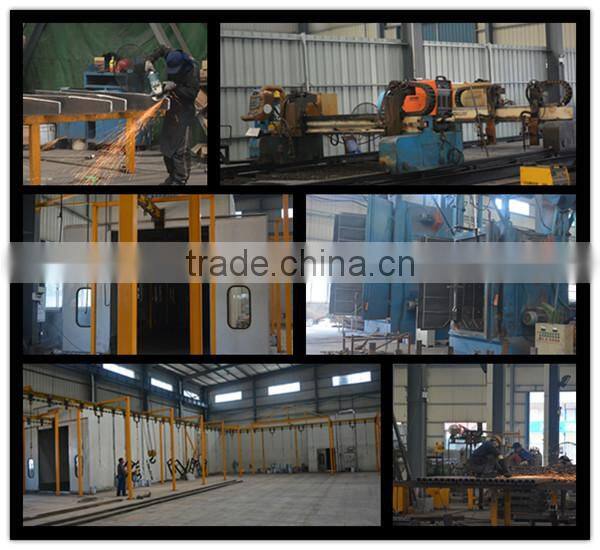

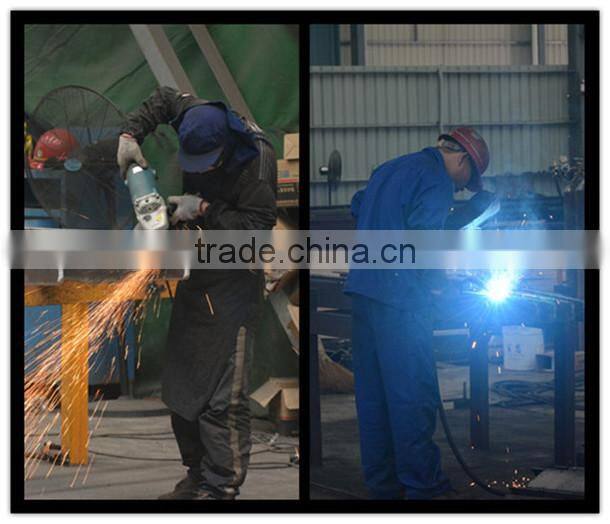

Workshop
