China Supplier MP-15 instrument for diameter measurement
- 1000 Unit / Units per Month
- Qingdao Tianjin Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Internal gear 40cr 41A0076 for Liugong loader parts ,axle parts
- Liugong Wheel loader parts Liugong spare parts SP104817 Gland
- Liugong Spare parts Castle nut 03B0050 Standard parts for Liugong Wheel loader parts
- Conical roller bearing 23B0019 Standard parts for Liugong Wheel loader parts
- Liugong spare parts flasher relay 31B0005 fpr Liugong Wheel loader parts
- Air tank assembly ,pressure controller 13C0015 for Liugong Wheel loader parts
Product Details
Place of Origin: | Henan, China | Brand Name: | DFFILTRI | Model Number: | 15KABetaX |
Product Description

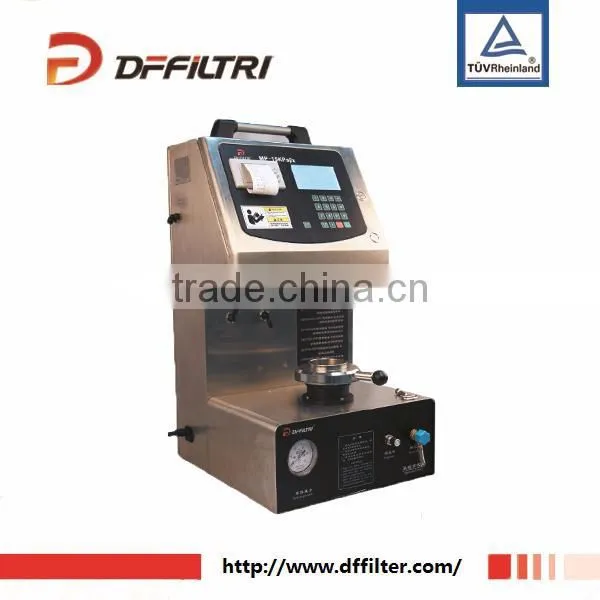

China Supplier MP-15 instrument for diameter measurement
Procuct description
1)Test Objects
♦ Oil filter Material and air filter material.
♦ Oil filter and air filter element .
♦ Various industries all sheet filter materials and filter elements.
2)Test Items
♦ Integrity (test the filtration material without damage,filter element joint,
End cap oil contamination defects).
♦ The first bubble point pressure, maximum pore size of the filter medium.
♦ Group bubble point pressure, average pore size of the filter medium.
♦ Filtration rating (More than β20 corresponds to the reference value).
Test Bench Options
♦ Thickness of the filter material over (0.1-3) mm, special jig, the test
medium tank can be custom made.
The Applications
♦ R & D of the new product and for Quality control department.
♦ Filter companies and users,testing center and Quality inspection and
supervision institutions.
Executive Standard
♦ ISO 2942:2001 Hydraulic fluid power filter elements-Verification of
fabrication integrity.
♦ GB/T 14041.1-1993 National standard yydraulic fluid power-Filter
elements-Verification of fabrication integrity.
♦ ISO 4003:1990 Permeable sintered metal materials - Determination
of bubble test pore size.
♦ GB/T 5250-1993 National standard verification of permeability of the
permeable sinter metallic materials.
♦ QC/T 794-2007 Industry standards internal combustion engine industrial
filter paper.
♦ CFS/T 8002-2011 Industry standards oil filter material-Aperture test method.
Type Selection and Technical Data
Max Pressure | 14.99kpa |
Pore Size | (5-120)μm |
Thickness of Media | (0.1-3)mm (over thickness can be customized) |
Clip Outer Diameter | ψ(88±1)mm |
Clip Inner Diameter | ψ(72±0.2)mm |
Height Over Medium | (12.5±0.2)mm |
Test Medium | The isopropyl alcohol, industrial ethanol and other experimental fluid in standard |
Voltage | 220v |
Power | 40w |
Net Weight | 35.5kg |
Dimension | 440mm*330mm*730mm (length*width*height) |
Note: Isopropanol infiltration angle is zero, easy for calculation, and
surface tension stability
MP Integrity Test Bench Serials Column List
Model | MP-15Kβx | MP-30Kβx | MP-50Kβ |
Executive Standard | ISO2942 ISO4003 CFS/T8002-XXXX | ||
Pressure Range (KPa) | 15 | 30 | 50 |
Min. Pore Size (μm) | 5 | 2.8 | 1.7 |
Power (kw) | 0.1 | 0.15 | 0.3 |
Voltage (v) | 220 | ||
Net Weight (kg) | 35.5 | ||
Boundary dimension | 440*330*730 |
Product Characteristics
1. convenient to install the filter element or media.
2. Filter element and material test state conversion is convenient
(by adjusting three-way valve wrench).
3. Air pump installed,as long as 220V voltage socket is provided.
4. Small size, convenient to move, office table can also be used(Pay
attention to position to avoid resonance).
5. Temperature compensation (The test result is not affected by the
influence of the temperature change).
6. The test data continuously monitored (LCD screen), Test results
intuitive and easy to understand.
7. Printer installed.
8. Test results can be long-term preservation for convenient query
(200 pieces results max.).
9. With 6 kinds of filter material of filtering precision (Detection of computing).
About Us
♦The testing centre can take 7 tests of hydraulic filter performance evaluation,
they are as follows:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
