Specifications
XNJ Tank Mounted Suction Filter1.Nominal flow rate:25~1000L/min
2.simple structure, convenient installation
Golden Supplier -XNJ Tank Mounted Suction Filter/ Hydraulic Oil Suction Filter
Product Introduction
XNJ series tank mounted suction filters can be installed on the suction line of hydraulic
system, which have these characteristics:
simple structure, convenient installation, easy to clean and replace filter element.
Product Characteristics
Filter basic construction
XNJ series filters consist of flange plate and filter element etc., flange plate and filter
element are connected with connecting rod,
the structure design includes bypass valve and clogging indicator of filter element, so as
to consist of the normal operation of the pump.
2.1 Housing material
Flange plate: Carbon structural steel plate
2.2 Seals
Perbunan (= NBR); Viton (= FPM) (Customizable)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
ZKF- II Clogging indicator; ZS-V Clogging indicator
2.5 Type of connection
Flanged connection

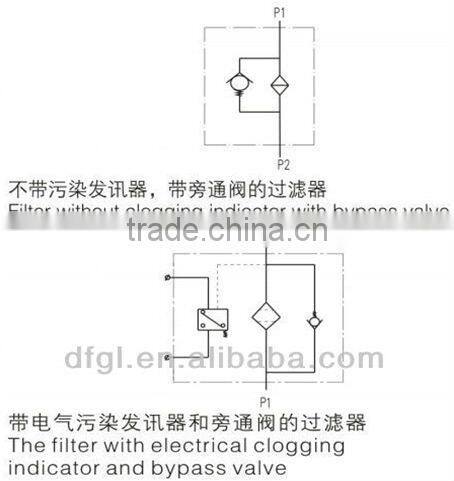

2.6 Symbols

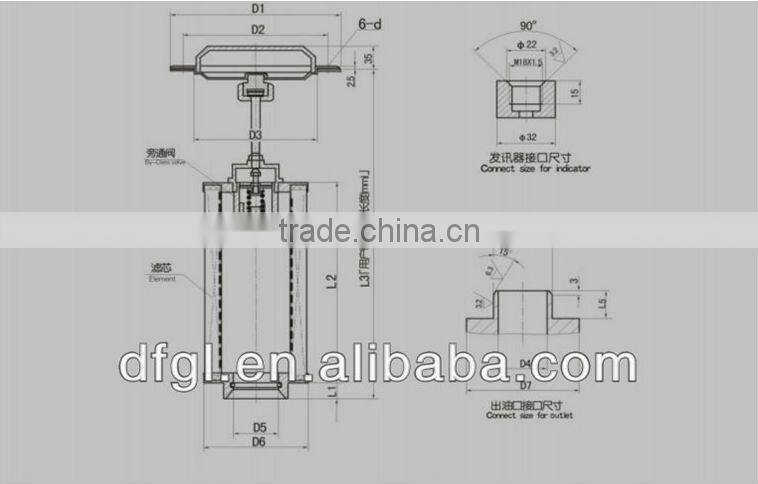

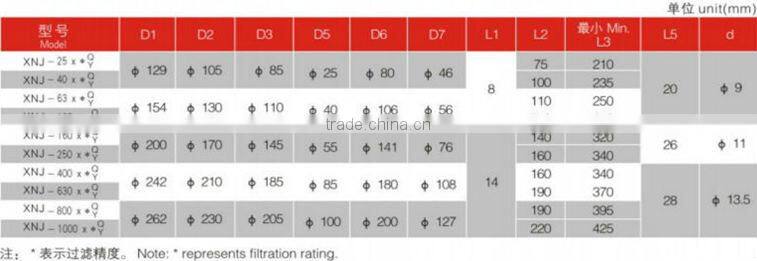

Mounting size
we own world advanced production equipment and produce high-quality products of
international standard with brand-new industrial conceptand strong technical forces.
We firmly believe we will become your trusted partner.
Company Honor
♦ China's Quality Recognized Top Ten Well-known Filter Brand
♦Testing CenterThe Committee of Filtration & Separation of China Technology Market Association
♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation

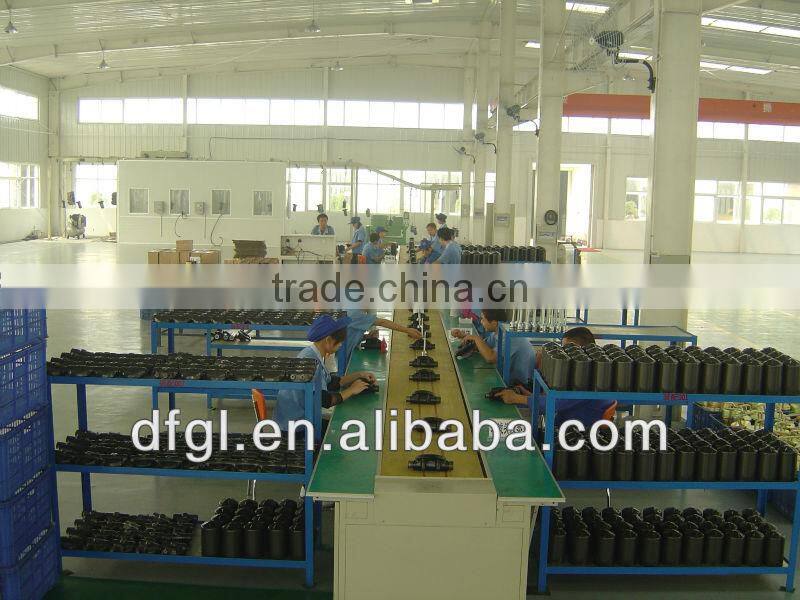

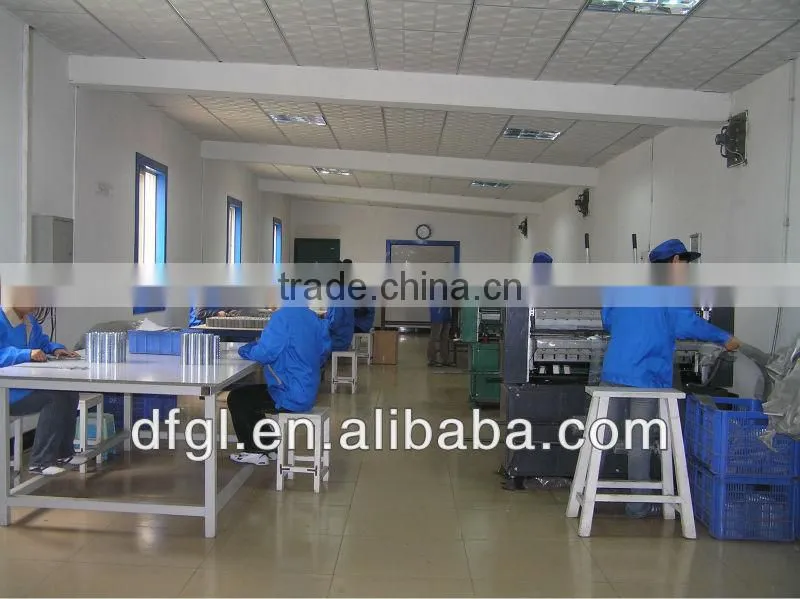

production Field
We use high tech support materials.High tech support materials can not only play the role
of support filter, material and avoiding compressive deformation,but also protect the
materials from being damaged during processing.
Customers visit
Why Our Hydraulic Filters?
Complete range
Superb absorption
Durable
Reliable
Economical
Advantage:
- Manufacturer
- Competitive price can be offered
- Optimum paper folding
- Large dust holding capacity
- Good temperature resistance
- Good anti-humidity performance
- No distortion of pleats
- Environmental Friendly
- OEM & ODM Customized is accepted
- On-time delivery
- Durable and reliable
- Ecnomical,practical,and easy to install
