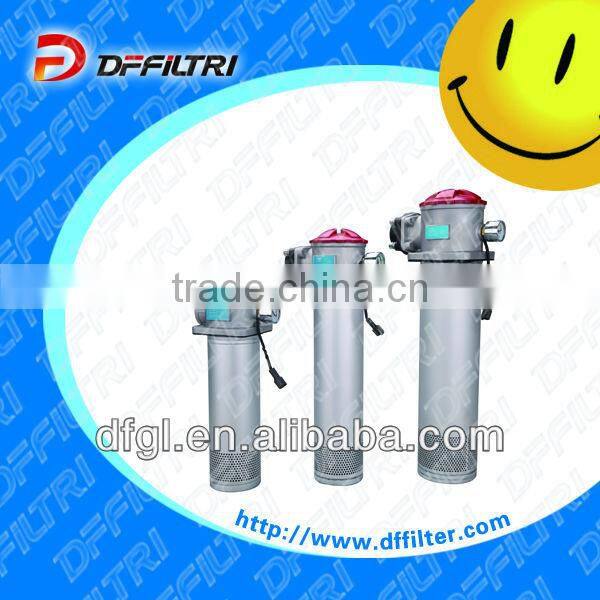

DFFILTRI Exported Glass Fiber Modern Design RFA-160 Industrial Return Oil Filter

DFFILTRI Exported Glass Fiber Modern Design RFA-160 Industrial Return Oil Filter thumbnail-1
DFFILTRI Exported Glass Fiber Modern Design RFA-160 Industrial Return Oil Filter thumbnail-2
DFFILTRI Exported Glass Fiber Modern Design RFA-160 Industrial Return Oil Filter thumbnail-3
DFFILTRI Exported Glass Fiber Modern Design RFA-160 Industrial Return Oil Filter thumbnail-4
DFFILTRI Exported Glass Fiber Modern Design RFA-160 Industrial Return Oil Filter photo-1
DFFILTRI Exported Glass Fiber Modern Design RFA-160 Industrial Return Oil Filter photo-2
DFFILTRI Exported Glass Fiber Modern Design RFA-160 Industrial Return Oil Filter photo-3
DFFILTRI Exported Glass Fiber Modern Design RFA-160 Industrial Return Oil Filter photo-4
US$ 10 - 500 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
DFFILTRI
Model Number:
RFA-160*20
Contact Supplier Request Quote Chat Now
Xinxiang Dongfeng Filter Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO DALIAN SHANGHAI GUANGZHOU TIANJIN NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name DFFILTRI
Model Number RFA-160*20

DFFILTRI exported glass fiber modern design RFA-160  industrial return oil filter

DFFILTRI exported glass fiber modern design RFA-160 industrial return oil filter



Product  Introduction

This kind of filter can be used in hydraulic system for oil return fine filtration, and can

keep the oil back to tank clean. This filter can be installed on the cover of the tank and

the filter bowl is immersed in the oil tank, the direct return oil is adopted, it is more

convenient to replace the filter element.

Product  characteristics

Filter basic construction

This return filter consists of filter cover and filter bowl,equipped with bypass valve,diffuser

,clogging indicator etc device.

2.1 Housing material

High strength casting aluminum alloy; high strength aluminum tube

2.2 Seals

Perbunan (= NBR)

2.3 Filter element

Filter medium material

High strength carbon steel skeleton

2.4 Optional accessories

CYB-ⅠClogging indicator≤DC24V

CY-ⅡClogging indicator≤220V

2.5 Type of connection (choose according to filter models)

Metric threaded connection; Flanged connection

Type selection and technical data

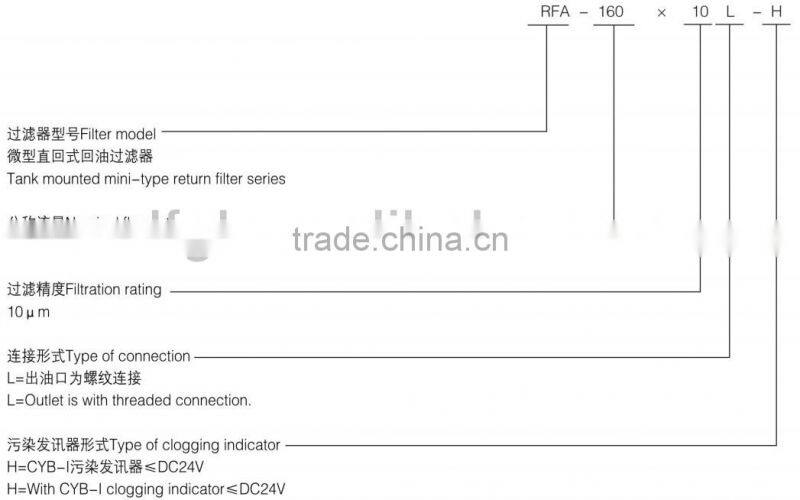

3.1 Order example

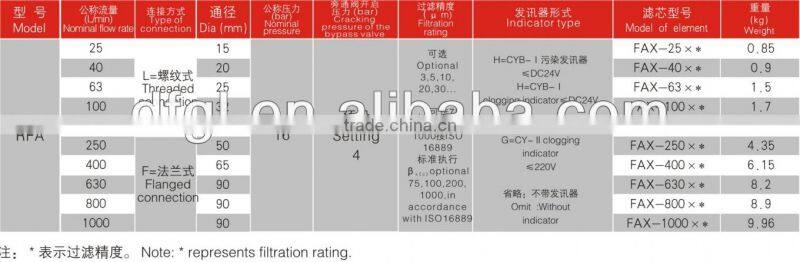

3.2 Technical Data



Model

Flow Rate(L/min)

Filtr(UM)

Dia(mm)

Model of Element

Press(Mpa)

Initial ΔP(Mpa)

Weight

V

A

RFA-25×*L-Y/C

25





1

3

5

10

20

30

15

FAX-25×*









1.6





12



24



36



220





2.5



2



1.5



0.25

0.85

RFA-40×*L-Y/C

40

20

FAX-40×*

0.9

RFA-63×*L-Y/C

63

25

FAX-63×*

1.5

RFA-100×*L-Y/C

100

32

FAX-100×*

1.7

RFA-160×*L-Y/C

160

40

FAX-160×*

2.7

RFA-250×*F-Y/C

250

50

FAX-250×*

4.35

RFA-400×*F-Y/C

400

65

FAX-400×*

6.15

RFA-630×*F-Y/C

630

90

FAX-630×*

8.2

RFA-800×*F-Y/C

800

90

FAX-800×*

8.9

RFA-1000×*F-Y/C

1000

90

FAX-1000×*

9.96

Four Series Leading Products

                      “Hydraulic System Cleaning & Filtration Device”,

                           “Complete Hydraulic Filters”,

                           “Hydraulic System Accessories ”

                           “Pump Valve Components”.

Company  Honors:

                      DFFILTRI exported glass fiber modern design RFA-160 industrial return oil filter

♦ China's Quality Recognized Top Ten Well-known Filter Brand

♦ 20 years OEM Manufacturing Experience

♦Testing CenterThe Committee of Filtration & Separation of China Technology Market Association

♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation

Workshop  Shows:

DFFILTRI exported glass fiber modern design RFA-160 industrial return oil filterDFFILTRI exported glass fiber modern design RFA-160 industrial return oil filter

Advantage:

  • Manufacturer
  • Competitive price can be offered
  • Optimum paper folding
  • Large dust holding capacity
  • Good temperature resistance
  • Good anti-humidity performance
  • No distortion of pleats
  • Environmental Friendly
  • OEM & ODM Customized is accepted
  • On-time delivery
  • Durable and reliable
  • Ecnomical,practical,and easy to install

 we own world advanced production equipment and produce high-quality products of

international standard with brand-new industrial conceptand strong technical forces.

We firmly believe we will become your trusted partner.
