XDFM 160 10 BTW MEDIUM PRESSURE LINE FILTER with FPM & NBR Seals

Specifications

Novel design,convenient installation,high oil-passing capacity,and small resistance,element.

1. Product introduction

XDFM series filters apply to the medium pressure line with bypass valve and clogging indicator; this filter can effectively filter the impurity in the hydraulic oil and assure the normal operation of hydraulic system.



2. Product characteristics

Filter basic construction
XDFM series filters consist of the cover and the spin-on housing.
2.1Housing material
Filter cover: High strength casting aluminum alloy
Filter bowl: High-strength aluminum alloy
2.2Seals
Perbunan (= NBR) (-30~+120°C)
Viton(=FPM)  (-20~+200°C)
2.3Filter element
Filter medium material(refer to P142)
High strength carbon steel skeleton
2.4Optional accessories
Without clogging indicator,with steel plug
Visual clogging indicator:CM-03
Electrical clogging
 indicator:CM-05
Combined visual /electrical clogging indicator:CM-08
Bypass valve(setting 6 bar)
2.5Type of connection(chosen according to the filter type)
Metric thread connection
Inch thread connection

2.6 Symbols

Filter without clogging indicator and
 bypass valve

Filter with bypass valve

Filter with visual clogging
indicator and bypass valve

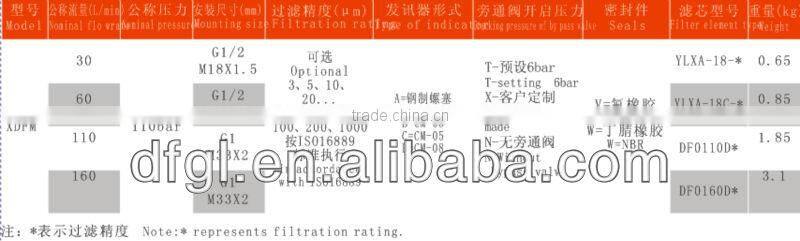

3. Type selection and technical data

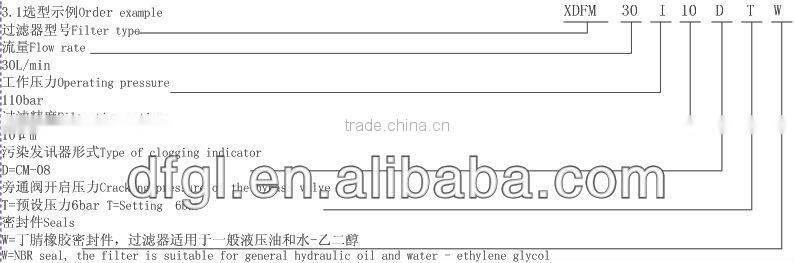

3.1 Order example



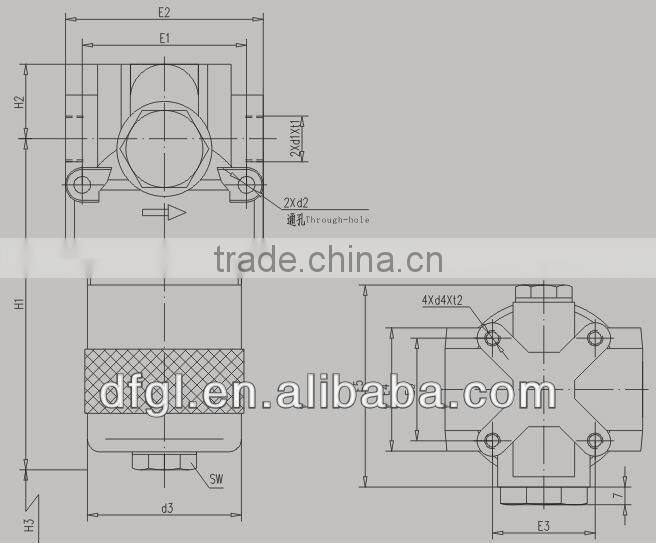

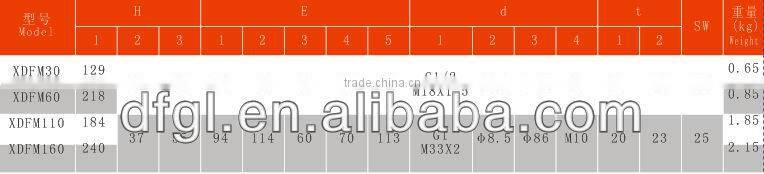

4. Mounting Size

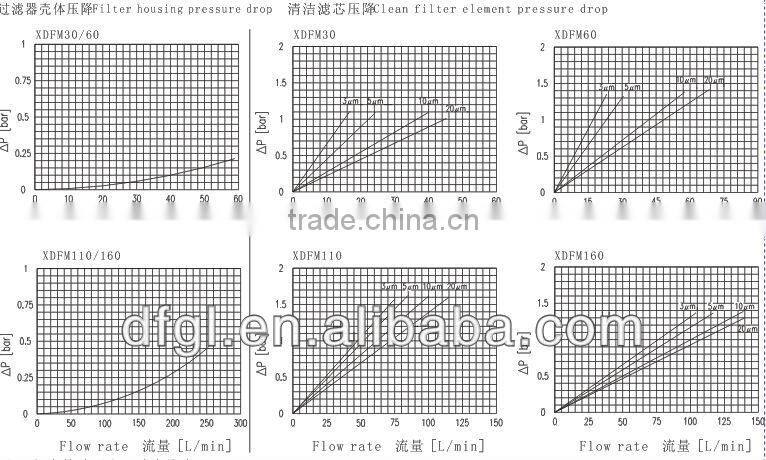

5.  Product characteristic curves

                                           Announcement

 Dear customers,









Note: If you have other requirements ,please consult us.
