Specifications
XDFM Medium Pressure line Filter1. Easy install
2. 100% tested, Long Service Life
3. 15-30 working days prompt delivery
Genuine Part Replacement HYDAC Replacement XDFM-60x10 Hydraulic Oil Line Medium Pressure Filter
P.S These are just part of our clients, in no particular order.
XDFM series filters apply to the medium pressure line with bypass valve and clogging indicator;
this filter can effectively filter the impurity in the hydraulic oil and assure the normal operation of hydraulic system.
Filter basic construction
XDFM series filters consist of the cover and the spin-on housing. .
1. Wide range of supply for filter, filter element and other combined filtration equipments
2. Compltely interchangeable with over 500 international brand originals
3. Very competitive price and fast delivery time
4. Making strictly in accordance with ISO, DIN, IDF and 3A standards, quality comply with GMP requirement.
5. Imported filtration materials
2.1 Housing material
Filter cover: High strength casting aluminum alloy
Filter bowl: High-strength aluminum alloy
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM(-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Without clogging indicator, with steel plug
Visual clogging indicator: CM-03
Electrical clogging indicator: CM-05
Combined visual /electrical clogging indicator: CM-08
Bypass valve (setting 6 bar)
2.5 Type of connection (chosen according to the filter type)
Metric threaded connection; Inch thread connection

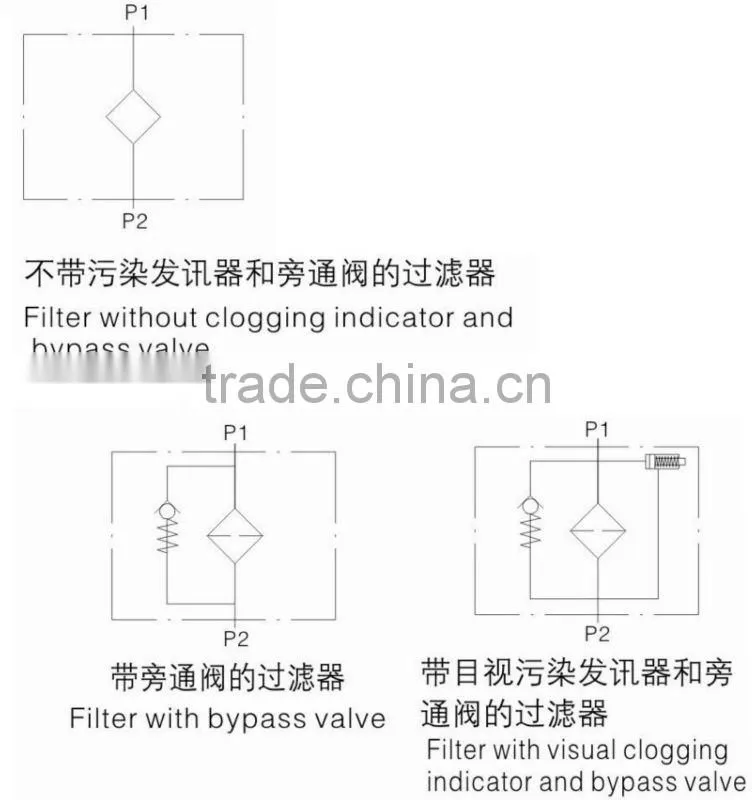

2.6 Symbols
3.1 Order example

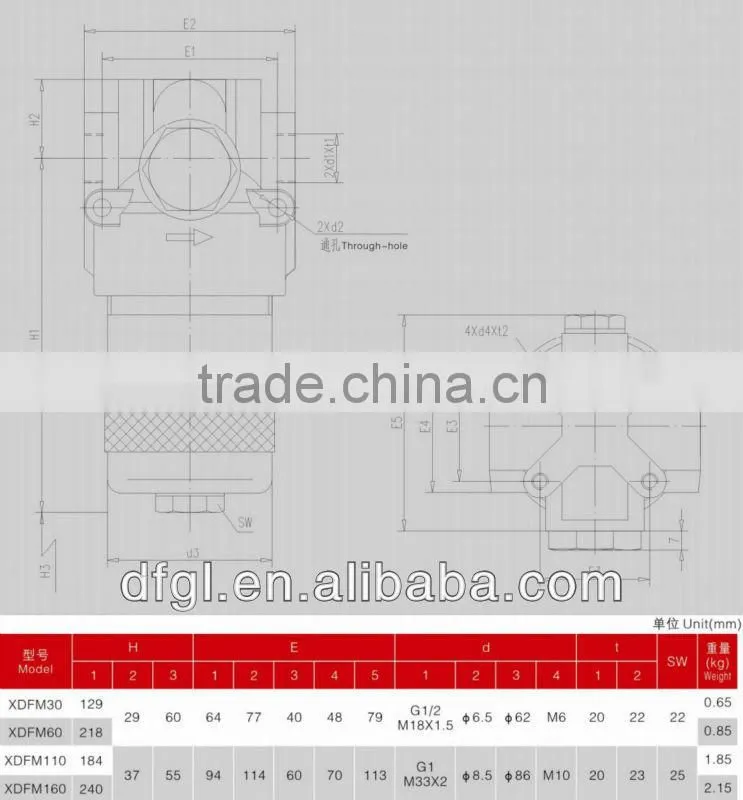

3.2 Technical Data Unit (mm)
| Model | Nominal Flow Rate (L/min) | Nominal Pressure | Mounting Size (mm) | Filtration Rating (μm) | Type of Indicator | Cracking Pressure of the Bypass Valve | Seals | Filter Element Type | Weight(kg) |
| XDFM | 30 | 110bar |
G½ M18x1.5 |
Optional 3,5,10,20... βx(c) Optional 75,100,200,1000 in accordance with ISO 16889 |
A=Steel Plug B=CM-03 C=CM-05 D=CM-08
|
T-setting 6bar X-Custom-made N-Without Bypass Valve |
V=FPM W=NBR
|
YLXA-18-* | 0.65 |
| 60 |
G½ M33x2 |
YLXA-18C-* | 0.85 | ||||||
| 110 |
G1 M33x2 |
DF0110D* | 1.85 | ||||||
| 160 |
G1 M33x2 |
DF0160D* | 3.1 |
Note: * represents filtration rating.
♦DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce
many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments,
pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully
achieved the position both in China and across the world.
♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which,
clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration
technology inspection and testing for in-house science research, production and industry service.
♦On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company
in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889
new standard and other international standards perfectly.
♦Testing center also has the developed equiment for filter performance testing, which can make the
comprehensive examination for filter element/cartridge performance. These can insure that company’s filter
with high capacity, long life, high reliable in full compliance with our customer's requirement.
♦The testing centre can take 7 tests of hydraulic filter performance evaluation, they are as follows:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
