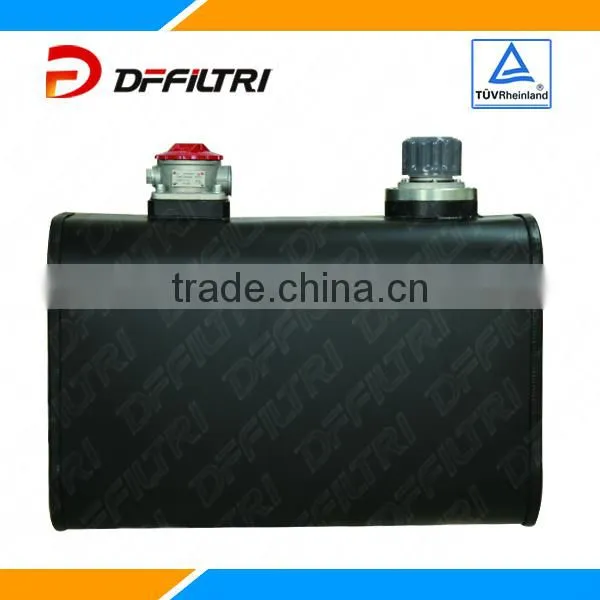

Manufacture DFFILTRI Quality Hydraulic Oil Tank For Dump Truck
Product Introduction
Hydraulic oil tank is an important component of the hydraulic system, it is the best partner assisting hydraulic mechanical work; in the working process of hydraulic system, hydraulic oil tank is responsible for storing medium of hydraulic system, discharging the heat of hydraulic system, and cleaning the hydraulic oil, filtrating impurity contamination in hydraulic oil, separating the mixed air with hydraulic oil. At present, the domestic hydraulic oil tank manufacturing mainly consists of ordinary low carbon steel plate by bending and welding, the tank inner surface without preservative treatment or only pickling and phosphatic treatment, its corrosion resistance is very low, very prone to corrosion in oil production and storage process; in addition, during the usage process of oil tank, due to the presence of the water and high temperature in the hydraulic oi together, it is easy to rust on inner wall of oil tank. These corrosion is fatal harm to the hydraulic system, which will directly reduce the cleanliness of hydraulic oil, seriously affect the stability of hydraulic
Product Characteristics
Our company produces the hydraulic oil tank, the imported Japanese aluminized steel plate is adopted with mold punching stretch forming, using a special welder welding, the welding process does not damage the coating, the tank wall does not need antiseptic treatment. Excellent corrosion resistance of aluminum plate can ensure tank no rust in the life, so as to ensure that the hydraulic oil and hydraulic oil cleanliness. At the same time, aluminum plate has excellent conduction performance, can effectively reduce the temperature of the hydraulic oil. The company's oil tank is designed with the integral optimization, the system has reasonable design, compact structure, the tank vent filter, suction & return filter adopt high quality filter that our company produces, the filtration efficiency is high with outstanding quality, can guarantee the contaminant scavenging in the work of the hydraulic system. Built-in diaphragm in the tank, at the same time of increasing flow circulation path, can improve the effect of cooling, air separation and precipitation of impurities.
♦High anticorrosion performance
♦ Good heat dissipation
♦ Good filtering effect and high cleanliness
♦ Structure optimization of impurity separation effect is good
♦ Compact structure suitable for vehicle
♦ Return filter is with big flow rate, pressure loss≤ 0.5 Mpa, high-rating glass fiber element is adopted with high filtration efficiency, β10≥200, β5≥200.
♦ Pre-pressuring air filter makes oil tank under positive pressure status to reduce foaming phenomenon in return oil tank, reduce the bubbles in oil and corrosion phenomenon of oil pump.
♦ For matched filters and accessories of oil tank,please refer to the catalog of our company or contact with us.
Model Description
| Hydraulic Oil Tank Volume | LengthxWidthxHeight (mm) |
| 50 | 380x265x510 |
| 80 | 450x320x570 |
| 120 | 520x360x650 |
About Us
♦DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments,pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
♦DFFILTER filtration technology testing center covers a total area of 450 square meters,
of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels.
The centre undertakes filtration technology inspection and testing for inhouse science research,
production and industry service.
♦On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided
by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and
"single-pass test" implements ISO16889 new standard and other international standards
perfectly.
♦Testing center also has the developed equiment for filter performance testing, which can
make the comprehensive examination for filter element/cartridge performance. These can
insure that company’s filter with high capacity, long life, high reliable in full compliance with
our customer's requirement.
♦The testing centre can take 7 tests of hydraulic filter performance evaluation, they
are as follows:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
