1. Product Introduction

PLF series filter is installed on the different pressure lines of the hydraulic system;

it has high oil-passing capacity, low initial pressure loss, high dirt-holding capacity and so on,

which can meet the various requirements from the customers.

2. Product Characteristics

Filter basic construction

PLF series filter is composed of filter top cover and spin-on housing. Filter top cover is integral type,

according to the customer requirements, the flow direction and the mounting hole position can be custom-made.

2.1 Housing material

Top cover material: Ductile cast iron
Filter bowl material: Carbon steel

2.2 Seals

Perbunan (=NBR) (-30~+120°C);  Viton=FPM(-20~+200°C)

2.3 Filter element

Filter medium material

High strength carbon steel skeleton

2.4 Optional accessories

Electric clogging indicator: CS-V
By-pass valve (Setting 6bar)

2.5 Type of connection (chosen according to the filter type)

Metric thread connection; Inch threaded connection; Flanged connection

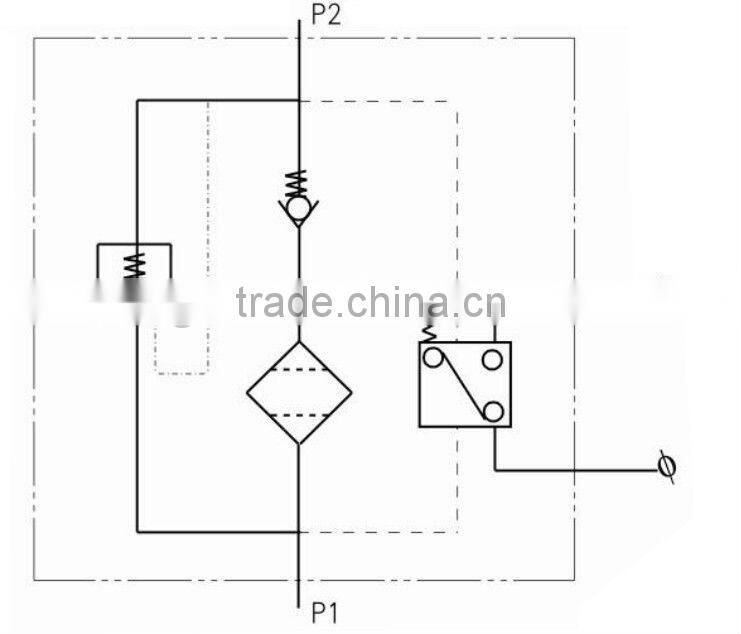

2.6 Symbols

3. Type Selection and Technical Data

3.1 Order example

3.2 Technical Data

Note: 1)The sealing material is NBR, if FPM is needed, please contact us;

          2)* represents filtration rating.

         3)If inch threaded connection is needed, please contact us;

4. Mounting Size

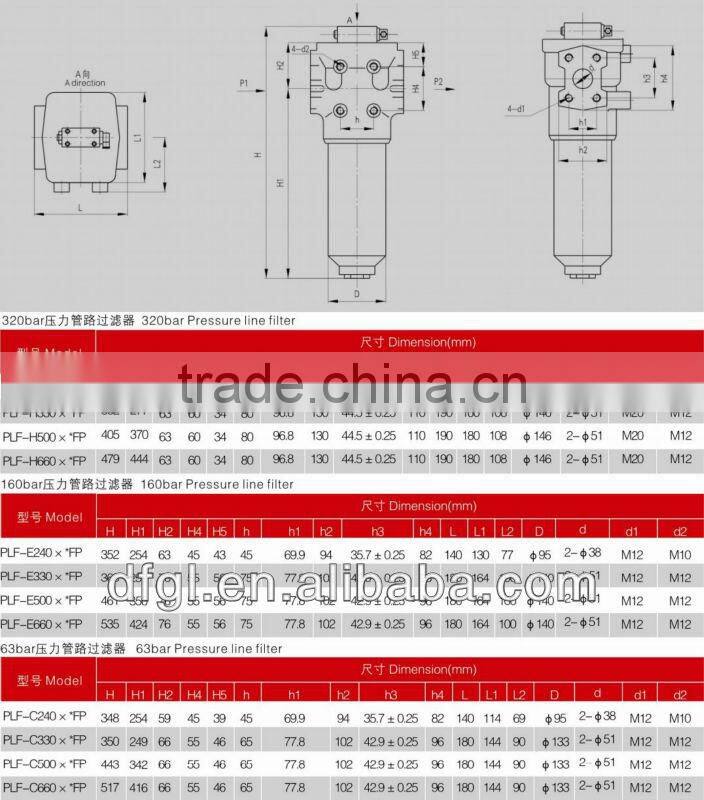

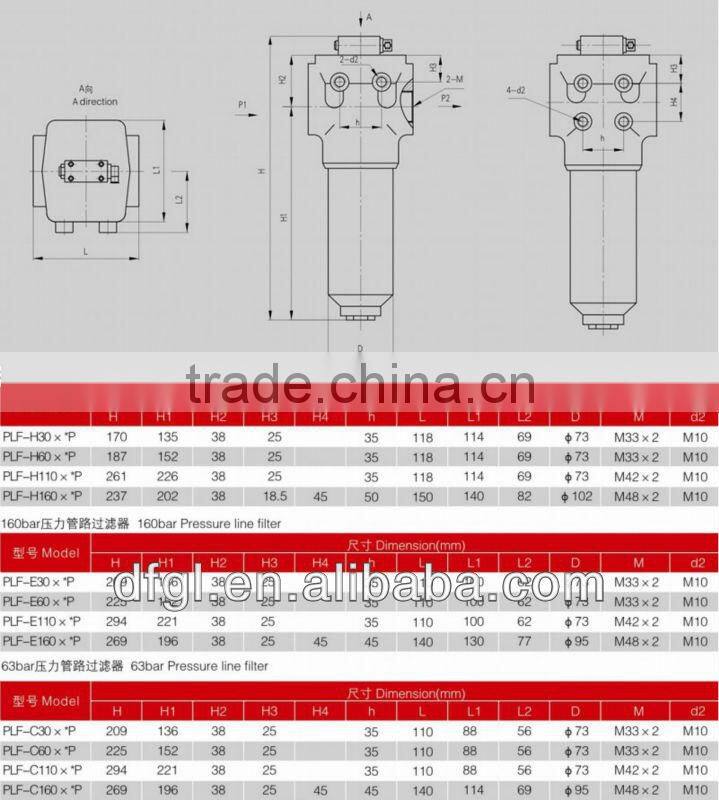

4.1 Threaded connection

 Note:Filter head is integral type,flow direction and mounting hole position can be custom-made,

          for the details please consult us;       * represents filtration rating.

4.2 Flangede connection

Note: * represents filtration rating.

5.  Product Characteristic Curves

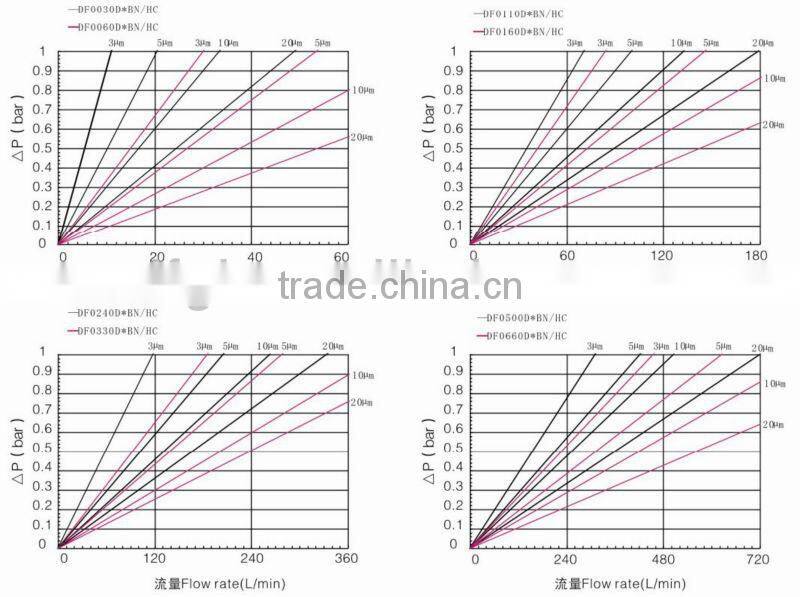

Differential pressure / flow characteristic curves of filter element

The characteristic curves of filter element are suitable for the mineral oil with kinematic viscosity 30 mm²/s.

Differential pressure and viscosity is proportional.
