Specifications
SDRLF Hydraulic Duplex Oil Return Line FilterNovel design,convenient installation,high oil-passing capacity
Rational Construction SDRLF Hydraulic Pressure Duplex Return Oil Strainer for Metallurgical Machinery Accessories
1. Product Introduction
SDRLF duplex large flow filter serie is with simple structure, the filter elements can be cleaned or replaced under continuous work to ensure normal operation of the equipment.
2. Product Characteristics
Filter basic construction
The characteristics of this filter are that the continuous operation is allowed even during element is changed for which is clogged by contaminants,
only need to open the balance valve and then turn the directional valve, the other filter begins to work, the clogged element should be changed in time.
This series filters are widely applied on hydraulic systems of heavy machinery, mining machinery, metallurgical machinery etc.
2.1 Housing material
Carbon steel
2.2 Seals
Perbunan (= NBR)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Combined visual/electrical clogging indicator
2.5 Type of connection
Chosen as per filter models
2.6 Symbols
3. Type Selection and Technical Data

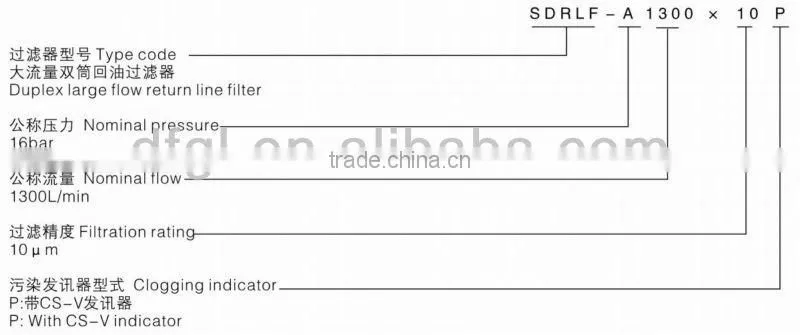

3.1 Order example
3.2 Technical Data
| Model | Nomal Flow Rate (L/min) | Dia (mm) | Nominal Pressure (bar) | Pressure Loss (bar) | Filtration Rating ( μm ) |
Cracking Pressure of the Bypass Valve (bar) |
Type of Indicator | Model of Filter Element | Quantity | Weight (kg) | ||
| Inital | Max | |||||||||||
| SDRLF | 1300 | 100 | 16 bar | 1 bar | 3.5 bar |
Optional 3,5,10,20,30...
βx(c) optional 75,100,200,1000, in accordance with ISO 16889 |
Setting 4 bar |
P=CS-V with CS-V Indicator
Without Indicator =With Plug |
SFX-1300x* |
1x2 | 610 | |
| 2600 | 150 | SFX-2600x* |
2x2 | 820 | ||||||||
| 3900 | 200 | SFX-3900x* |
3x2 | 850 | ||||||||
| 6500 | 250 | SFX-6500x* |
5x2 | 915 | ||||||||
| 7800 | 250 | SFX-7800x* |
6x2 | 960 | ||||||||
| 9100 | 250 | SFX-9100x* |
7x2 | 990 | ||||||||

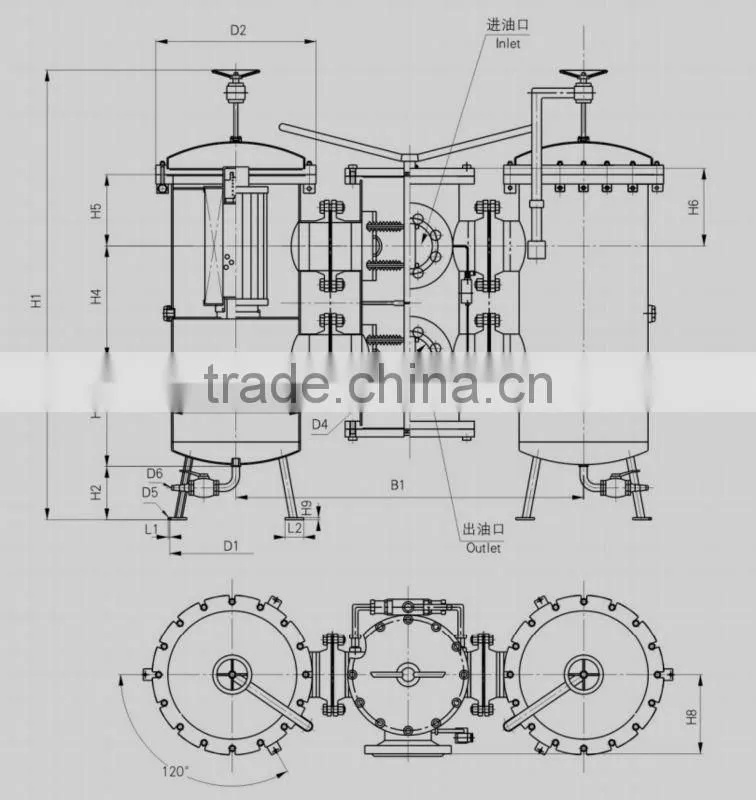

4. Mounting Size

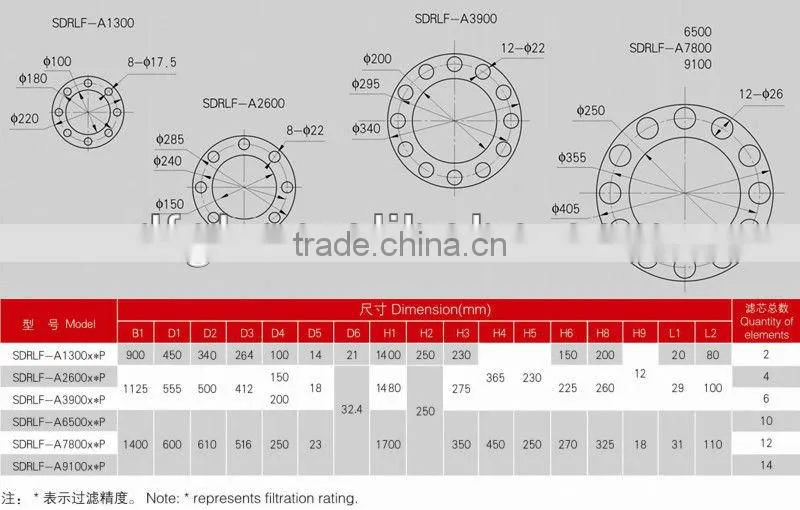

External conecting flange dimension
