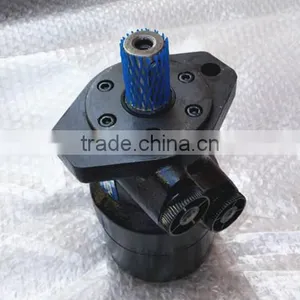

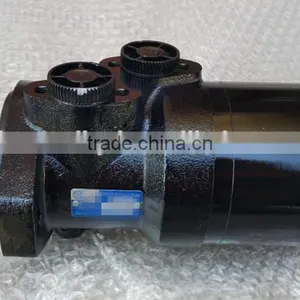

BM5 Series hydraulic pump motor couplings
BM5 is a large volume,disc valve ,high pressure motor, with ralial bearings design, and can bear greater load. Characteristic features：
1)Advanced design in disc distribution flow, which can provide better performance at low speed.
2)The valve can automatically compensate for the wear, so the volumetric efficiency is high .
3)Double taper roller bearings permit high radial loads. The motors can be used on heavier vehicles in traction drive applications.
Q: What is your main market?
A: Our main market is north America, Australia,especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls let us know,then our engineer will do as your demands.
Q: How about your delivery?
A: 4-6 weeks if no stock,4-5 days if have stock.
Q: Can I put our own brand on the motors?
A: Yes,no problem.
Motor Application
The hydraulic motors have advantages of small volume, high efficiency, low noise, etc. and be used in wide fields, such as: Construction equipment, Agricultural equipment, Plastic equipment, Mining equipment, Material Lifting equipment, Forestry equipment, Lawn and turf equipment,Machine tools and stationary equipment, Marine equipment,etc.

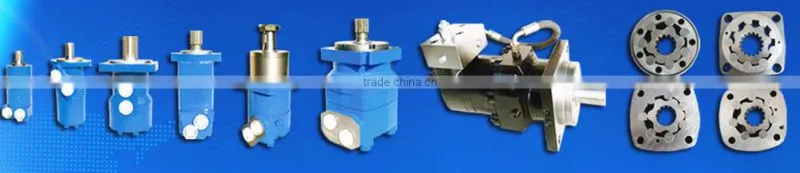

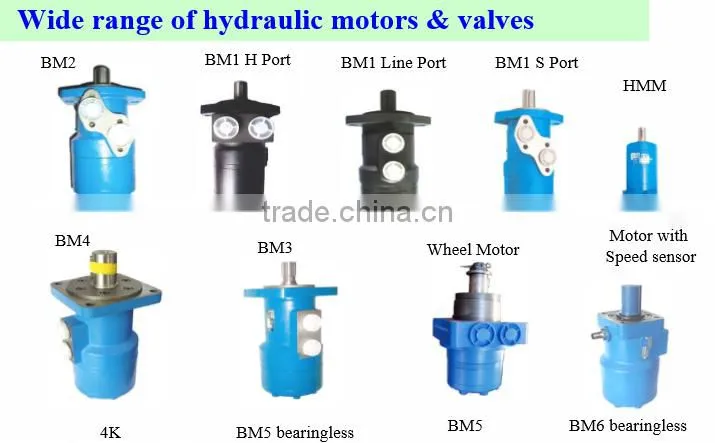

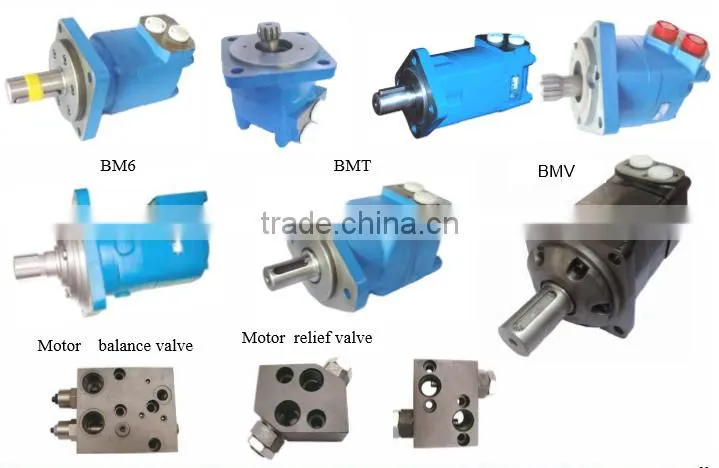

1)HMM is a mini-motor with high speed
2) BM1 is a small volume ,spool valve type motor ,with bearing design
3) BM2 is a medium volume ,spool valve type motor , with bearing design
4) BM3 is a medium volume ,spool valve type motor, with 2 radial ball-bearings design, and can bear bigger radial force
5) BM4 is a spool valve type motor, which can bear higher pressure than BM3
6) BM5 is a large volume, disc valve ,high pressure motor, with radial ball-bearings design, and can bear greater load
7) 4K is a large volume, disc valve ,high pressure motor,with radial ball-bearings design, and it can bear greater load than BM5
8) BM6 is a large volume, disc valve ,high pressure motor, with radial ball-bearings design, and can bear greater load, and has higher torque than BM5
9) BMT is a large volume, disc valve, high pressure motor,with radial ball-bearings design, which can bear greater load, and is shorter than BM6
10) Bearingless motor is Short motor without bearings z Wheel motor is a recessed mounting flange, with radial bearing design, which can bear great load

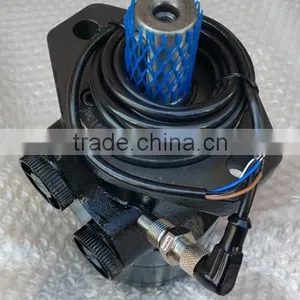

11) Motor with speed sensor can indicate the speed of motor
12) BMV is a disc valve, high pressure motor,with radial ball-bearings design and efficient performance . which can bear greater load than BMT. Its figuration is bigger than BMT.
