Agricultural Machinery Laser Land Leveling System LA400

Agricultural Machinery Laser Land Leveling System LA400 thumbnail-1
Agricultural Machinery Laser Land Leveling System LA400 photo-1
US$ 1,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Blades
Use:
Tractors
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Changzhou Sanyong Building Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Blades
Use Tractors
Place of Origin Jiangsu, China
Brand Name SANYONTECH
Model Number LA400

Specifications

Agricultural machinery laser land leveling system LA400

Agricultural Machinery  Laser Land Leveling System LA400



 Agricultural Machinery Laser Land Leveling System LA400

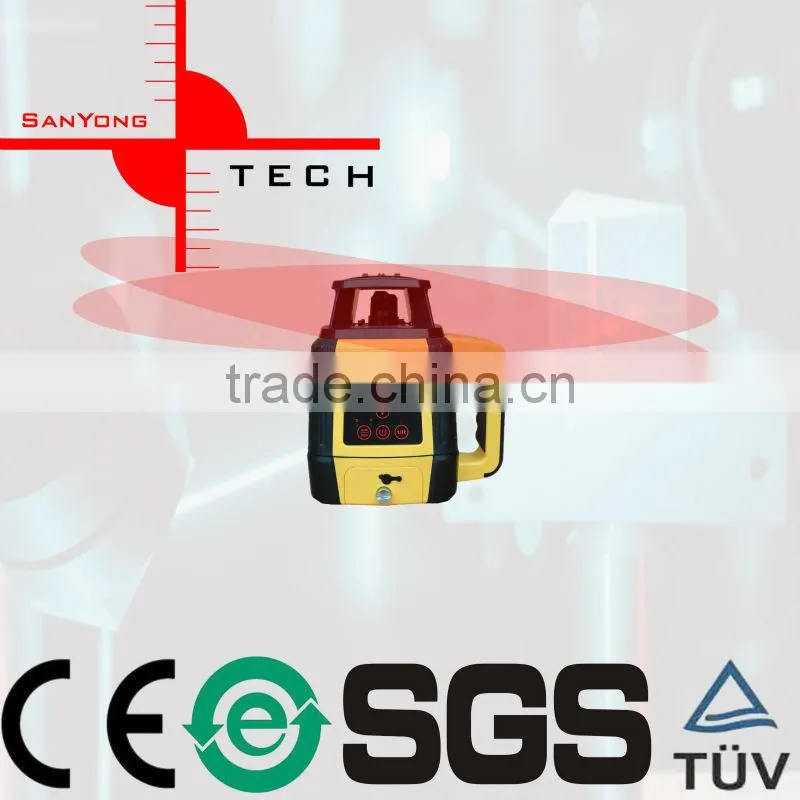

LA524 Multi-Functional Auto-Leveling Rotating Laser

Functions:



Electronic Automatic self-leveling technology,long range,high accuracy,good stability.

Horizontal and vertical self-leveling

superior dust and water-resistance to withstand demanding construction environments.



Specifications

Level system: Electronic sensor fast leveling.
Accuracy: ±15"(0.75cm per 100m)
Self leveling range: ±5°
Operation rang: 900m(Dia.) with detector
Three head speeds: 100,300,600 R. P. M.
Four scan widths:10°; 45°; 90°; 180°
Bright, visible beam;Wavelength 635nm
IR Remote control;Available distance:20 m
Working temperature: -20ºC ~ +50ºC (-4°F~+122°F)
Power supply: DC 4. 8-6V(4xsub-C NI-MH batteries or 4x alkaline batteries)
Continiuance working time: Approx. 40hr.
Waterproof and dustproof: IP 55
Dimension: 170(L) X 220(W)X 230(H)mm
Weight: 3.8kg(Laser only)

 Agricultural Machinery Laser Land Leveling System LA400

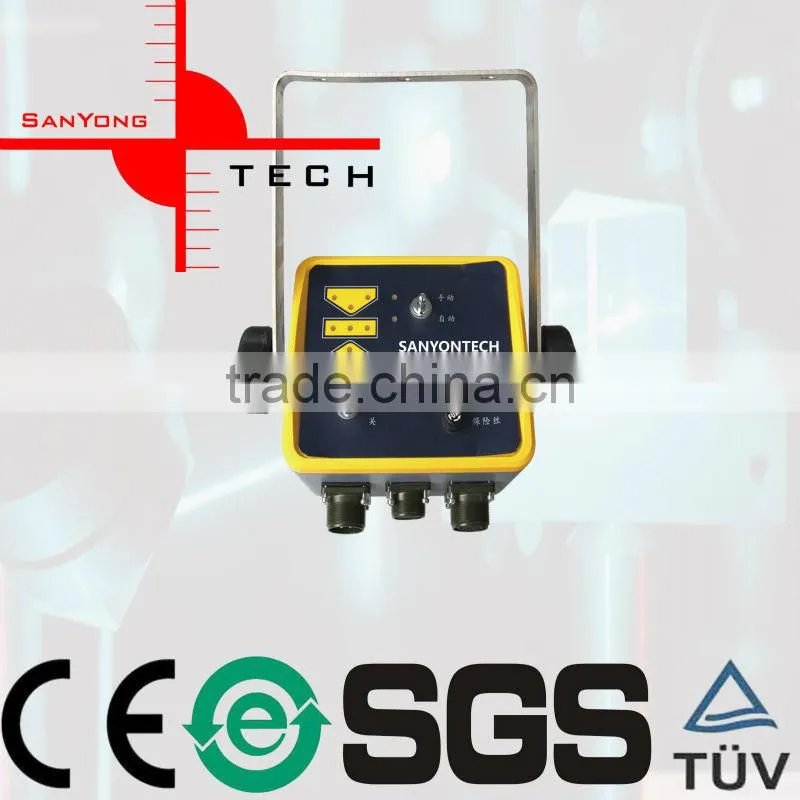

LA371 Control Box

Features

Optional manual/automatic control

High brightness LED indication

Proportion time valve controlling

Vibration-proof, shockproof, rainproof



Specifications

Horizontal LED: green

High/low LED: yellow

Input voltage: 12V DC

Valve compatibility: proportion time valve (PT) control

Power: External 12V

Size:6 5/16’’ ×4 3/4’’ ×4 1/8’’ (160×120×105mm)

Weight:6.18 lbs (2.8Kg)

Agricultural Machinery Laser Land Leveling System LA400

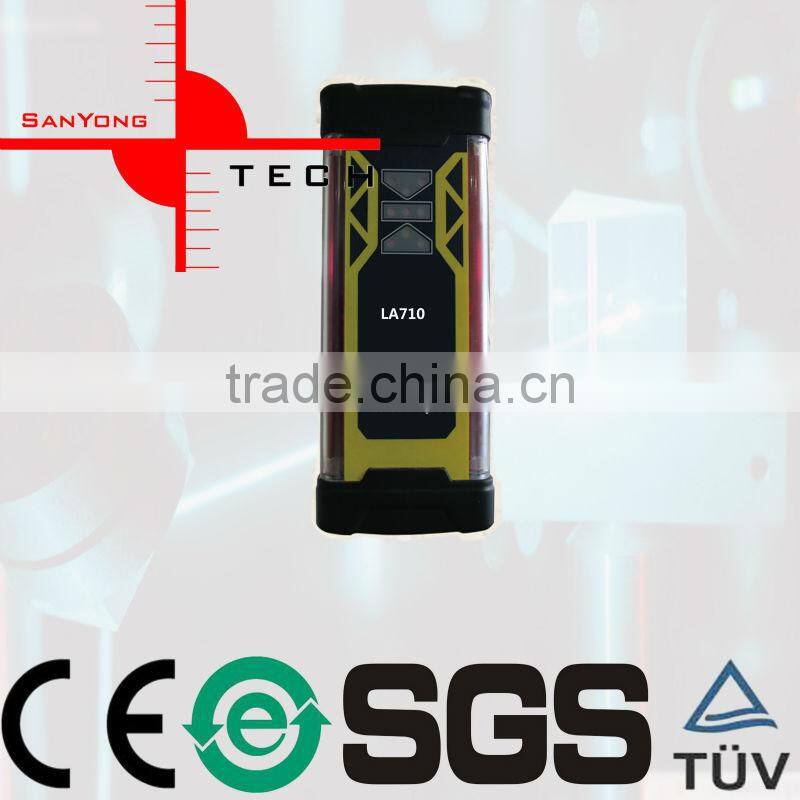

LA710 Laser Receiver

Features

Large scale detecting window

High brightness LED display

360° full range receiving

Vibration-proof, shockproof, rainproof

With data output interface



Specifications

Detecting radius: 300m

Receiving angle: 360°fully receivable

Detecting window: 200mm

Detecting accuracy: Fine detecting ±2.5m

Coarse detecting ±5m

Power: external DC 12V

Size: 6 1/4’’ ×4 1/4’’ ×10 3/8’’ (158×108×264mm)

Weight: 4.4 lbs (2Kg)

Agricultural Machinery Laser Land Leveling System LA400Agricultural Machinery Laser Land Leveling System LA400Agricultural Machinery Laser Land Leveling System LA400Agricultural Machinery Laser Land Leveling System LA400
