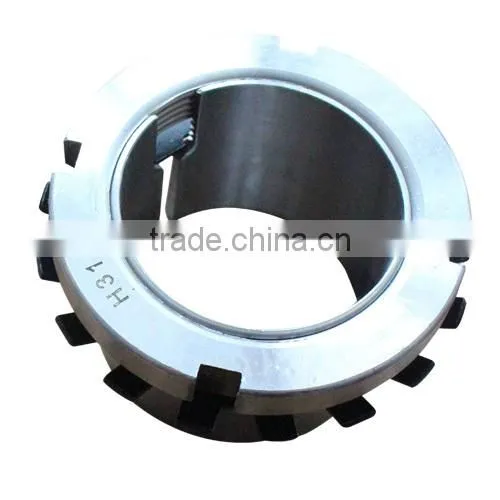

MODEL : High Precision H311 Adapter Sleeve
Data sheet
| Item | H311 Adapter Sleeve | |
| Brand | SUMA or OEM | |
| Type | H3 | |
| Outside Diameter | 75mm | |
| Inside Diameter | 12mm | |
| Width | 45mm | |
| Weight | 0.345kg | |
| Material | GCr15 | |
| Precision | P6 | |

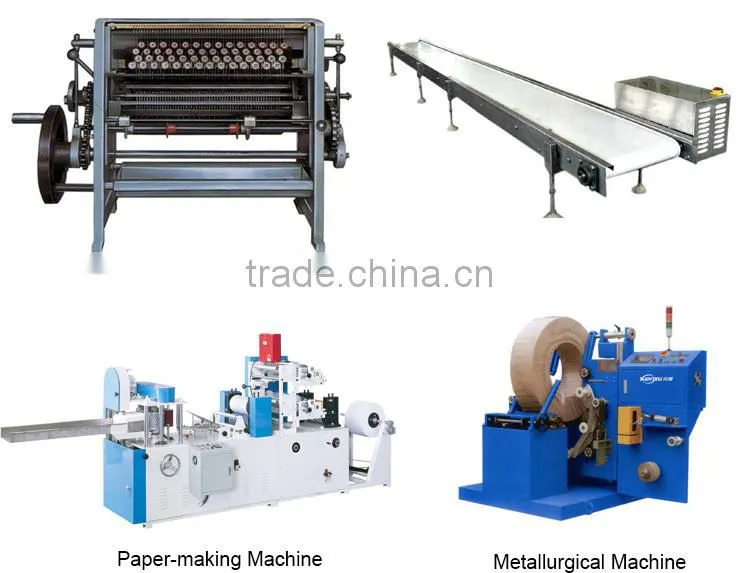

| Application | belt conveying equipment; textile machine; paper-making machine; metallurgical industry other machine |
|
Product Description:
Adapter Sleeves is used for fixing conical self-aligning bearing (self-aligning ball bearing, self-aligning roller
bearing) on the shaft without shoulder with simple structure, reliable operation and convenient change. It is widely
in the belt conveying equipment in the fields of textile, light industry, paper-making industry, metallurgical industry.

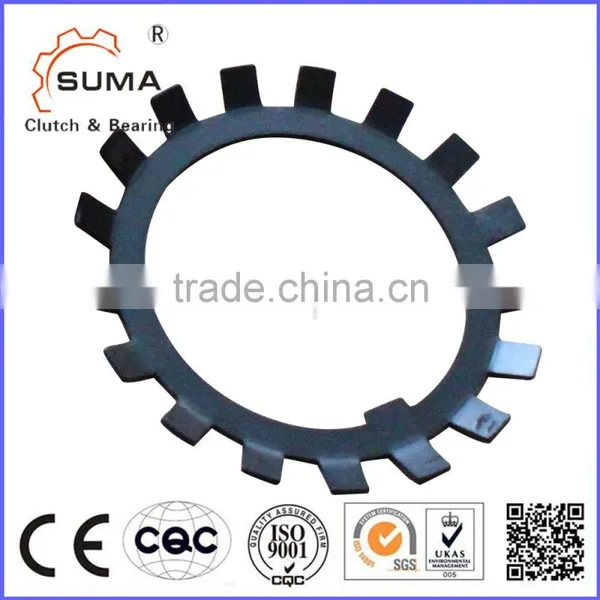

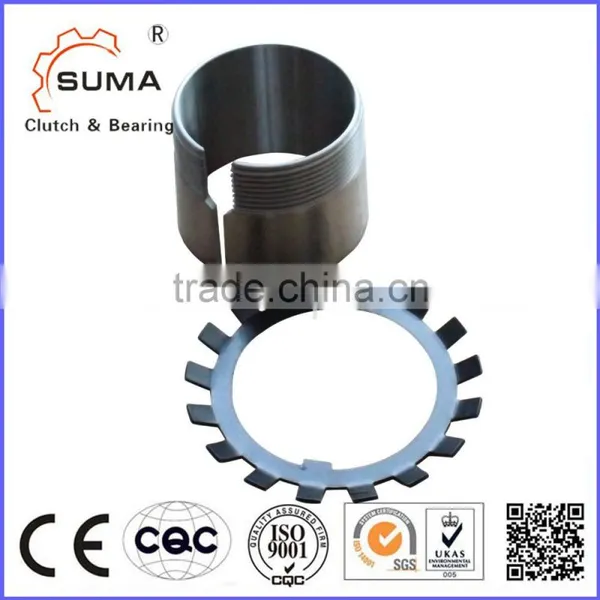

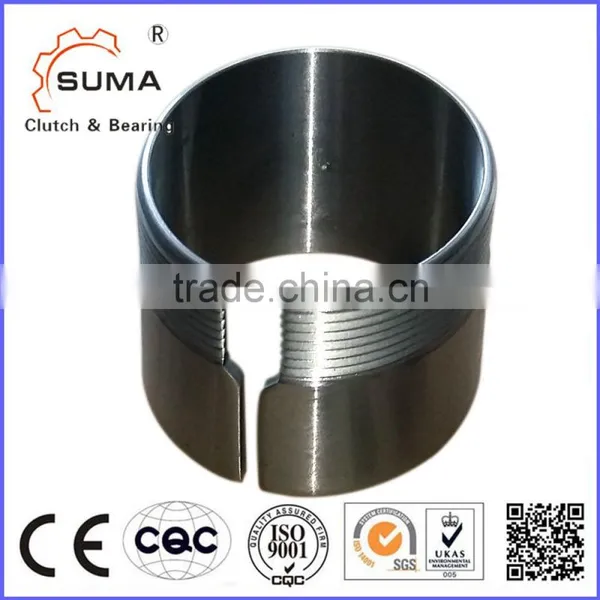

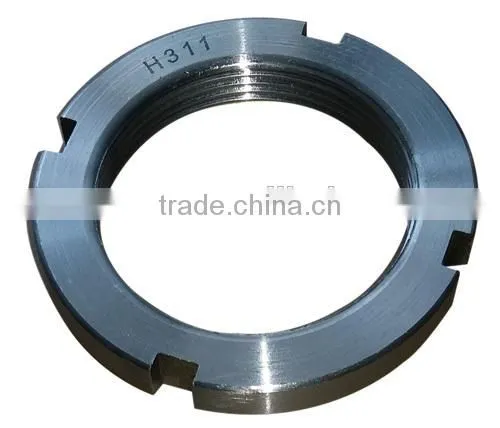

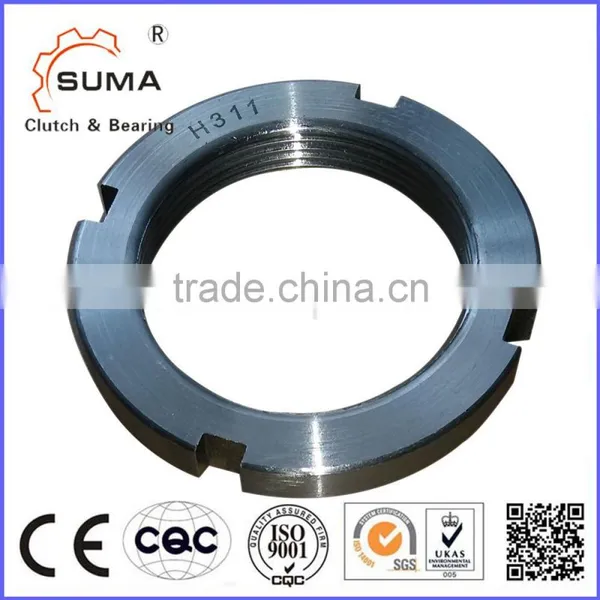

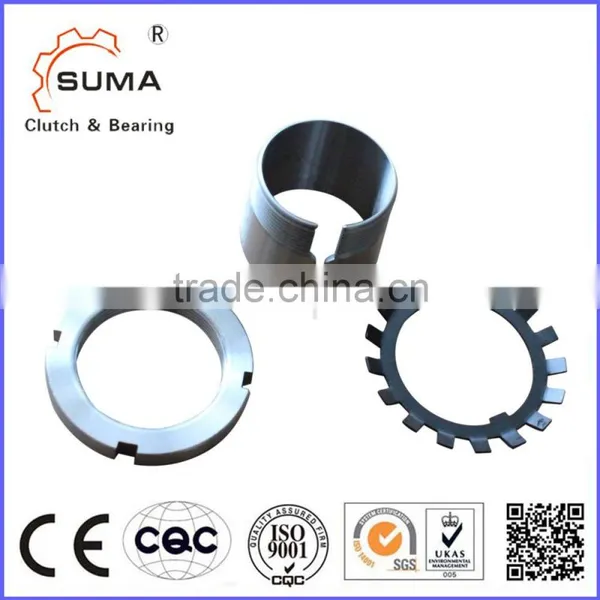

The Adapter Sleeves is composed of tapered adepter bush, locknut, lock washer (or retainer). The Adapter Sleeves with locknut and lock washer is only replaced with whole set. The parts not from same resource are not changeable (equal to ISO113/1-1979).
Specifications of Adapter Sleeves(H3/HE3/HS3/HA3):
Model |
d1 |
L
mm |
D3
mm |
C
mm |
Lock Nuts
|
Lock Washers |
Weight
kg |
|||
|
H mm |
HE In |
HS in |
HA in |
|||||||
H304 |
17 |
-- |
-- |
-- |
28 |
32 |
7 |
KM04 |
KM04 |
0.045 |
H305 |
20 |
3/4 |
7/8 |
-- |
29 |
38 |
8 |
KM05 |
KM05 |
0.075 |
H306 |
25 |
1 |
7/8 |
15/16 |
31 |
45 |
8 |
KM06 |
KM06 |
0.109 |
H307 |
30 |
11/4 |
11/8 |
13/16 |
35 |
52 |
9 |
KM07 |
KM07 |
0.142 |
H308 |
35 |
11/4 |
13/8 |
15/16 |
36 |
58 |
10 |
KM08 |
KM08 |
0.189 |
H309 |
40 |
11/2 |
15/8 |
17/16 |
39 |
65 |
11 |
KM09 |
KM09 |
0.248 |
H310 |
45 |
13/4 |
15/8 |
111/16 |
42 |
71 |
12 |
KM10 |
KM10 |
0.303 |
H311 |
50 |
2 |
17/8 |
115/16 |
45 |
75 |
12 |
KM11 |
KM11 |
0.345 |
H312 |
55 |
21/4 |
21/8 |
21/16 |
47 |
80 |
13 |
KM12 |
KM12 |
0.394 |
H313 |
60 |
21/4 |
23/8 |
23/16 |
50 |
85 |
14 |
KM13 |
KM13 |
0.458 |
H314 |
60 |
23/8 |
-- |
-- |
52 |
92 |
14 |
KM14 |
KM14 |
0.723 |
H315 |
65 |
21/2 |
25/8 |
27/16 |
55 |
98 |
15 |
KM15 |
KM15 |
0.831 |
H316 |
70 |
23/4 |
27/8 |
211/16 |
59 |
105 |
17 |
KM16 |
KM16 |
1.030 |
H317 |
75 |
3 |
-- |
215/16 |
63 |
110 |
18 |
KM17 |
KM17 |
1.180 |
H318 |
80 |
31/4 |
31/8 |
33/16 |
65 |
120 |
18 |
KM18 |
KM18 |
1.370 |
H319 |
85 |
31/4 |
-- |
35/16 |
68 |
125 |
19 |
KM19 |
KM19 |
1.560 |
H320 |
90 |
31/2 |
-- |
37/16 |
71 |
130 |
20 |
KM20 |
KM20 |
1.690 |
H321 |
95 |
-- |
-- |
-- |
74 |
140 |
20 |
KM21 |
KM21 |
1.950 |
H322 |
100 |
4 |
-- |
315/16 |
77 |
145 |
21 |
KM20 |
KM20 |
2.180 |
