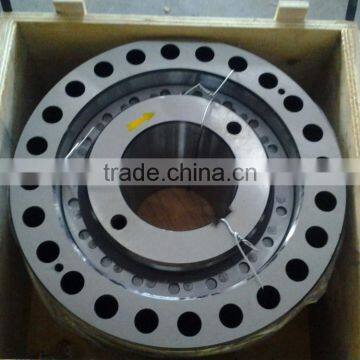

Overrunning Clutch RSCI 240II With Sprag Used as Power Transmission Part for Water Pump and Air Blower
US$ 100 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA or OEM
Bore Size:
240,
Outside Diameter:
520,
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Power Transmission Part SPRAG Clutch RSCI 240II-M With Sprag for Water Pump and Air BlowerUS$ 100 - 100MOQ: 1 Piece -
Power Transmission Part Overrunning Clutch RSCI 260 With Sprag for Water Pump and Air BlowerUS$ 100 - 100MOQ: 1 Piece
-
Power Transmission Part Sprag Clutch RSCI 260M With Sprag for Water Pump and Air BlowerUS$ 100 - 100MOQ: 1 Piece
-
Overrunning Clutch RSCI 260II Used as Power Transmission Part With Sprag for Water Pump and Air BlowerUS$ 100 - 100MOQ: 1 Piece
-
Sprag Clutch RSCI 260II-M Used as Power Transmission Part With Sprag for Water Pump and Air BlowerUS$ 100 - 100MOQ: 1 Piece
Brand Name
SUMA or OEM
Bore Size
240,
Outside Diameter
520,
Model Number
RSCI 240II
Precision Rating
P0
Seals Type
SEALED
Place of Origin
Jiangsu, China
Product Description
Type RSCI is a centrifugal lift off sprag type freewheel with the inner race rotating. Only the inner race is designed for Freewheeling.
Primarily designed as a backstop, this type can be also used as an overrunning clutch in crawl drives, where the overrunning
speed is high but the driving speed is low and does not exceed the maximum driving speed shown in the table. Centering of the outer race must use the inner bore.

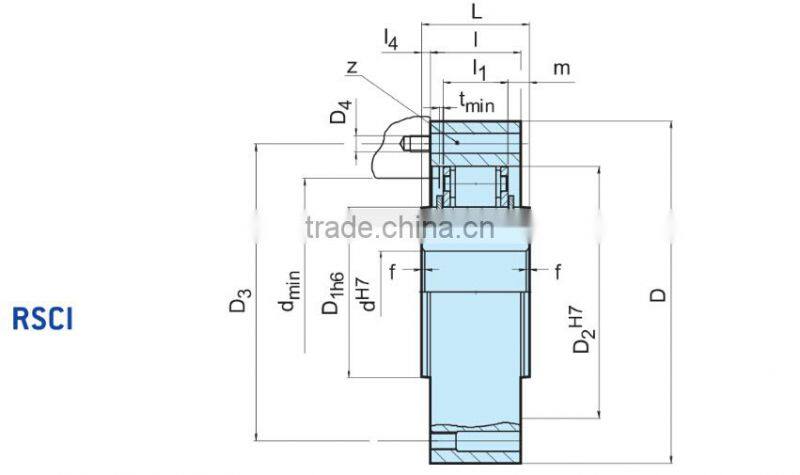

| Size | Torque | Speeds | Num ber | Wei ght | |||||||||||||||
| dH7 | TKN1) | n max2) | ni min3) | ni max4) | D5) | D1h6 | D2H7 | D3 | D4 | z | L | I | I1 | I4 | f× 45° | d min | m | t min | |
| mm | Nm | min-1 | min-1 | min-1 | mm | mm | mm | mm | mm | mm | mm | m m | mm | mm | mm | mm | kg | ||
| 180 | 31500 | 115 | 285 | 1300 | 412 | 240 | 310 | 360 | M20 | 12 | 90 | 80 | 53 | 5 | 3.5 | 280 | 18.6 | 3 | 59 |
180 M | 50000 | 90 | 220 | 1300 | 422 | 240 | 310 | 370 | M20 | 18 | 120 | 120 | 83 | 0 | 4 | 280 | 18.5 | 2 | 92 |
| 180 II | 63000 | 115 | 285 | 1300 | 412 | 240 | 310 | 360 | M20 | 24 | 160 | 160 | 118 | 0 | 3.5 | 280 | 21 | 3 | 116 |
| 180 II-M | 100000 | 90 | 220 | 1300 | 425 | 240 | 310 | 370 | M24 | 24 | 240 | 240 | 176 | 0 | 4 | 280 | 32 | 3 | 190 |
| 220 | 42500 | 110 | 265 | 1100 | 470 | 290 | 360 | 410 | M20 | 16 | 105 | 80 | 60 | 12 .5 | 4 | 330 | 19.5 | 3 | 90 |
| 220M | 68000 | 85 | 205 | 1100 | 480 | 290 | 360 | 410 | M24 | 16 | 120 | 120 | 83 | 0 | 4 | 330 | 18.5 | 2 | 109 |
| 220 II | 85000 | 110 | 265 | 1100 | 480 | 290 | 360 | 430 | M24 | 18 | 160 | 160 | 130 | 0 | 4 | 330 | 15 | 3 | 159 |
| 220 II-M | 136000 | 85 | 205 | 1100 | 490 | 290 | 360 | 425 | M30 | 20 | 240 | 240 | 176 | 0 | 4 | 330 | 32 | 2 | 249 |
| 240 | 52000 | 105 | 250 | 1100 | 500 | 320 | 390 | 440 | M20 | 16 | 105 | 90 | 60 | 7.5 | 4 | 360 | 15 | 2 | 95 |
| 240 M | 83000 | 80 | 195 | 1100 | 520 | 320 | 390 | 440 | M24 | 16 | 120 | 120 | 83 | 0 | 4 | 360 | 18.5 | 2 | 137 |
| 240 II | 104000 | 105 | 250 | 1100 | 520 | 320 | 390 | 440 | M24 | 24 | 180 | 180 | 132 | 0 | 4 | 360 | 24 | 2 | 191 |
| 240 II-M | 166000 | 80 | 195 | 1100 | 530 | 320 | 390 | 455 | M30 | 24 | 240 | 240 | 181 | 0 | 4 | 360 | 32 | 2 | 250 |
| 260 | 65000 | 100 | 240 | 1000 | 550 | 360 | 430 | 500 | M24 | 16 | 105 | 105 | 60 | 0 | 4 | 400 | 22.5 | 2 | 130 |
| 260M | 100000 | 75 | 185 | 1000 | 580 | 360 | 430 | 500 | M24 | 24 | 125 | 125 | 83 | 0 | 4 | 400 | 21 | 2 | 183 |
| 260 II | 130000 | 100 | 240 | 1000 | 580 | 360 | 430 | 500 | M24 | 24 | 210 | 210 | 132 | 0 | 4 | 400 | 39 | 2 | 262 |
| 260 II-M | 200000 | 75 | 185 | 1000 | 580 | 360 | 430 | 500 | M30 | 24 | 250 | 250 | 176 | 0 | 4 | 400 | 37 | 2 | 369 |
| 300 | 78000 | 90 | 225 | 1000 | 630 | 410 | 480 | 560 | M24 | 24 | 105 | 105 | 60 | 0 | 4 | 460 | 22.5 | 3 | 174 |
| 300M | 125000 | 70 | 175 | 1000 | 630 | 410 | 480 | 560 | M24 | 24 | 125 | 125 | 83 | 0 | 4 | 460 | 21 | 3 | 210 |
| 300 II | 156000 | 90 | 225 | 1000 | 630 | 410 | 480 | 560 | M24 | 24 | 210 | 210 | 134 | 0 | 4 | 460 | 38 | 3 | 351 |
| 300 II-M | 250000 | 70 | 175 | 1000 | 630 | 410 | 480 | 560 | M30 | 24 | 250 | 250 | 182 .6 | 0 | 4 | 460 | 33.7 | 3 | 457 |
