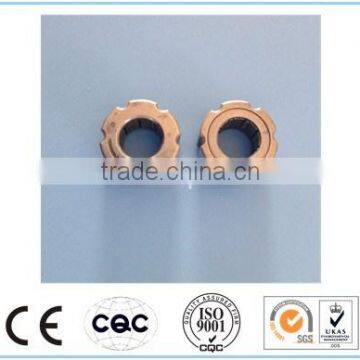

Help CenterOWC 410 One Way Needle Bearing for Currency Counting Machine and Automatic Fishing Device
Related Products
-
OWC511 ONE WAY NEEDLE CLUTCH BEARING for Small Machine Such as Currency Counting Machine and Automatic Fishing DeviceUS$ 0.9 - 0.9MOQ: 1 Piece -
OWC 612 ONE WAY NEEDLE BEARING for Small Machine Such as Currency Counting Machine and Automatic Fishing DeviceUS$ 0.9 - 0.9MOQ: 1 Piece
-
OWC814 ONE WAY NEEDLE CLUTCH BEARING for Small Machine Such as Currency Counting Machine and Automatic Fishing DeviceUS$ 0.9 - 0.9MOQ: 1 Piece
-
OWC408 One Way Needle Bearing With Needle Type for Small Machine Such as Currency Counting Machine and Automatic Fishing DeviceUS$ 0.9 - 0.9MOQ: 1 Piece
-
OWC612-8.4 One Way Needle Clutch for Small Machine Such as Currency Counting Machine and Automatic Fishing DeviceUS$ 0.9 - 0.9MOQ: 1 Piece
OWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and
make the structure more compact as well as higher performance.
MATERIAL:
The outer ring of OWC one-way clutch is made by sintered metal, and the spring is made by stainless steel . As the basic part of the clutch does not use resin , it is hard to be affected by
external environment.
CHARACTERISTIC:
1.The structure is all metal ,which gives full play to the excellent heat resistant characteristic.
2.Short in diameter and thin in depth ,which makes the miniaturization of machine become
possible.
3.Two standard : clockwise (R type) and anticlockwise (L type)
4.Because of the protection of protective layer, it can provide the performance of single functional
components.
5.The gears and pulleys (made by resin) are easily pushed ,which makes it easily to assemble.
| Shaft Dia. mm | Model | Weight | Size (mm) | Driving Torque | ||
| g | Inner Dia. | Outer Dia. | Height | ( Nm ) | ||
| 4 | OWC 410 | 1.8 | 4 | 10 | 5.4 | 2.8 |
| 5 | OWC 511 | 2 | 5 | 11 | 5.4 | 3.5 |
| 6 | OWC 612 | 2.3 | 6 | 12 | 5.4 | 5.2 |
| 8 | OWC 814 | 2.8 | 8 | 14 | 5.4 | 6.1 |
| 10 | OWC 1016 | 3 | 10 | 16 | 5.4 | 9.5 |
| 4 | OWC 406 | 1.6 | 4 | 8 | 6 | 2.5 |
| 4 | OWC 408 | 1.8 | 4 | 8 | 8 | 3.1 |
| 6 | OWC 612-8.4 | 2.35 | 6 | 12 | 8.4 | 6.8 |
| 6 | OWC 61407 | 2.1 | 6 | 14 | 7 | 6.6 |
| 6 | OWC 720 | 2.5 | 6 | 12.7 | 7.5 | 7.3 |
| 6 | OWC 087 | 2.38 | 6 | 10.2 | 8 | 4.6 |
| 6 | OWC 178 | 3 | 6 | 10.2 | 15 | 7.3 |
| 8 | OWC 81607 | 2.6 | 8 | 16 | 7 | 7.5 |
| 8 | OWC 812 | 3 | 8 | 12.7 | 7.3 | 6.8 |
| 8 | OWC 816-5.5 | 3.5 | 8 | 16 | 5.5 | 8.2 |
| 8 | OWC 816-6.2 | 3.8 | 8 | 16 | 6.2 | 8.8 |
| 10 | OWC 1008 | 3.35 | 10 | 16 | 8 | 9.7 |
| 10 | OWC 1019 | 8.5 | 10 | 19 | 11 | 19.8 |
| 17 | OWC 173512 | 22.5 | 17 | 35 | 12 | 78 |
| 17 | OWC 173516 | 25.5 | 17 | 35 | 16 | 95 |
| 17 | OWC 203316 | 23 | 20 | 33 | 16 | 108 |
| MARKS:NON-STANDARD CAN BE PRODUCED | ||||||
