power transmission part DTIIN1-9 ~ DTIIN1-14 series Indexing Clutc with roller type used in reducers for COAL MINE belt conveyor
Negotiable
/ Piece
1 Piece(Min. Order)
- Shanghai ; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
power transmission part DTIIN1-14 series Indexing one way Clutch with roller type used in reducers for COAL MINE belt conveyor
-
power transmission part DTIIN1-12 series one way Clutch with roller type used in reducers for COAL MINE belt conveyor
-
DTIIN1-11 series One Way Clutch with roller type used as power transmission part for COAL MINE belt conveyor
-
Printer Machine Bearing OWC612 / Needle Roller Bearing one Way
-
HFL2016 Changzhou SUMA Needle Bearing One-Way Clutch for Backstop Application
-
China Needle Bearing Manufacturer HFL081412K One Direction Bearing Needle
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SUMA or OEM | |
| Model Number | DTIIN1-9 ~DTIIN1-14 |
Product Description
Product Description
DTIIN1 series backstop clutch is a kind of low speed of roller type plugging device,often with reducer ,
used in belt conveyor,hoist,electric drum, and other need a non-return device.
Non-return quickly ,small reverse distance,long life ,can withstand the torque.

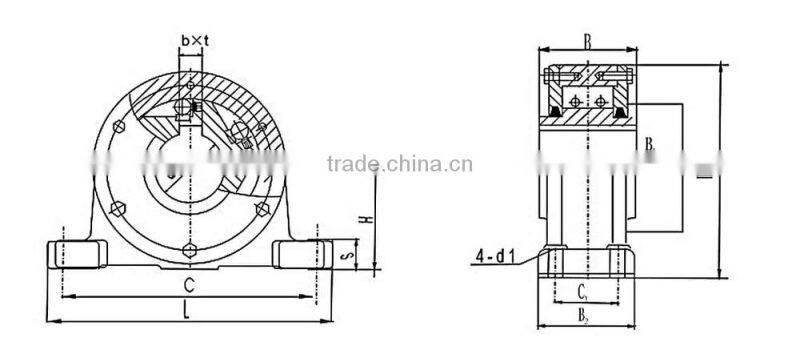

| Type | Torque Max. | Bore Dia. | Size | Weight | Recommended Suitable Reducer | ||||||||||
| TKN Max. | ødH7 | B | B1 | B2 | C | L | C1 | H | H1 | S | bxt | d1 | kg | ||
| KN.m | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
DTIIN1-9 | 6.77 | 90 | 140 | 140 | 175 | 400 | 450 | 90 | 160 | 310 | 48 | 25X5.4 | ø21 | 92.8 | DCY200 |
| DTIIN1-10 | 6.77 | 100 | 28X6.4 | 91.2 | DCY224 | ||||||||||
| DTIIN1-11 | 6.77 | 110 | 28X6.4 | 89.4 | DCY250 DBY250 | ||||||||||
| DTIIN1-12 | 13.7 | 120 | 170 | 170 | 160 | 430 | 480 | 120 | 175 | 340 | 32X7.4 | 123 | DCY280 DBY280 | ||
| DTIIN1-14 | 22.8 | 140 | 230 | 230 | 220 | 510 | 580 | 170 | 215 | 420 | 53 | 36X8.4 | ø26 | 192 | DCY315 DBY315 |
Marks:The bore tolerance is H7 ,and the recommended shaft tolerance is h6 . Installing bore and keyway are selected according to GB/T1095-1979 . Width tolerance is used the general key connection . The shaft is N9 ,and the hub is JS9 .
