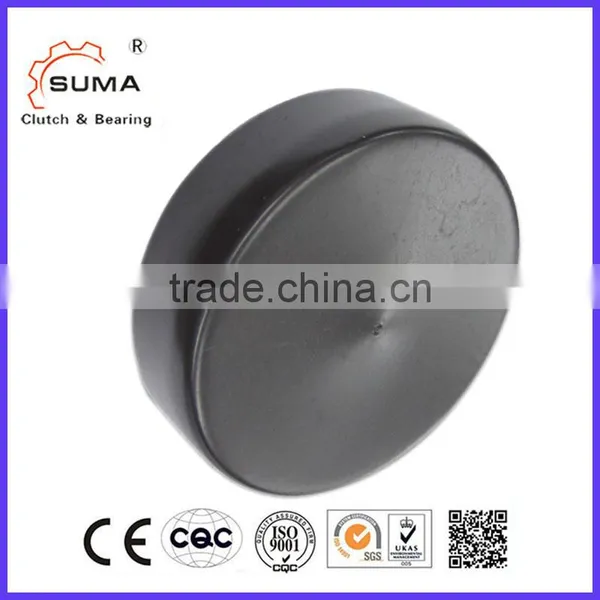

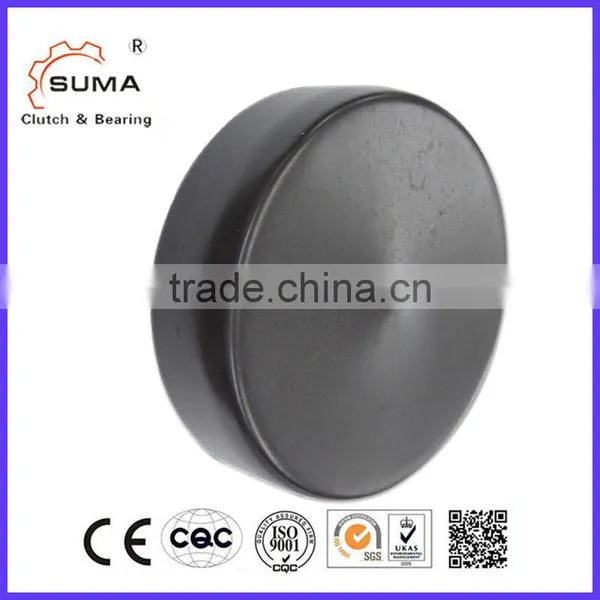

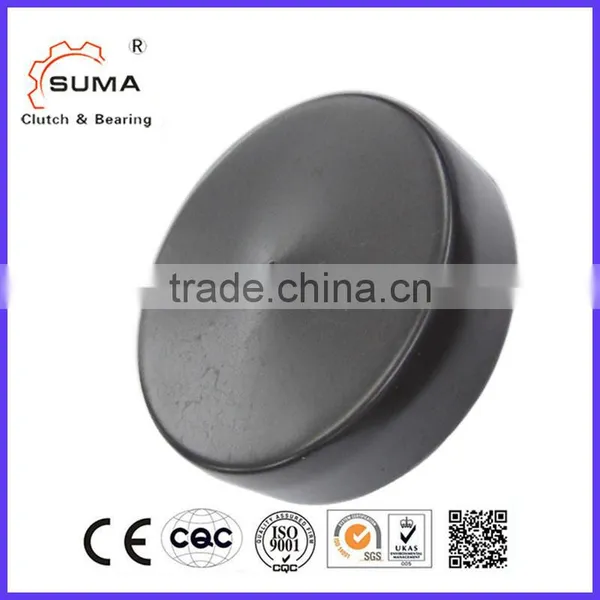

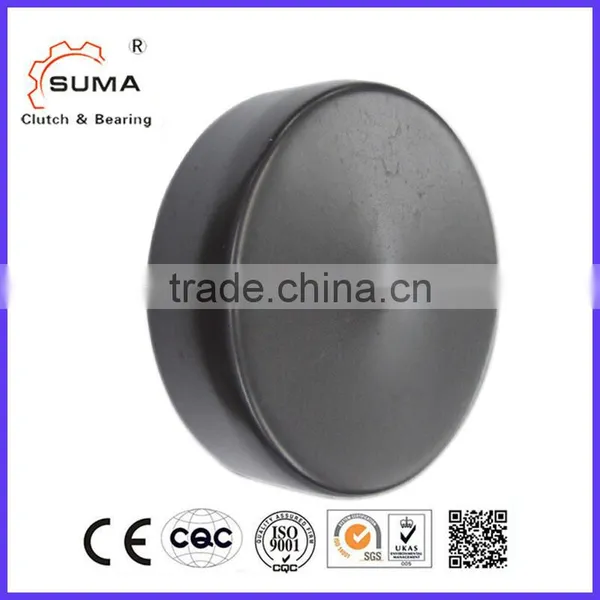

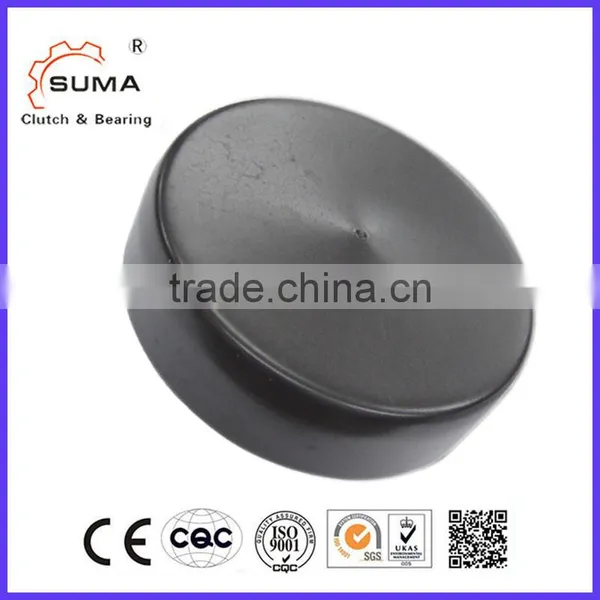

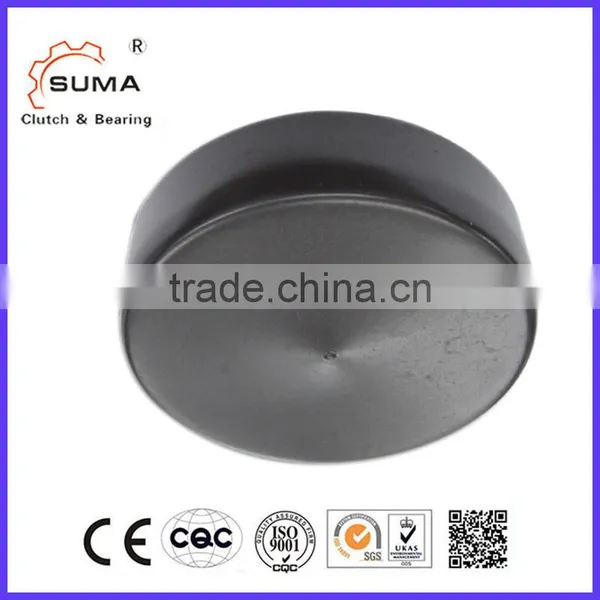

Universal PVC Cover for Shrink Disc RLK608
Features of cover for shrink disc
The cost-effective covers made from black plastic (PVC) provide simple contact protection for Shrink Discs RLK 608 and RLK 606 against the screw heads of the rotating Shrink Disc.
Product name |
Shrink Disc Cover |
Model |
RLK606 and RLK608 COVER |
Material |
PVC |
Inner Diameter |
24mm |
Outer Diameter |
50mm |
Thickness |
22mm |
Weight |
0.3kg |
Application |
Low space equipment |
Package |
Wooden box, or customizable |
Payment terms |
TT, L/C, D/A, D/P, Western Union, Paypal |
Delivery time |
7-10 days after order confirmed |
Technical Parameter of cover for shrink disc
Size |
Covers for shrink discs |
Dimensions |
Weight |
Article number |
||
D |
L |
|||||
RLK 608 |
RLK 606 |
mm |
mm |
kg |
||
36 |
RLK 608-36 |
RLK 606-36 |
72 |
27 |
0,02 |
5025-070901-000000 |
44 |
RLK 608-44 |
RLK 606-44 |
80 |
29 |
0,04 |
5025-078901-000000 |
50 |
RLK 608-50 |
RLK 606-50 |
90 |
31 |
0,10 |
5025-087901-000000 |
62 |
RLK 608-62 |
RLK 606-62 |
110 |
33 |
0,08 |
5025-108901-000000 |
68 |
RLK 608-68 |
RLK 606-68 |
115 |
33 |
0,08 |
5025-113901-000000 |
75 |
RLK 608-75 |
RLK 606-75 |
138 |
36 |
0,10 |
5025-136901-000000 |
80 |
RLK 608-80 |
RLK 606-80 |
141 |
36 |
0,15 |
5025-139901-000000 |
100 |
RLK 608-100 |
RLK 606-100 |
170 |
48 |
0,15 |
5025-168901-000000 |
120 |
RLK 608-120 |
RLK 606-120 |
197 |
60 |
0,20 |
5025-195901-000000 |
140 |
RLK 608-140 |
RLK 606-140 |
230 |
65 |
0,40 |
5025-228901-000000 |
155 |
RLK 608-155 |
RLK 606-155 |
263 |
67 |
0,45 |
5025-261901-000000 |
190 |
RLK 608-190 |
RLK 606-190 |
320 |
90 |
0,84 |
5025-320901-000000 |
More Models Locking Assembly for your reference
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the cover for shrink disc?
A: Usually cover for shrink disc are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of cover for shrink disc from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the cover for shrink disc in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
