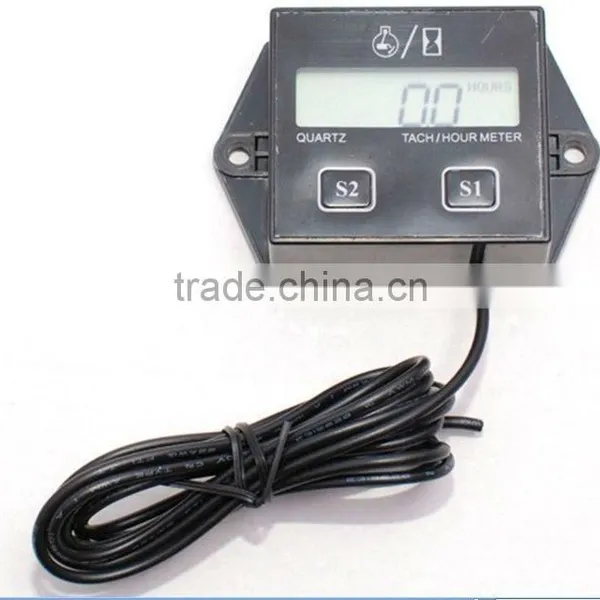

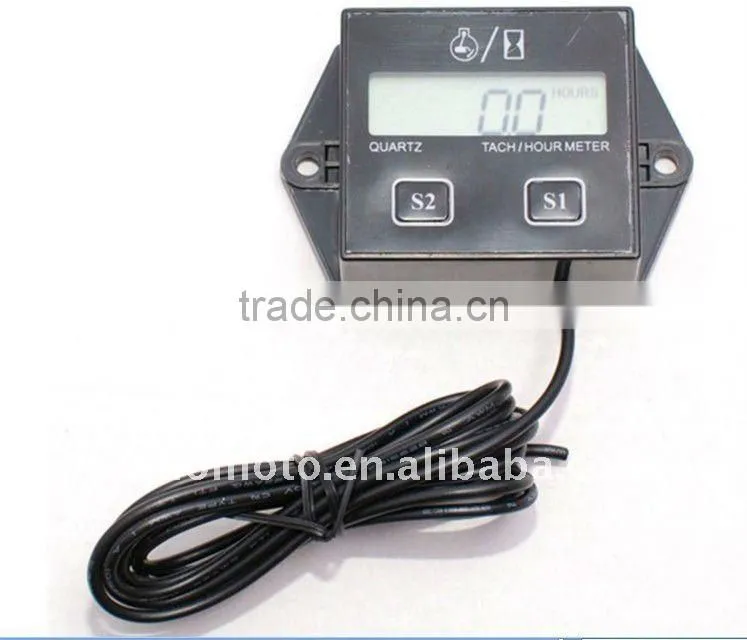

Help CenterTach Hour Meter for Motorcycle ATV Snowmobile Boat Stroke Gas Engine Generator HP-02-TACH
Related Products
-
Aluminum Shell Best LapTimer Recorder for Motorcycles Bikes Motorcycle AccessoryUS$ 10 - 30MOQ: 10 Sets -
Best LapTimer Recorder With Aluminum Shell for Motorcycles BikesUS$ 10 - 30MOQ: 10 Sets
-
Best Timer Recorder With Aluminum Shell for Cars,motorcycles, Dirtbikes,minbikes,bicycles,skateboards,snowboards,titaniumUS$ 10 - 55MOQ: 10 Sets
-
Bestlap Lap Timer Infrared Racing Track 10" Interval Time V3US$ 1 - 20MOQ: 10 Sets
-
Racing Motorcycle Accurate Tutor GPS Lap Timer LP-CHEETAHUS$ 50 - 100MOQ: 50 Pieces
Specifications
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).hour meter
used for Marine, ATV, Motorcycle, Snowmobile
- Track the Service Life of Your Vehicle-oil changes, valve, adjustments, spark plugs, etc…
- Easy Installation-peel & stick, no wiring necessary, or attach with enclosed hardware.
- No Battery Require-connects to spark plug wire.
- Works on Any Gas Engine.
We have 3 colors for this item: black, blue, orange, color will be sent randomly, pls leave us message if you have the special color request.
Installation Method:
1. Wrap the included pick-up wire around the spark plug wire five times. Start wrapping the pick-up wire about 4cm from the end of spark plug boot. Use the included zip tie to secure the pick-up wire wrapping as shown in the photo right.
2. Before continuing the installation, insert the pick-up wire Into the rear of the meter. Start the motor to make sure the meter is picking up the ignition signal. If it is, this will activate the timer on the meter and the icon on the left of the LCD will flash. You'll have to wait at least 6 minutes to increase the timer display(1/10th of an hour). If it is not picking up the ignition signal, slide the pick-up wrap closer to the spark plug boot.
3. 1f the meter is successfully picking up the spark signal, run and zip tie the pick-up along one of the throttle cables. Make sure the pick-up wire can not make contact with the engine. Also, make sure you leave enough (about 8 cm) so removing the spark plug wire is possible. Keep in mind the general location of final mounting location on the frame spare.
4.Securing Method:
a. Drilling into your frame with 2.5mm socket, then secure it to the frame coming with two pick-up screws.
b. using padded double-sided tape on the backside of the meter and secured it to the frame spar with zip ties. That's all there is to the installation. Now you're set to accurately track your maintenance. Don’t forget to record the metered time when performing maintenance.
Quick Facts
Compatibility: All motorcycle models (anything with a spark plug really should work)
Hardware Included: Meter, pick-up wire, two screws
Tools Required: 2.Smm socket to remove shroud, wire cutters.
