Help CenterBANDED V-BELTS
Related Products

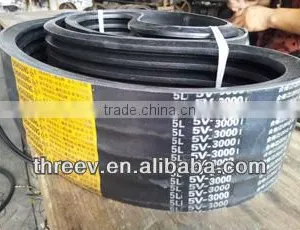

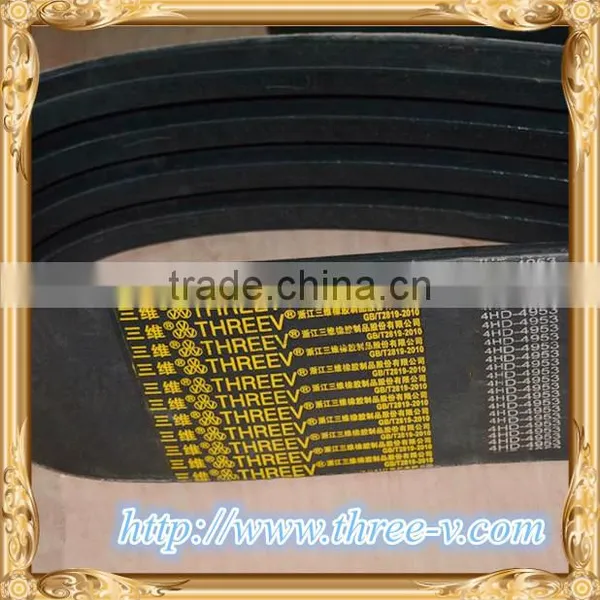

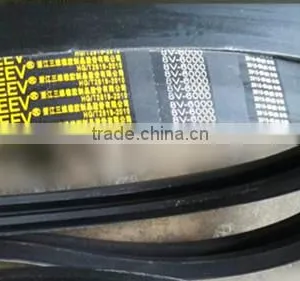

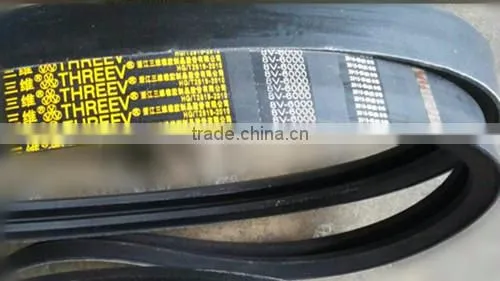

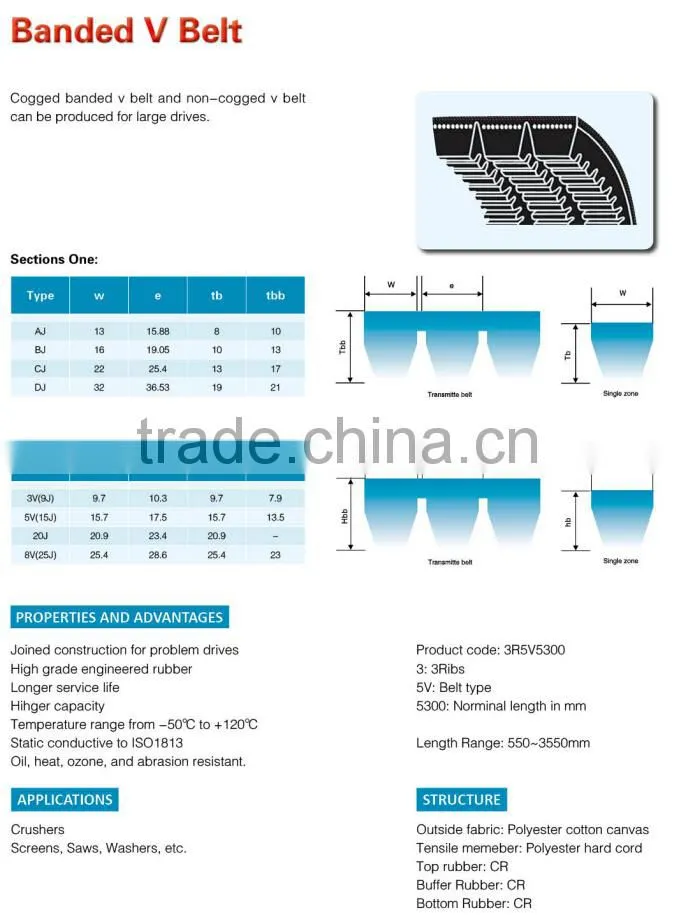

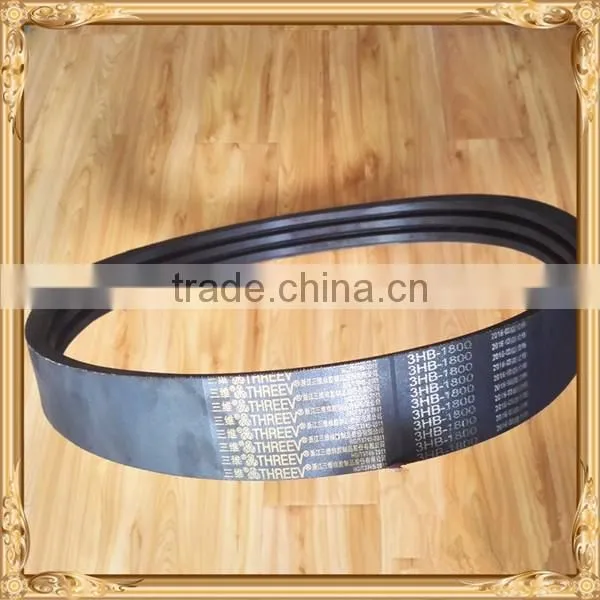

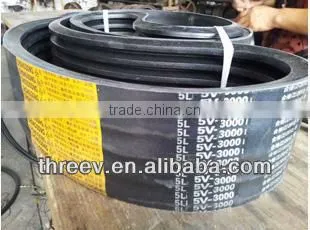

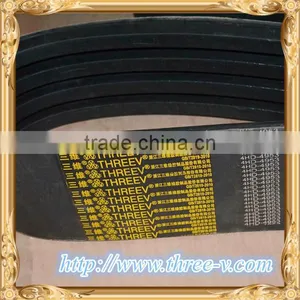

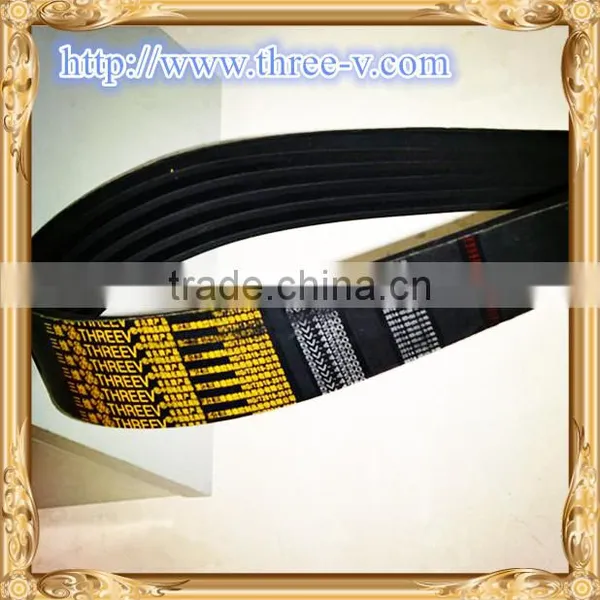

These banded belts are permanently bound together to prevent slipping and allows consistant torque and horsepower.
Both in WRAPPED and RAW EDGE COGGED type.

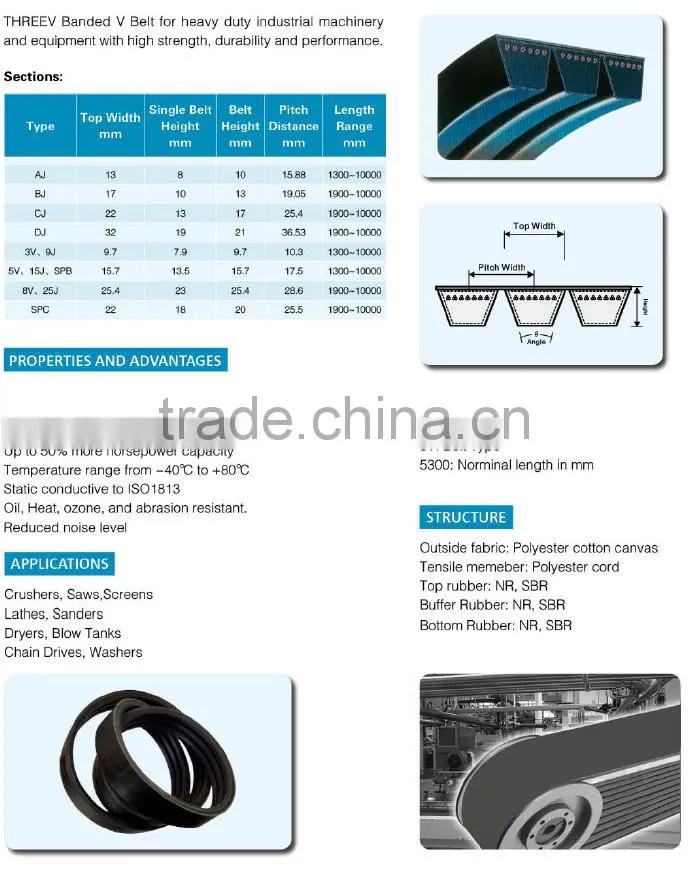

| Type | Top Width (mm) | Pitch (mm) | Height (mm) | Angle | Length Range (mm) |
| RA | 13.6 | 15.6 | 10.0 | 40° | 1800~5000 |
| RB | 17.0 | 19.0 | 13.0 | 40° | 1800~8000 |
| RC | 22.4 | 25.4 | 16.0 | 40° | 1800~10000 |
| RD | 32.8 | 37.0 | 21.5 | 40° | 3000~14000 |
| R3V(9J) | 9.7 | 10.3 | 9.7 | 40° | 1800~5000 |
| R5V(15J) | 15.7 | 17.5 | 15.7 | 40° | 1800~8000 |
| R8V(25J) | 25.4 | 28.6 | 25.4 | 40° | 3000~10000 |
| RSPZ | 10.5 | / | 10 | 40° | 1800~5000 |
| RSPA | 13.6 | / | 12.3 | 40° | 1800~5000 |
| RSPB | 17.0 | / | 16.5 | 40° | 1800~8000 |
| RSPC | 22.0 | / | 21.0 | 40° | 3000~12500 |
V Belt runs longer and perform better if they are given the proper care and attention during installation.
Proper care as below:
→Check pulleys and make them aligned. Incorrect alignment may shorten the service belt life.
→Check the pulley main components and lubricate the working parts periodically.
→Pay attention to the pulley grooves and make sure they are all equal in dimensions.
→Check the pulley abrasion and remove any rust, dirt or grease that may influence belt usage.
→Ensure heat dissemination of pulley in belt operation.
V belt installation as follows:
→Locate belt by moving the motor
→Put belts onto the pulley one by one and locate belts first on the driving pulley
→Do not use a lever to force belt onto pulleys but turning pulley slowly can facilitate installation.
→Apply tension to prevent slippage at full loading and run 5 minutes and re-tension. If necessary, please re-adjust the tension after belts running a few days.
→Do not combine to use new and used belts in one set that may shorten belt life due to unbalanced stretch of belts.
WHO WE ARE:

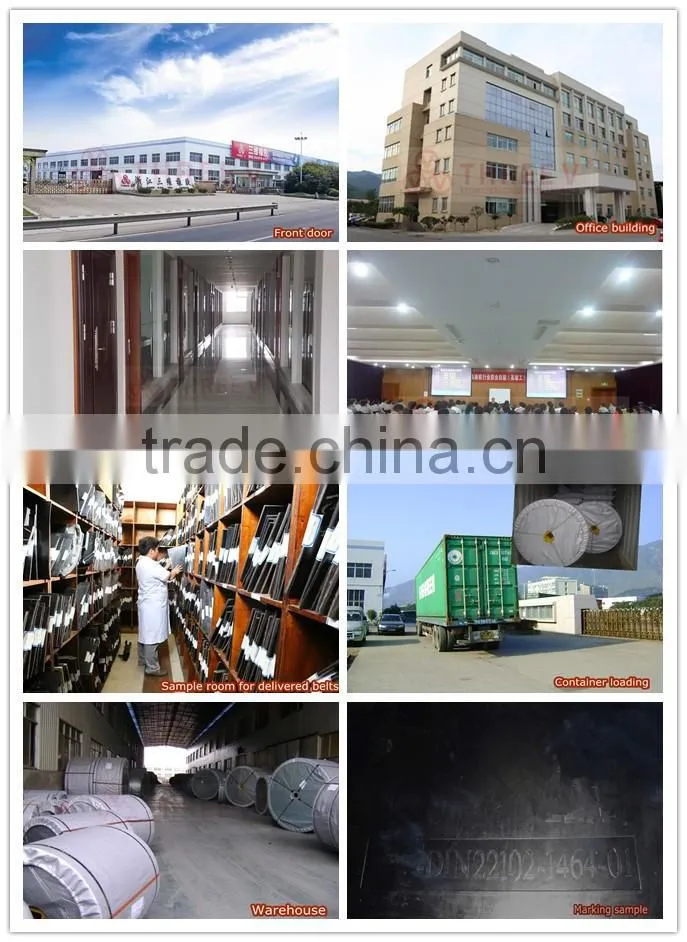

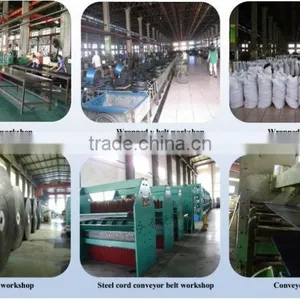

Zhejiang Sanwei Rubber Item Co., Ltd. manufactures an extensive line of Conveyor Belt and V Belt products constructed from polyester, polyester cotton, nylon and other fabrics to meet the most demanding bulk materials and various industrial applications. The product and service range reaches from expert advise, professional planning, conveyor belt and v belt technology and installation. Extensive testing and development methods ensure that our services are of excellent quality and our products in prime condition.
WHAT WE OFFER:
Various product includes: EP conveyor belt,NN conveyor belt, Steel cord conveyor belt, Flame retardant conveyor belt, High temperature resistant conveyor belt, Chevron conveyor belt, Cold resistant conveyor belt, Rubber V belt, Raw edge cogged v belt, Banded v belt, Agricultural v belt, Motor v belt, Variable speed v belt, etc. Customized service can be offered any time.
WHAT THE ADVANTAGES WE HAVE:

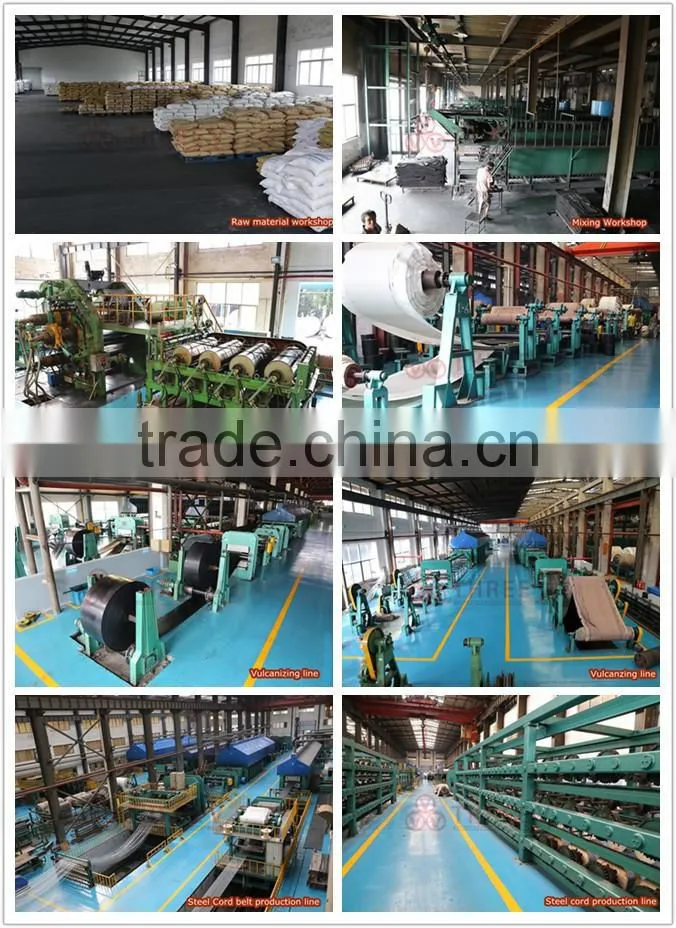

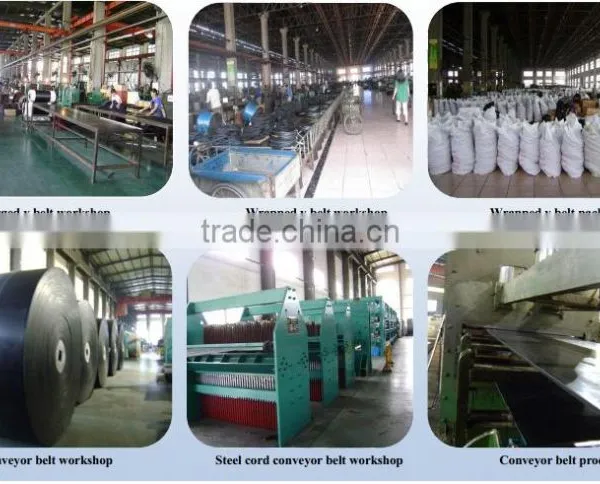

Production capability: Registered capital of 68 million RMB, and total assets of 720 million RMB, covering an area of 180,000 m2, including a floor area of 130,000 m2, we have about 1,400 employees, wherein 126 are technical personnel holding medium and senior professional titles. And the annual output of conveyor belt is 35 million m2., V belt is 350,000,000 Am. New equipment is upgrading and increasing every year.
Sales capability: Over $60million annually

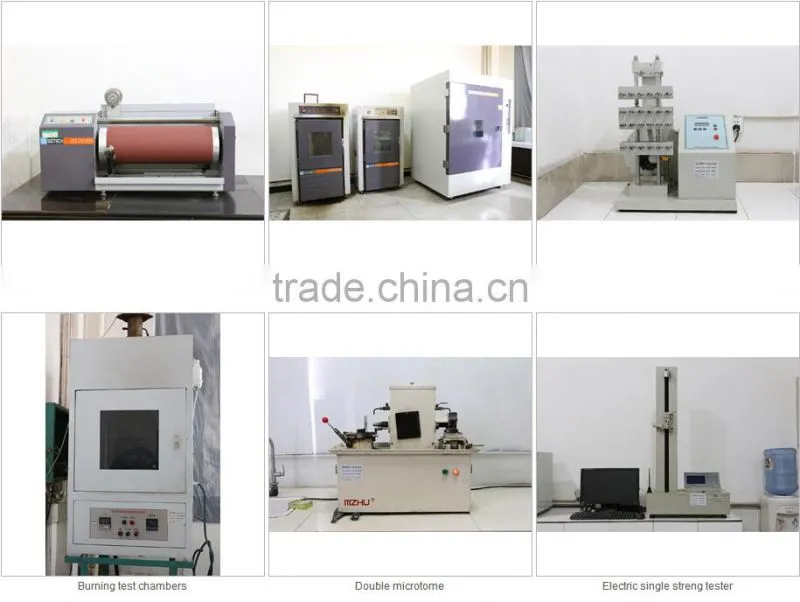

Testing capability: Our technical labs have always been upgrading for testing the physical, chemical, and component properties of materials and finished product.
Primary exporting market: U.S., Canada, UK, Brazil, South Africa, Mid-east, and Russia, etc
Maintenance and warranty service offered.
WHAT PRINCIPLE WE STICK TO:
Survive on Quality, Benefit from Management, Develop by High-tech.
