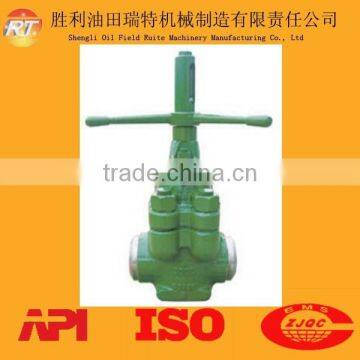

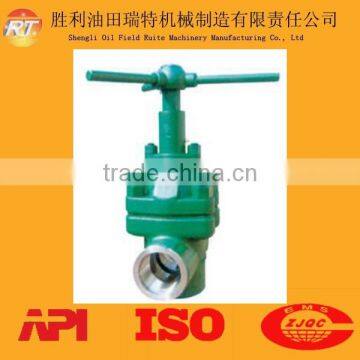

Mud Gate Valve From 2000 PSI to 5000 PSI API 6D Oil and Gas Industry

Product Name:  mud gate valve from 2000 PSI to 5000 PSI API 6D Oil and gas industry

Origin Place:Dongying City,China

Exported to Canada,America,Saudi Arabia,Kuwait,Iraq,UAE,Oman,Pakistan

Packing:Pallet or according to your requirement

The Mud Gate Valve,with superior design features precision workmanship and a proven priciple are engineered to meet the harsh drilling requirements in today's oilfield.

The Valve conforms to the standard flange dimensions and pressure rating of 3000 and 5000 PSI working pressure,the nominal size is 2",3",4",4"×5",and temperature service up to 400 F.

The Valve standard trim includes 316SS Gates 316SS Stems and Buna N seats,optional trims are available which include Ni Plated Carbon Steel,Monel and Aluminum Bronze gates.Seats are offered in Viton and Hypalon and optional 303SS Stem is available.

CONSTRUCTION

All the Valves conforms to API flange dimensions in all pressure class ratings.The valves have rising stems that are driven by a double threaded hub for quick opening and closing with minimum torque.The permanently lubricated stems and stem screws are fully sealed,which get high and low pressure sealing through support ring.

 APPLICATION FOR THE GATE VALVE

Mud pump lines and standpipe manifolds,oil and gas pipelines,sour gas and crude oil,corrosive water flood lines,cementing services,wellheads,well treating chemicals.

   ♦ Drilling and well-treating chemicals

   ♦ Sour gas and crude oil

   ♦ Abasive drilling mud

   ♦ Pipelines and manifolds

   ♦ Wellheads

   ♦ Water,oil and gas lines

   ♦ Cements and slurries

   ♦ Corrosive water flood lines

   ♦ Up to 5000psi and 400°c Fahrenheit services

Company information:

1, We are branch of Shengli Oilfield which is the second largest oilfield in China

2, We are the first class supplier to CNPC/Sinopec and PetroChina.

3, We have our own factories and some fixed cooperate company

4, We have API SPEC 6A/6D/16C and ISO certificate

5, most of products we export are Oil Pipes including valves, Casing, Tubing, Sucker rod and seamless pipes; Piping Valves

 and X-mass tree
