Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > Drilling Rig Workover Rig Offshore Rig Spare Parts Hooks Travelling System Oilfield Hooks
Drilling Rig Workover Rig Offshore Rig Spare Parts Hooks Travelling System Oilfield Hooks
US$ 1 - 1,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Ruite
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oilfield Equipment Swivel Spare Parts of Drilling Rig Workover Rig Offshore Rig Spare PartsUS$ 1 - 100MOQ: 10 Pieces -
Rotary Table Spare Parts of Drilling Rig Workover Rig Offshore Rig Spare PartsUS$ 1 - 1,000MOQ: 10 Pieces
-
Drilling Rig Workover Rig Offshore Rig Spare Parts Elevator LinksUS$ 1 - 1,000MOQ: 10 Pieces
-
Drilling Rig Workover Rig Offshore Rig Spare Parts High and Low Pressure Pipe ManiflodUS$ 1 - 1,000MOQ: 10 Pieces
-
Oilfield Equipment Top Drive Spare Parts of Drilling Rig Workover Rig Offshore Rig Spare PartsUS$ 1 - 100MOQ: 10 Pieces
Place of Origin
Shandong, China
Brand Name
Ruite
Condition
New
After-sales Service Provided
Overseas service center available
Specifications
1. API standard.2. ISO certificate.
3. Register with Sinopec.
4. Technical service.
5. Professional service for export.
Description

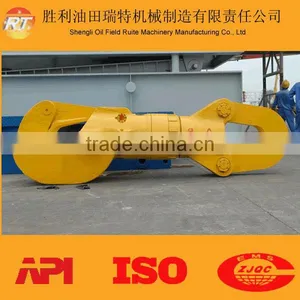

Hook consists mainly of the bail, the bail pedestal, cylindrical shell, hook body, hook lever, and spring, etc. The inner and outer springs are mounted inside the cylindrical shell, which enable stand to upspring after it is free.
A Safety positioning device is mounted upper the cylindrical shell. The positioning device can prevent the hook body from rotating when the empty elevator is hoisted. The positioning device will not work when the drill string is hanging. The hook body can rotate freely.
Hook’s braking device can lock the hook body at any eight even distributed position.
Hook’s safety pin body is locked by locking mechanism too.
A hydraulic cushion device is mounted inside the rotary hook to protect the drill pipe joint during brake-out.
A reliable safety device is mounted at the mouth of hook.
The nondestructive inspection (NDI) was conducted against the main loaded component of hook.
A Safety positioning device is mounted upper the cylindrical shell. The positioning device can prevent the hook body from rotating when the empty elevator is hoisted. The positioning device will not work when the drill string is hanging. The hook body can rotate freely.
Hook’s braking device can lock the hook body at any eight even distributed position.
Hook’s safety pin body is locked by locking mechanism too.
A hydraulic cushion device is mounted inside the rotary hook to protect the drill pipe joint during brake-out.
A reliable safety device is mounted at the mouth of hook.
The nondestructive inspection (NDI) was conducted against the main loaded component of hook.
| Item | Model | |||||
| DG225 | DG315 | DG450 | DG675 | DG900 | ||
| Max. hook load (kN) | 2250 | 3150 | 4500 | 6750 | 9000 | |
| Opening size of the main hook (mm) | 160 | 220 | 220 | 240 | 385 | |
| Spring stroke (mm) | 180 | 200 | 200 | 200 | 200 | |
| Overall dimensions | L(mm) | 2545 | 2953 | 2953 | 3541 | 4710 |
| W(mm) | 780 | 890 | 890 | 1075 | 1330 | |
| H(mm) | 750 | 830 | 880 | 1110 | 1300 | |
| Weight (kg) | 2180 | 3410 | 3496 | 5341 | 12100 | |
