Specifications
wheel skid steer loader1. CE certificate
2. Can be equipped more than 20 kinds tools
3. Easy operation and cheap price

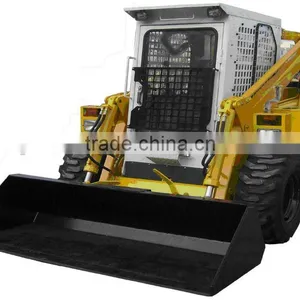

wheel skid steer loader
wheel skid steer loader JC80 designed for many work conditions, equipped with more than 20 kinds tools, such as road broom, break hammer, milling machine, vibratory roller, broom, snow sweeper, ice removal, snow pusher, ditcher, cement mixer, driller, sieve shovel, wood forklift, fertilizer forklift, wood forlift (bucket), combination bucket, loop bar, mouldboard, excavator, forklift, bond clear machine (clear forest fire preventing bonds), tree moving machine, digging arm and disc type ditcher ect.
We are a professional wheel skid steer loader manufacture with 15 years experiences in China, offering over 100,000 various kinds of wheel skid steer loader products and monthly output up to 1000 pieces. We are the best manufacturer that you can trust in China.
Rated operating capacity(kg) |
1000 |
Tipping load(kg) |
2000 |
Bucket capacity(m3) |
0.5 |
Operationg weight(kg) |
3400 |
Max. travel speed(km/h) |
12 |
Hydraulic pump flow(L/min) |
75 |
Fuel tank capacity(L) |
80 |
Tires |
12/16.5NHS |
Overall dimensions(mm) |
3345×1850×2040 |
Dimensions |
|
Height at maximum extension(mm) |
3780 |
Height to bucket hinge pin(mm) |
3450 |
Width with bucket(mm) |
1900 |
Track width(mm) |
1500 |
Wheelbase(mm) |
1020 |
Ground clearance(mm) |
260 |
Dump angle |
45° |
Dumping height(mm) |
2900 |
Rollback at ground |
26° |
Angle of departure |
20° |
Engine |
|
Maker/Model |
Deutz |
Net power |
80hp/2500rpm |
Type |
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
Displacement(L) |
4.2 |
Standard Configure |
|
Deluxe enclosed operator cab |
|
Hydraulic joystick controls |
|
Standard bucket |
|
Prehest starting assist system for extreme cold weather |
|
Auxiliary hydraulic couplers |
|
Optional Configure |
|
Cab fitted with a heater as standard |
|
Air conditioner |
|
2-speed transmission system |
|
