Specifications
wheel loader grapple forkwheel loader grapple fork

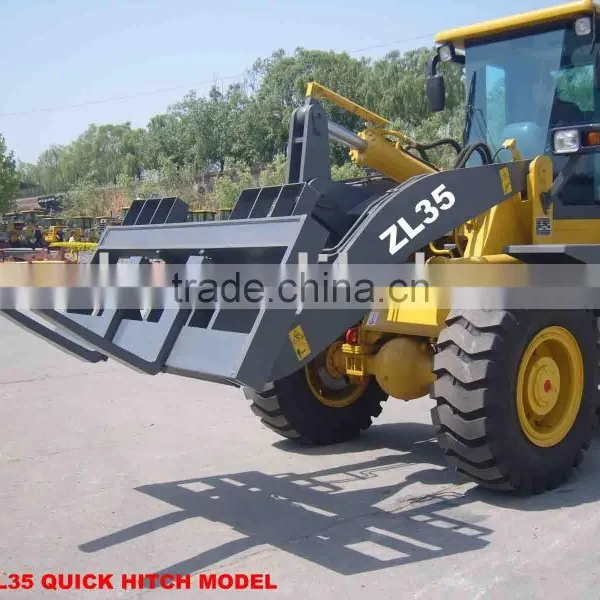

wheel loader ZL35 with quick hitch type, which designed for operating in stone yards, sand yards, coal yards, harbor and store houses to discharge goods from truck, engineering vehicle, cargo train, cargo ship ect., adopt the static liquid transmission system, variable motor, hydraulic sensor on load power steering, speed decelerating on side of the wheel, four-wheel drive, the forcipate disc type brake, hinge type frame.
Work with it, the efficiency will be promoted obviously.
1. The longest guarantee promise: 2 year
2. Delivery time: within 15 workdays
3. Sample tractor can order from us.
1. Most of easy worn parts such as oil filter, fuel filter, air filter, inner tyre etc. are delivered for 2 year, for every wheel loader.
1. Air Conditioner
2. Joystick
3. Quick Hitch
4. Fork
5. Rops Cabin
Lift fork, wood grasper, digger, snow pusher, excavator, snow transbox, grass grasper ... ...
quick hitch joystick board air condtioner cummins engine
SPECIFICATIONS:
| Model | ZL35 QUICK HITCH TYPE |
| Rated load (kg) | 3500 |
| Rated bucket capacity (m3) | 1.9 |
| Max. excavating power (KN) | 120 |
| Max. traction (KN) | 90 |
| Max. slope climbing (°) | 30 |
| Discharge height (mm) | 3400 |
| Discharge distance (mm) | 1070 |
| Min. ground clearance (mm) | 410 |
| Thread (mm) | 2600 |
| Wheelbase (mm) | 1800 |
| Height of bucket at top lift (mm) | 5050 |
| Lifting time (s) | 5.5 |
| Engine model | YC6B125-T10/Cummins/Deutz TD226B |
| Engine type | Inline, water cooled, four stroke, direct injection |
| Rated power (kw) | 92 |
| Rated speed (rpm) | 2200 |
| Transmission system | Gearbox separated from torque-converter |
| No. of shifts (forwards/backwards) | 4/2 |
| Max. running speed (km/h) | 36 |
| Steering | Fully hydraulic power steering |
| Max. turning radius (mm) | 5160 |
| Brake | Air assisted oil disc type on 4 wheels |
| Parking brake | Soft axis, cable control |
| Tyre | 17.5-25 |
| Overall size (mm) | 7020*2420*3000 |
| Weight (kg) | 9800 |
