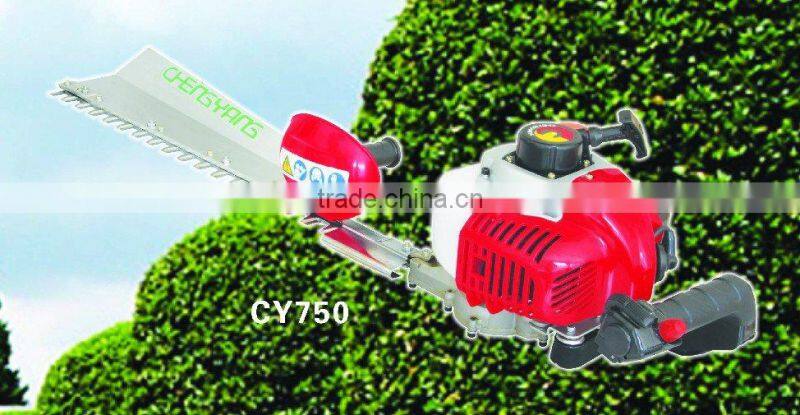

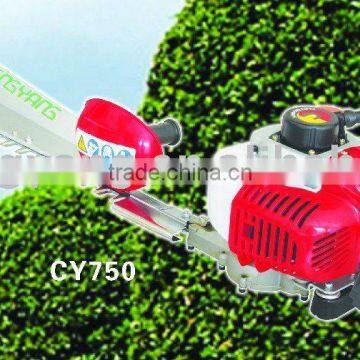

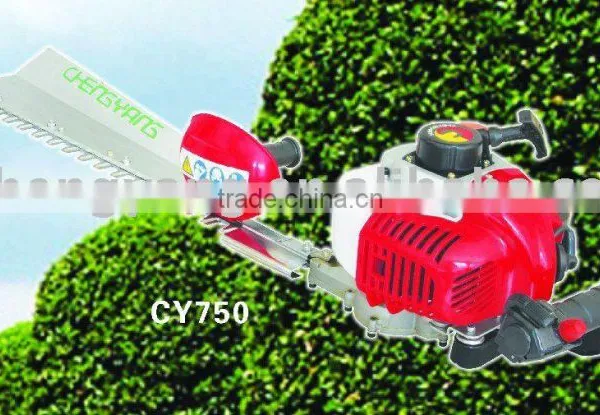

Horticulture Hedge Trimmer CY-750

Specifications

Hand Type Hedge Trimmer
Easy operation,680mm for blade length,displacement 22.5cc.
Metal is SS for blade.19 teeth.

Model:CY-750

Type:Hand

Measure:100*28.5*23cm

Net Weight:5.3kg

Engine:132F/ 22.5

Transfer type:Automatic centrifugation

Reduction Ratio:3.87

Blade Lenghth:680mm

Clutch touch:3600-3800

Max cutting:35mm

Productivity:more than 200 m2/h

Teeth: 19teeth single side

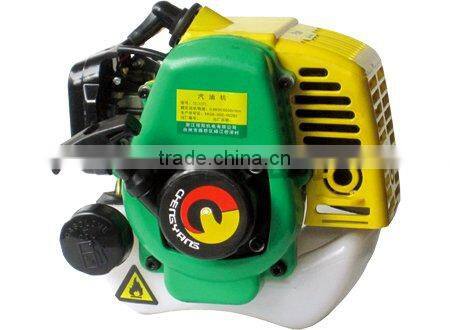

1E32F

Type:1-cylinder,2-stroke,air-cooled

bore and stroke:32*28mm

Max. power:0.68KW

Rated Power:0.65KW

Rated Speed:8500r/min

High Speed:10000r/min

Displacement:22.5cc

Fuel Tank:0.6L

Start System:Recoil

Ignition System:non-contact Transistorized

Fuel Oil:less than 610g/kwh

Carburetor:Pump-film

Measure:20*20*17.5cm

Net Weight:2.5kg



Purchase Step

1.Design             We supply customerized designs
2.Negotiation      The quality,price,material,deliverytime,
                          payment terms.ect
3.Place Order      According your own design or your chose our design
4.Production       According customers confirmed detail
5.Delivery Time   Delivery cargos by sea or by air,according
                         customers  request
