Brush cutter CY-328

Specifications

CY series of brush cutter features in quick start,efficient and easy handing which helps the operator get away from fatigue.

No matter it is wild grass in forests or weed in public greenland, the machine can easy to operate by even amateures.The machine has adopted min-light-motor.Free slanting in any angle is possible,no matter it is in operation,moving or maintenance.The application of new vibration-reducing materials in motor will reduce motor vibration and machine noise.Rolling speed can be freely adjusted according to grass density.The machine is applicable to garden trimming,roadside or field grass clearing,dense bush clearing and tree cutting.

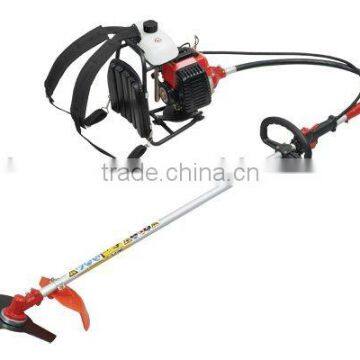

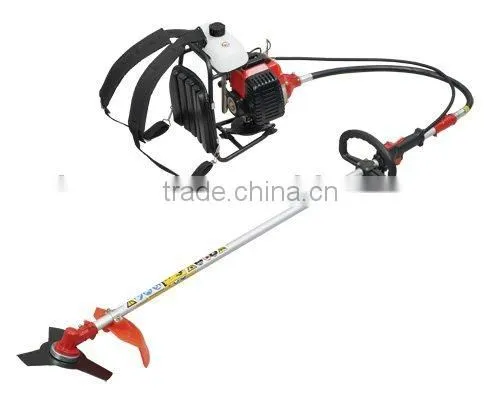

brush cutter CY-328

Model: CY-328

L/W/H: 188cm/68cm/47cm

Type of handle: Backpack

Cluth rotate speed r/m:3200-3400

Drive transfer style: automatism centrifugation

Max cutter width(mm):40

Transmission ratio: 1.25

Rotating direct of blade:anticlockwise

Blade: Rhombus 3teeth,4teeth,8teeth,30teeth,40teeth,80teeth,nylon cotting head

Engine: 1E40F-5

Noise dB(A):≤80

Type: 1-cylinder,2-stroke,air-cooled

Displacement: 42.7cc

Fuel oil: gasoline and two-cycle oil:25:1

Rated power/rated speed kw/rpm: 1.18/8500

Start system: recoil

Fuel tank: 1.0L

Fuel oil consumption ratio g/kwh: ≤690

N.W/G.W: 10.5kg/13kg

Engine case size: 340*330*460mm

Shaft case size: 160*100*150mm
