Cement render machine for wall Automatic render machine Wall plaster machine
This plastering machine is unique and perhaps one kind of automated rendering machinery ideally suitable for the construction/building industry. It works with conventional cement mortar which brings it to a smooth, flat finish with variable and adjustable thickness to suit each application. It makes renderings easier, faster, and effortless as compare to manual application. This time and money saving machine, keeps up with the ever changing world of building.
Feathers of plastering machine
Our machine utilize the conveyor taking mortar forwardly and upwardly.it can plaster to the roof by all means(no leave 1mm). In this aspect our machine is unique. The conveyor can take mortar or stop in any position by hand control.
1,The spatula can change the angle at will,plastering the wall by rising large angle,sharpening and pressing by angle decline,thus guaranteed zero vertical error and plastering to the roof.
2,The hydraulic telescopic rod can make this installation in 10 second and the chassis is not stress.When you want to move the machine you just can release the rod as moving jack. The main rod declined by gravitation,the bottom life automatically.This kind of installation is the most fast and stable one
3,The width of spatula is designed according the width of the door,The machine can go into the room freely.It can reach the inside corner and the exposed corner.
4,There are two min-vibrators after the spatula,thus you need not to worry about Hollowing and adhesion.
Technical Parameters
| Name | rendering machine |
Model |
JY-1000 |
Efficiency |
500 square meter/8h |
Power |
1.5kw |
Voltage |
220v/380v |
Plastering way |
Vibration plastering |
Vibrator |
3 vibrators |
Plastering height |
≤5m |
Plaster width/time |
80cm |
Plastering thickness |
5-30mm |
Perpendicularity degree |
Max 2mm |
Level degree |
Max 2mm |
Rising way |
Wirerope |
Moves |
Automatic Walking |
Lifting speed |
3.6 m/30s |
Host Dimension |
1.05m*0.8m*0.8m |
Console Dimension |
2.6m*0.3m*0.23m |
Total Dimension |
0.9 cubic meter |

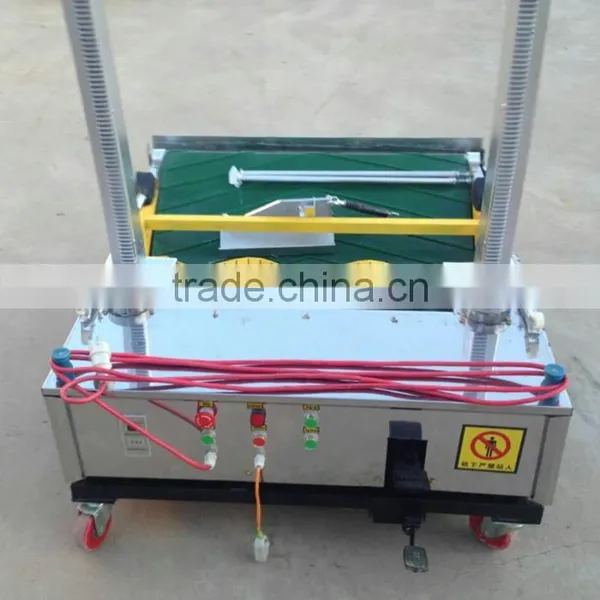

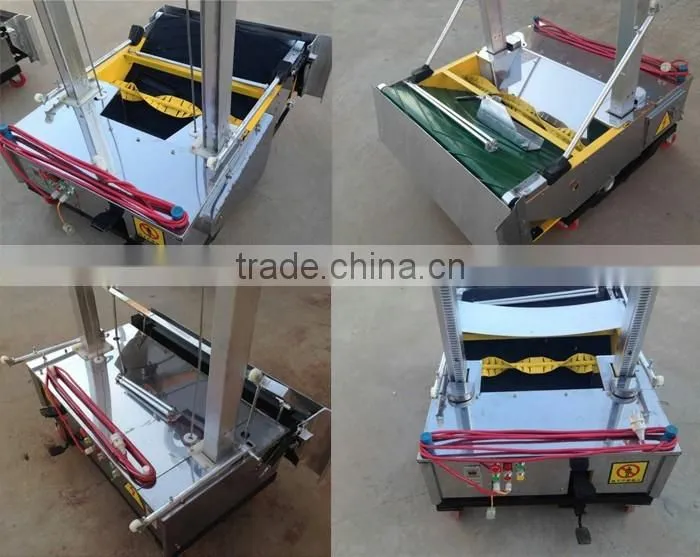

Pictures of plastering machine

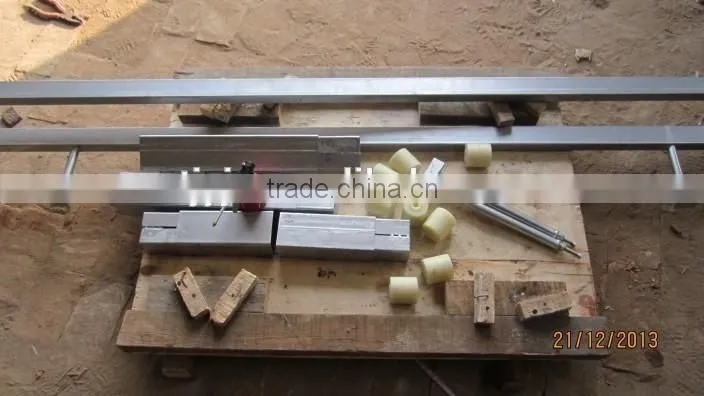

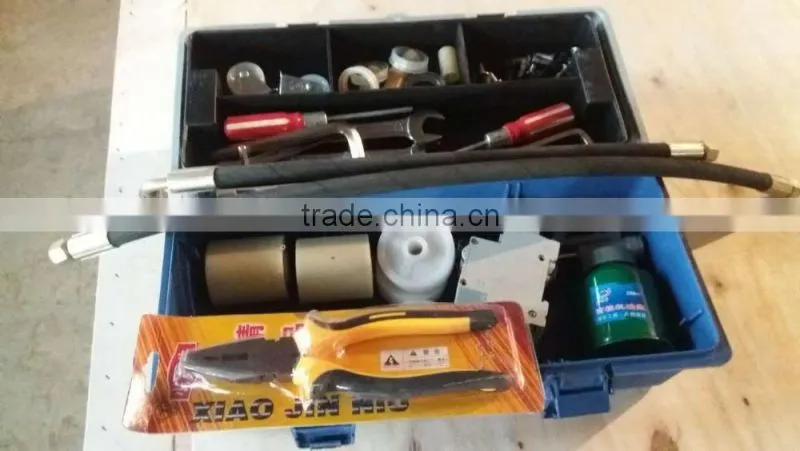

Parts and gears of the machine
1, Are you factory or only trading company?
We are factory, you can see our webiste, vertified as manufacturer not trading company.
2,what are the payment iterms?
otherwise,please contact within 2 days,Becuse we've bought insurance for you,we or shipping company
will be responsible!
Detail information
Mobile number:008615521298024( or what's app me)
Skype:rencrystal1
QQ:1137409716
