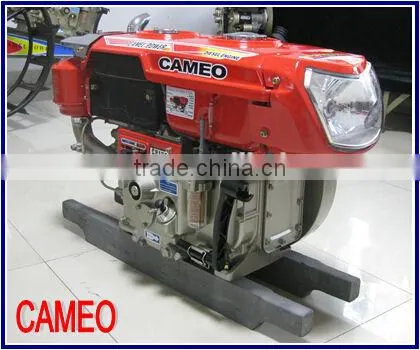

Help CenterA3-CP95 8.5HP/9.5HP Small Engine Diesel Engine Water Cool Engine
Related Products
-
B-CP95 8.5HP/9.5HP Water Cooled Small Engine Marine Diesel EngineUS$ 300 - 700MOQ: 10 Sets -
B-CP120 11HP/12HP Diesel Engine 12HP Diesel EngineUS$ 300 - 700MOQ: 10 Sets
-
B-CP110 10HP/11HP Water Cooled Diesel EngineUS$ 300 - 700MOQ: 10 Sets
-
C-CP95 8.5HP/9.5HP Single Cylinder 9.5HP Diesel EngineUS$ 300 - 700MOQ: 10 Sets
-
C-CP110 10HP/11HP Water Cooled 4 Stroke 11HP Diesel EngineUS$ 300 - 700MOQ: 10 Sets

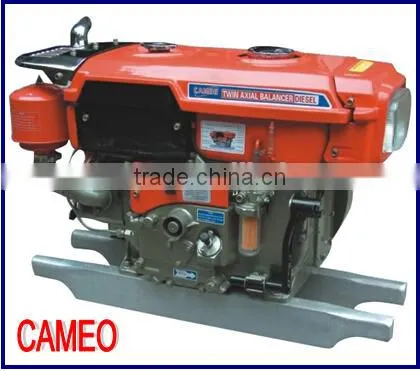

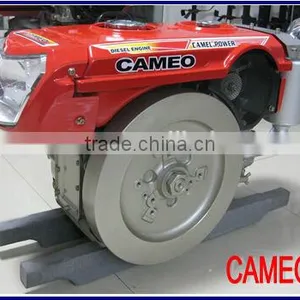

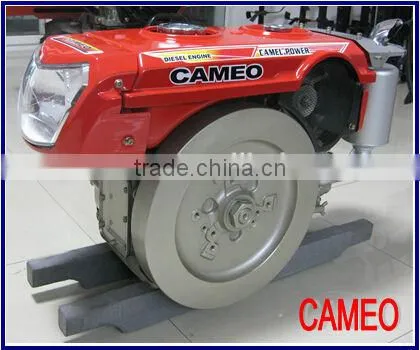

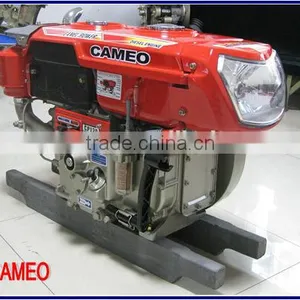

Product:
-- Small Engine Diesel Engine Rated Power 8.5HP
-- Small Engine Diesel Engine Max Power 9.5HP
-- Water Cooled Small Engine Diesel Engine
-- Single Cylinder Small Engine Diesel Engine
-- 4 Stroke Small Engine Diesel Engine
-- Swirl Chamber Small Engine Diesel Engine
Technical Specification:
Model |
CP95-A3 |
Type |
Single Cylinder; Horizontal; Four Stroke; Water Cooled; Swirl Chamber; Diesel Engine |
Bore×Stroke (mm) |
86×90 |
Compression Ratio |
21:1 |
Combustion Charmber Type |
Swirl-Chamber |
Rated Output |
6.25KW (8.5HP) |
Max Output |
6.99KW (9.5HP) |
Rated Speed (rpm/min) |
2400 |
|
Fuel Consumpution at Rated Output (g/kwh) (g/hph) |
≤286 (210) |
Max Torque (N.m) |
29.4 (3.0) |
|
Speed at Max Torque (rpm/min) |
≤1900 |
Lubrikation Method |
Pressure Combined with Splashing |
Cooling System |
Radiator Type |
Starting Method |
Hand Starting or Electric Starting |

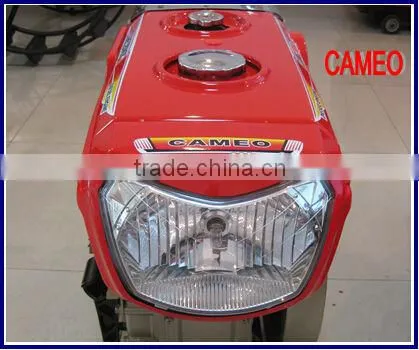

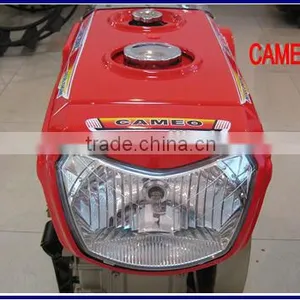

Head Lamp |
12V 45W/45W |
Net Weight / Gross Weight |
105/110 KG |
Packing Dimension |
830×380×645 |
Product’s Feature:
Compact in structure. Nice in appearance. Lighter in weight. Smaller in size.
Lower noise. Lower fuel consumption. Higher output.
Lower vibration. Smooth running. Reliable performance.
Easy to start. Easy to maintence.
Company Introduction:
Chongqing Camel Power Machinery Co., Ltd (CCPMC) is a manufacturer of agricultural machinery and an export base in Chongqing City in south of China.
Our factory specializes in producing high quality, medium and small power 4 stroke air cooled and water cooled diesel engines, walking tractors, generators and water pump sets.
Our well known brand“CAMEO”gained the honor of “The Best Export Brands of Chongqing for Priority Cultivation and Development in 2006-2007” from Chongqing Municipal Government.
Under the management of MBA degree members, national grade internal combustion engine experts and with the support of advanced production and inspection methods as well as a perfect product development and quality guarantee system, CCPMC passed ISO9001:2000 certification and the test of Thai Industrial Standard from Thai Industrial Standards Institute and Ministry of Industry of Thailand. It’s sound worldwide marketing and satisfactory after-sales service network makes our products more and more popular.
Now our annual production capacity of high and medium grade diesel engines, diesel water pumps, and diesel generators reaches 200,000 units.
CCPMC insists on the theory that “quality is eternal object; perfect product based on conscientious hard work”.
With exclusive technology and years’ manufacture experience, CCPMC hopes to cooperate with friends both at home and abroad for mutual benefit.
