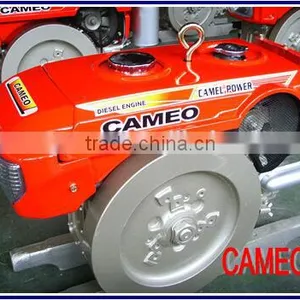

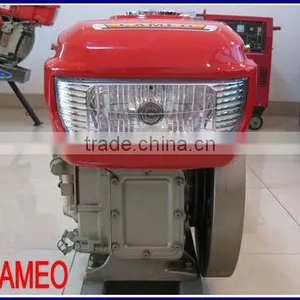

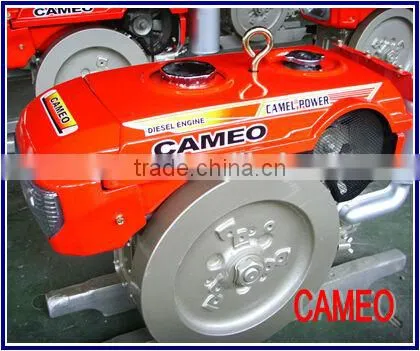

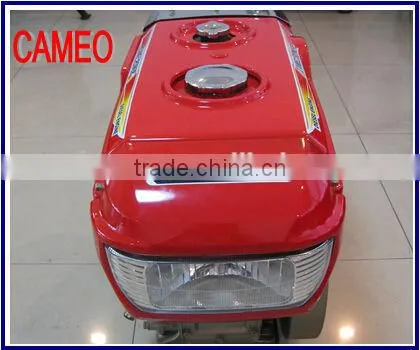

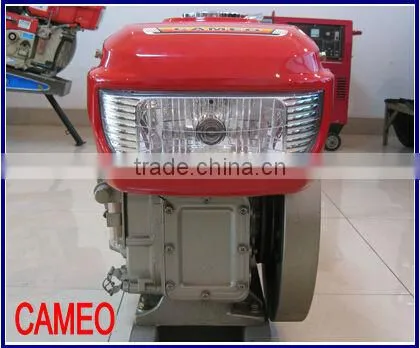

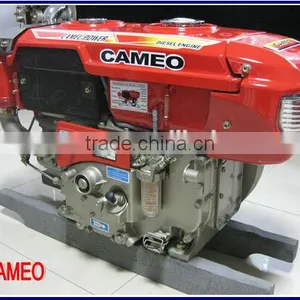

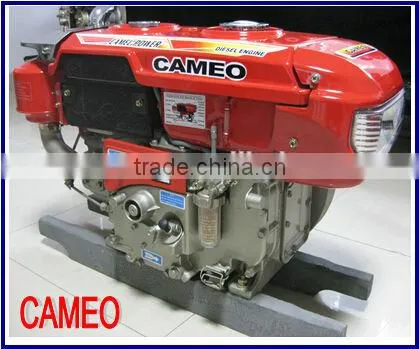

Diesel Motor:
-- Diesel Motor Rated Power: 11HP; Diesel Motor Max Power: 12HP
-- Water Cooled Diesel Motor; Single Cyliner Diesel Motor; 4 Stroke Diesel Motor

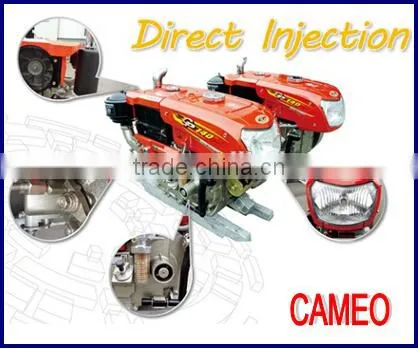

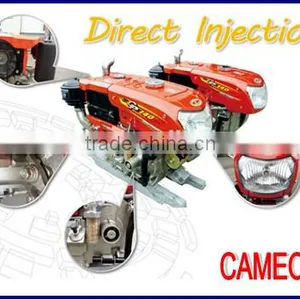

-- Swirl Chamber or Direct Injection Diesel Motor; Horizontal Diesel Motor
-- 115KG Diesel Motor; Small Diesel Motor
-- Recoil Hand Start or Electric Key Start Diesel Motor
-- Diesel Motor for Farming; Diesel Motor for Agriculture; Diesel Motor for Transportation
-- Good Diesel Motor; Relibale Diesel Motor
Diesel Motor Technical Specification:
Diesel Motor |
CP120-A2 |
Diesel Motor Type |
Single Cylinder; Horizontal; Four Stroke; Water Cooled; Swirl Chamber or Direct Injection; Diesel Engine |
Bore×Stroke (mm) |
94×90 |
Motor Compression Ratio |
21:1 |
Diesel Motor Combustion Charmber Type |
Swirl Chamber or Direct Injection |
Diesel Motor Rated Output |
8.09KW (11HP) |
Diesel Motor Max Output |
8.8KW (12HP) |
Motor Rated Speed (rpm/min) |
2400 |
|
Diesel Motor Fuel Consumpution at Rated Output (g/kwh) (g/hph) |
≤286 (210) |
Diesel Motor Max Torque (N.m) |
38.2 (2.9) |
|
Motor Speed at Max Torque (rpm/min) |
≤1900 |
Motor Lubrikation Method |
Pressure Combined with Splashing |
Diesel Motor Cooling System |
Radiator Type |
Diesel Motor Starting Method |
Hand Start or Electric Start |

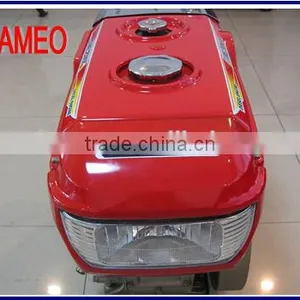

Diesel Motor Head Lamp |
12V 45W/45W |
Diesel Motor Net Weight / Gross Weight |
115/117 KG |
Diesel Motor Packing Dimension |
830×380×645 |
Diesel Motor Feature:
Diesel Motor Compact in Structure; Diesel Motor Nice in Appearance
Diesel Motor Lighter in Weight; Diesel Motor Smaller in Size.
Diesel Motor with Lower Noise; Diesel Motor with Lower Fuel Consumption
Diesel Motor with Higher Output; Diesel Motor with Lower Vibration
Diesel Motor with Smooth Running; Diesel Motor with Reliable Performance.
Diesel Motor Easy to Start; Diesel Motor Easy to Maintence.
Remark
Diesel Motor Color: Red, Blue, Green, Yellow, Orange, Etc
Diesel Motor Packing Condition: Common Carton Box or Wooden Box or As Required
Diesel Motor Delivery Time: 15 Days after Order Confirmed
Diesel Motor Delivery Way: By Sea, By Land, By Air
Diesel Motor Payment Term: T/T, L/C, Western Union, Paypale, Cash
Diesel Motor MOQ: 10 Sets
Diesel Motor Sample Order: Accepted
Diesel Motor OEM Service: Accepted
Company Introduction:
Chongqing Camel Power Machinery Co., Ltd (CCPMC) is a manufacturer of agricultural machinery and an export base in Chongqing City in south of China.
Our diesel motor factory specializes in producing high quality, medium and small power 4 stroke air cooled diesel motor and water cooled diesel motor, walking tractors, generators and water pump sets.
Our diesel motor well known brand"CAMEO"gained the honor of "The Best Export Brands of Chongqing for Priority Cultivation and Development in 2006-2007" from Chongqing Municipal Government.
Under the management of MBA degree members, national grade internal combustion diesel motor experts and with the support of advanced production and inspection methods as well as a perfect product development and quality guarantee system, CCPMC passed ISO9001:2000 certification and the test of Thai Industrial Standard from Thai Industrial Standards Institute and Ministry of Industry of Thailand. It's sound worldwide marketing and satisfactory diesel motor after-sales service network makes our diesel motor more and more popular.
Now our annual production capacity of high and medium grade diesel motor, diesel water pumps, and diesel generators reaches 200,000 units.
CCPMC insists on the theory that "quality is eternal object; perfect product based on conscientious hard work".
With diesel motor exclusive technology and years' manufacture experience, CCPMC hopes to cooperate with friends both at home and abroad for mutual benefit.
Diesel Motor:

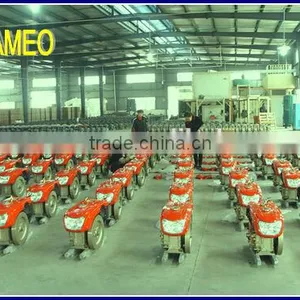

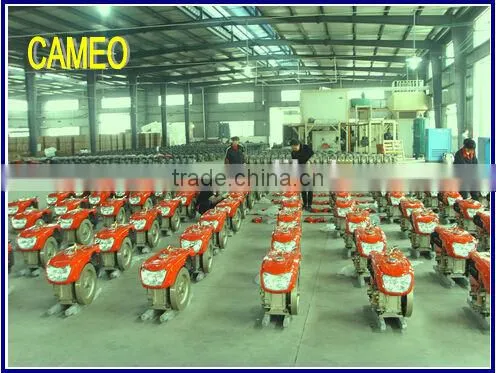

Factory:

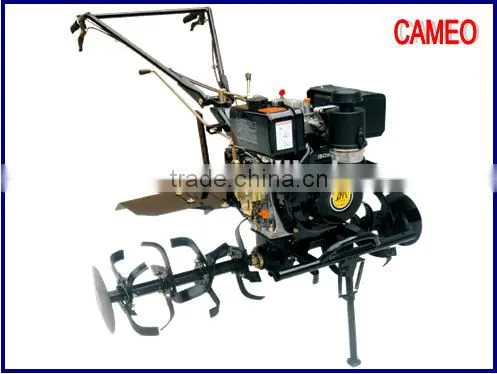

Other Main Products
