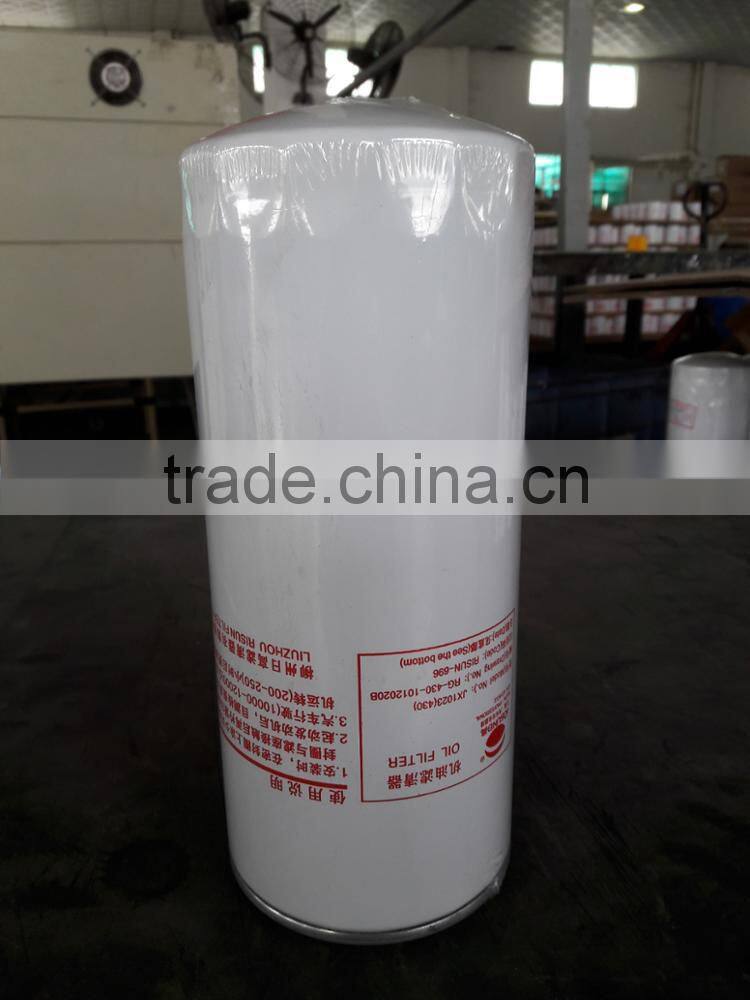

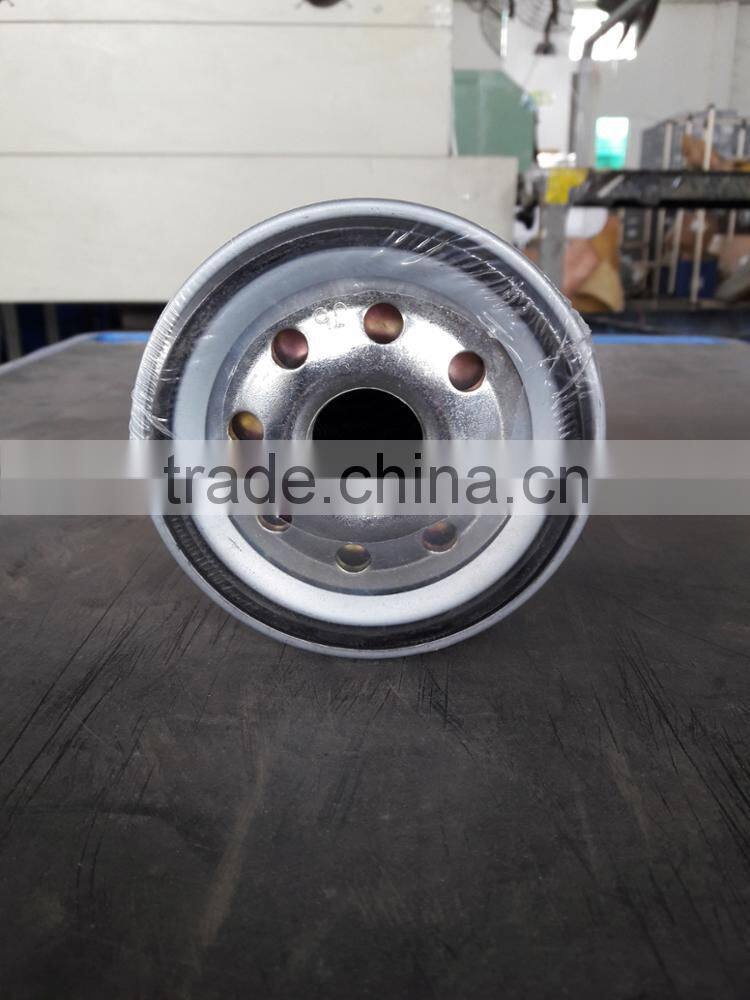

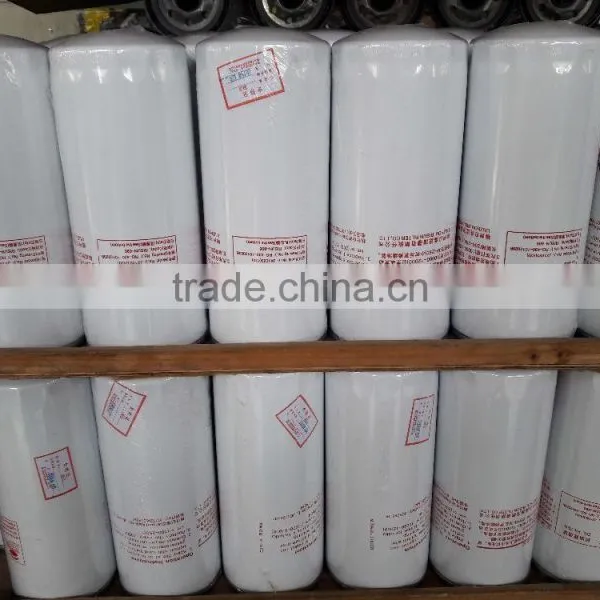

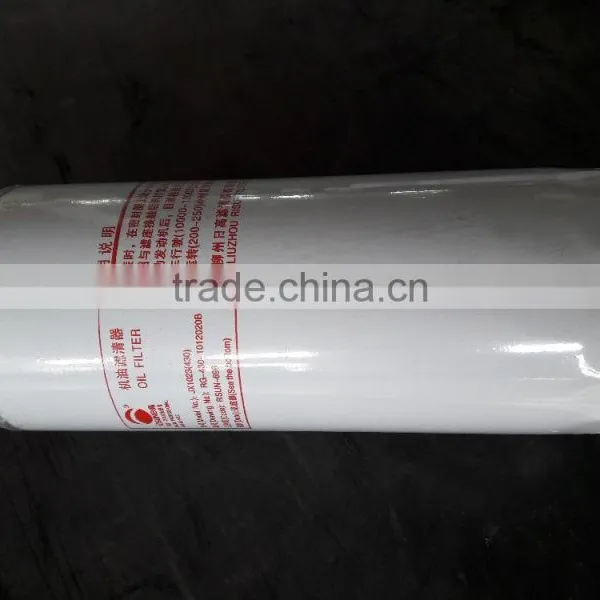

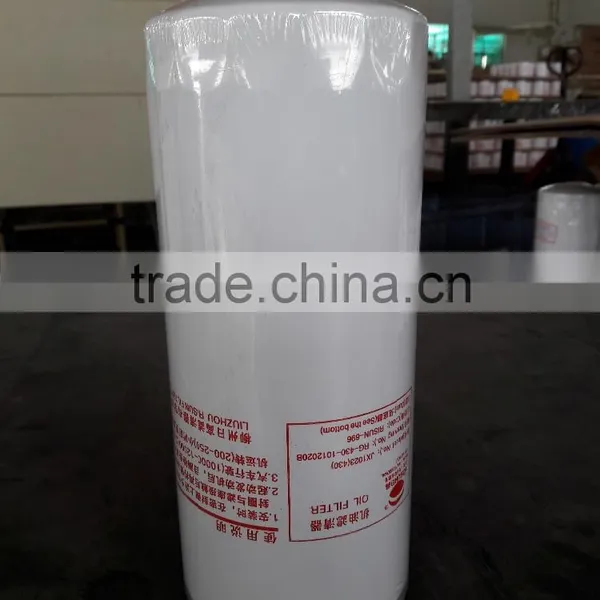

430-1012010D YC 6108ZQ engine oil filter
Product name: yuchai oil filter jx1013 m3000-1012240a
Risun model |
Drawing number of main engine |
flow L/min |
L×S×H(orφD×L)mm
|
Sealed washer inside/outside diameter |
JX1023C |
6108ZQ |
60 |
138*114 |
1 1/8-16UN-2B |
| No. | RISUN model | Drawing number of main engine | flow L/min | L×S×H(orφD×L)mm | Sealed washer inside/outside diameter | Cover connecting screw | Setting hole (mm) | applicable model |
| 1 | 430 | 430-1012020B-696 | 30 | φ109×265 | 91.5×101 | 1 1/8-16UN-2B | / | 6108ZQ |
| 2 | JX0813 | 186-1012000 | 22 | φ94×161 | 61×70 | 1-12UNF-2B | / | / |
| 3 | JX0816 | F3000-1012240 | 30 | φ94×198 | 61×70 | 1-12UNF-2B | / | / |
| 4 | J1012 assy | 640-1012010A | 30 | 155×125×232 | / | / | 2-φ11×65 | 6105G |
| 5 | JX0817 assy | 530-1012100D-696 | 44 | 140×106×270 | 61×70 | 1-12UNF | 2-φ11×65 | / |
| 6 | JX0817 | 530-1012120B | 44 | φ94×198 | 61×70 | 1-12UNF | / | / |
| 7 | JX0818C assy | D30-1012010C-696 | 32 | 137×106×298 | 61×70 | 1-12UNF | 2-φ11×65 | 4108Q |
| 8 | JX0818 assy | 645-1012100B | 44 | 140×106×270 | 61×70 | 1-12UNF | 2-φ11×65 | 6108Q,4110Q |
| 9 | T9000 assy | T9000-1012200 | 180 | 249×114×366 | 91.5×101 | 1 1/8-16UN-2B | 50/40 | 6T450C-20 |
| 10 | JX1011B assy | 640-1012200A | 30 | 148×114×224 | 91.5×101 | 1 1/8-16UN-2B | 2-φ11×65 | 04:6105G,6108Q |
| 11 | JX1011B | 640-1012210A-696 | 30 | φ109×158 | 91.5×101 | 1 1/8-16UN-2B | / | 04:6105G,6108Q |
| 12 | JX1013A assy | M3000-1012200C | 95 | 420×186×270 | 91.5×101 | 1 1/8-16UN-2B | 50/40 | 6M220G |
| 13 | JX1013A | M3000-1012240A | 60 | φ109×158 | 91.5×101 | 1 1/8-16UN-2B | / | 6M220G |
| 14 | JX1013B assy | M3200-1012200B | 120 | 109×114×422 | 91.5×101 | 1 1/8-16UN-2B | 50/40 | 6M320-20 |
| 15 | JX1013B | K2000-1012240 | 60 | φ109×158 | 91.5×101 | 1 1/8-16UN-2B | / | 6K1042-30 |
| 16 | JX1013 assy | M3400-1012200A | 120 | 249×114×259 | 91.5×101 | 1 1/8-16UN-2B | 50/40 | 6M360-20 |
| 17 | JX1023C1 assy | 430-1012010D | 60 | 138×114×333 | 91.5×101 | 1 1/8-16UN-2B | 2-φ11×65 | 6108ZQ |
| 18 | T9000-1030100 centrifuge | T9000-1030100 | 16 | 250x185x154 | 136x147 | / | 3-φ11 | YC6T480C-T8200-6-L6 |
We are a professional filter manufacturer with 40years experience, hoping to get win-win cooperations with your company! We are manufactured to the highest standard by companies fully accredited to the ISO/TS 16949:2009 Quality Management System. Our filters are tested for efficiency, lifetime, pressure drop across media, vibration, impulse, burst strength, and other exacting criterias at our testing laboratory.
♦ Products cover oil, fuel, air, hydraulic, and separator filters for automotive, commercial, and heavy equipments.
♦ Top 20 in China and 128 persons' R&D team for OEM service.
♦ "5S(Seiri, Seiso, Seiketsu and Shitsuke)" management.
♦ QSB and GMS through the guidance of SGMW.
Partners: Main Business Parnet: SGMW, Liugong,YuChai Engine, Wulin Liuji Power,FAW, Dongfeng,BYD, Atlas Copcower,FAW, Dongfeng,BYD, Atlas Copco.
Overseas Customers
Certification
The R&D team provides technical support for customized.
Send your drawings to us and all satisfactory will be guarantee!
Skillful and responsible personnel, pay attention to every product.
With advanced machinery and equipment, we satisfy the products requirement and make the product perfect.
1.Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liuzhou City, Guangxi Province, China. Direct High-speed train
from Guangzhou/Shenzhen to our city.
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A:Quality is priority. Risun is Original Manufacture , all our products been QA before shipment. Our factory has gained ISO/TS 16949:2009 authentication.
