Massey Ferguson Engine Main Bearing and Connecting Rod Bearing

Massey Ferguson Engine Main Bearing and Connecting Rod Bearing thumbnail-1
Massey Ferguson Engine Main Bearing and Connecting Rod Bearing photo-1
US$ 3.1 - 11.6 MOQ: 300 Sets
Key Specifications
Get Latest Price
Type:
Other, Engine Bearing & Slide Bearing
Size:
60.845 mm
Car Make:
Massey Ferguson
Contact Supplier Request Quote Chat Now
Guangzhou Longk Auto Parts Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Engine Bearing & Slide Bearing
Size 60.845 mm
Car Make Massey Ferguson
OE NO. B3022SA
Place of Origin Anhui, China
Brand Name Longk
Model Number Massey Ferguson
Warranty 12 Months

Massey Ferguson engine main bearing and connecting rod bearing



PERKINS
OEM NO. Engine model REF NO. DIAMATER PCS
B3022SA P3-144(144CID) P3-152(152CID) 85036 60.845 6
M4165SA   68084 74.105 8





1. Details of engine bearing.

(1) Optional Size: STD, +0.25mm, +0.50mm, +0.75mm, +1.00mm oversize.

(2) Surface Treatment: Three element electroplating, Four element electroplating.

(3) Material: Copper based alloys(CuPb24Sn), Aluminum  based alloys (AlSn20Cu),  AlSn8-10Cu.

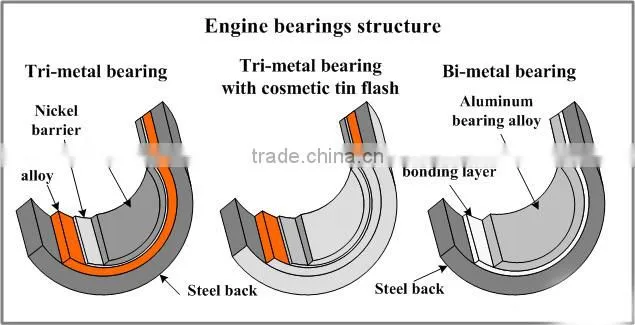

(4) Structure: Steel back, Copper/ Aluminum alloys, Nickel barrier, Overlay.

(5) Sample & Drawing are available to meet specification.



Engine bearing characters

• High strength overlay plate with reduced thickness
• Hardened steel backing on all connecting rod
• Increased crush and elimination of flash plating
• 3/4 grooving on Main Bearings providing optimum oil supply
• Tight consistent wall tolerances



Advantages of engine bearing

1) Good resistance to corrosion,  High thermal conductivity,  High wear resistance.

2) High temperature resistance,  High anti-fatigue intensity and superb resistance to impact.

3) Superb inlay,acclimatization and resistance to erosion, satisfy the requirements

    of the  engines with high rotating speed and loads.

4) Low friction coefficient,excellent friction characteristics and long service life.

5) Excellent carrying capacity.



Massey Ferguson engine main bearing and connecting rod bearing

Massey Ferguson engine main bearing and connecting rod bearing

Massey Ferguson engine main bearing and connecting rod bearing

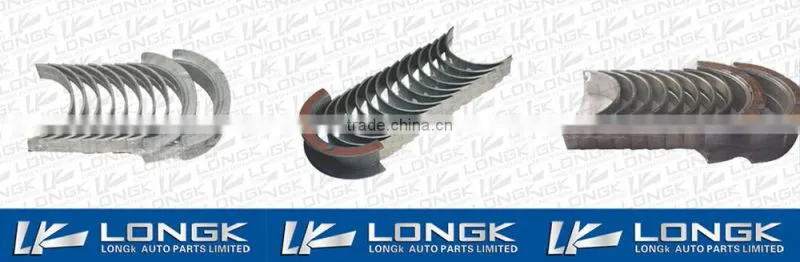

2. Except this model, we also supply con rod bearing, crankshaft main bearing for other engine models.



PERKINS
OEM NO. Engine model REF NO. DIAMATER PCS
B3022SA P3-144(144CID) P3-152(152CID) 85036 60.845 6
M4165SA   68084 74.105 8
B4309SA P4-192(192CID) P4-203(203CID) P4-288(288CID) 85035 60.845 8
M5133SA 68082 74.105 10
B6291SA P6-288(288CID) P6-305(305CID) P6 P6M PF 60.845 12
M7156SA 4341M 74.105 14
B4438SA 4-212(212CID) 4-236(236CID) 85042 67.221 8
M5212SA 81558 80.441 10
U5ME0003 4.4PERKINS 67.221 12
M5232SA 4.300 4A.300 4.318.2 A4.318 114.3*127 4 CYL 80.442 10
M5212SA 4.318 5.2 LITRE 1968- 114.300 4 CYL 80.442 10
M7377SA 6-354 .4 5800CC 68079 80.441 14
B6341SC 85043 67.221 12
M5250SA V8.510 8.36 LITRE 1965- 107.950 8 CYL 106.32 10
U5MK0100 P3-144 P3-152 14
U5MK0265 4-212 212CID 236CID 18

Massey Ferguson engine main bearing and connecting rod bearing Massey Ferguson engine main bearing and connecting rod bearing





3. We have developed crankshaft bearing and connecting rod bearing for following vehicles, too.

Massey Ferguson engine main bearing and connecting rod bearing



  Fit for   Cars,   Trucks,   Tractors,    Excavators,    Forklifts,    Construction Vehicles.

Massey Ferguson engine main bearing and connecting rod bearing

Massey Ferguson engine main bearing and connecting rod bearing





4. Quality Guaranteed.

(1) ISO 9002 and TS 16949 certificate.

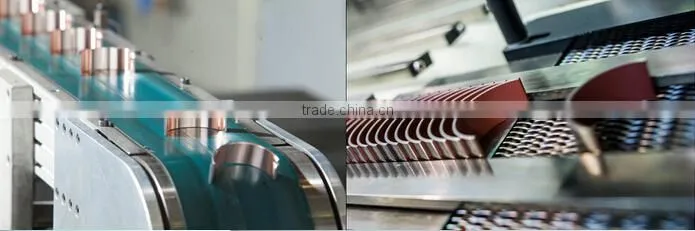

(2) Advanced Machine and Professional Technology.

(3) Safe Packing & Timely Delivery.

(4) Professional team with best service.

(5) 12 months warranty & 100000 miles guaranteed.

                    We keep on producing the high quality engine bearings for you.

Massey Ferguson engine main bearing and connecting rod bearing





5. FAQ:

(1) Q: Size?

      A: We can make the size of STD, +0.25mm, +0.50mm, +0.75mm, 1.00mm. The size can be decided according to your requirement to meet specification.



(2) Q: Material?

      A: Copper based alloys(CuPb24Sn), Aluminum  based alloys (AlSn20Cu),  AlSn8-10Cu, etc. Different material has different price and functions.



(3) Q: Packing?

      A: We usually offer neutral packing, also make your own packing depend on quantity.



(4) Q: Advantage?

      A: 12 years abundant experience, thounds of engine models, good company reputation. Always ready to offer you good quality products and best service.



(5) Q: Contact ?

      A: You can send us the inquiry, with quantity and other requirements.



Welcome to contact us for your requirements.
