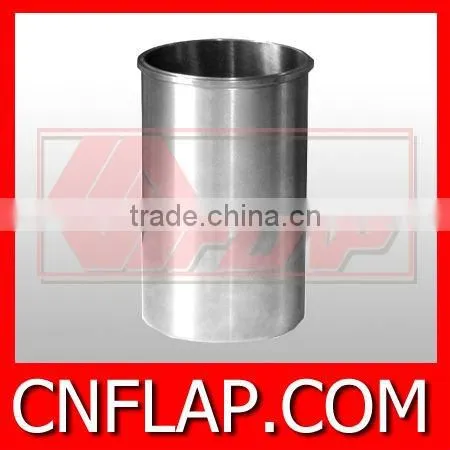

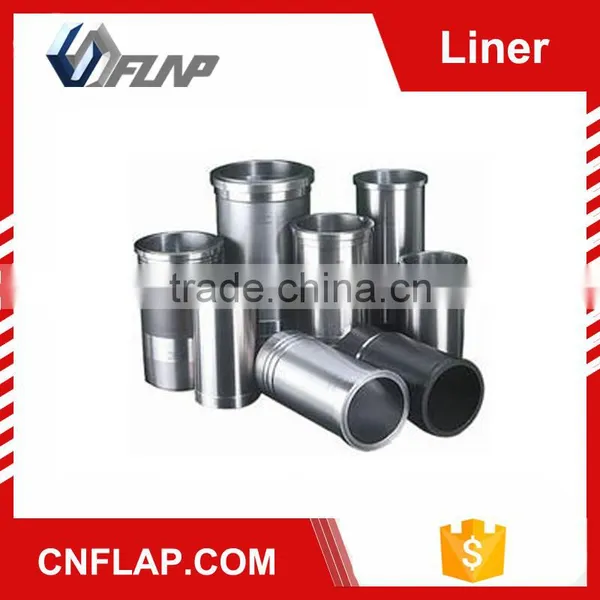

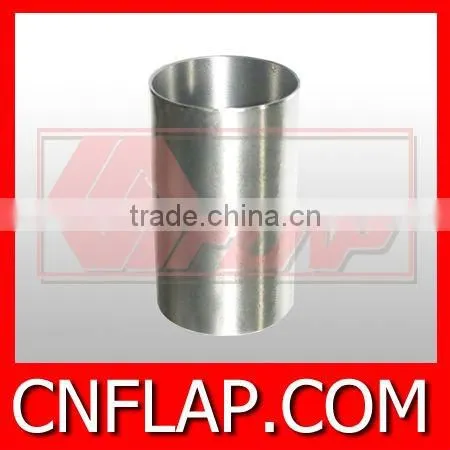

Toyota Cylinder Liner

Toyota Cylinder Liner thumbnail-1
Toyota Cylinder Liner thumbnail-2
Toyota Cylinder Liner thumbnail-3
Toyota Cylinder Liner thumbnail-4
Toyota Cylinder Liner thumbnail-5
Toyota Cylinder Liner photo-1
Toyota Cylinder Liner photo-2
Toyota Cylinder Liner photo-3
Toyota Cylinder Liner photo-4
Toyota Cylinder Liner photo-5
US$ 10 - 50 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Type:
Cylinder Liner
Size:
85.4*90*150, 85.4*90*150
Car Make:
TOYOTA
Contact Supplier Request Quote Chat Now
Guangzhou Cnflap Auto Parts Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Cylinder Liner
Size 85.4*90*150, 85.4*90*150
Car Make TOYOTA
OE NO. 11461-64090
Place of Origin Anhui, China
Brand Name cnflap
Model Number 2C
Warranty 12 Months

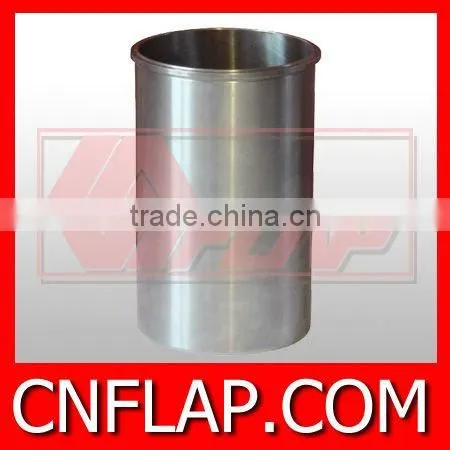

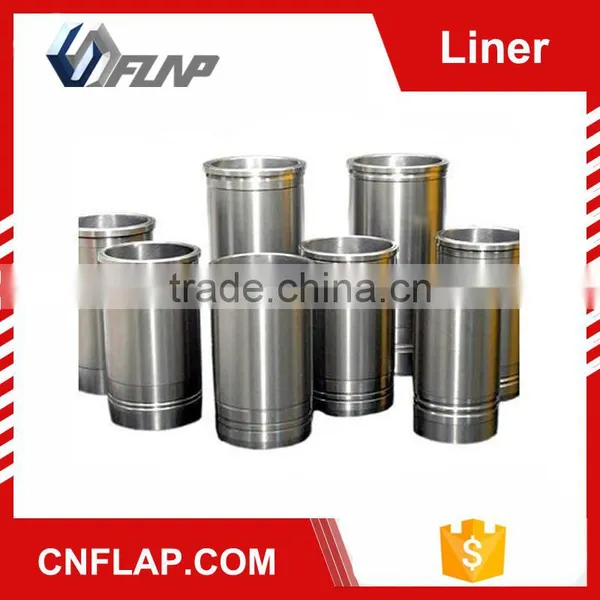

toyota cylinder liner

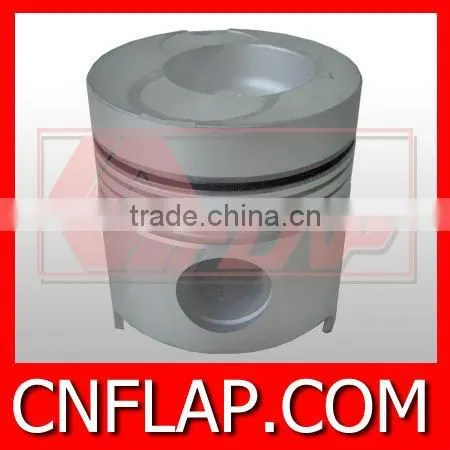

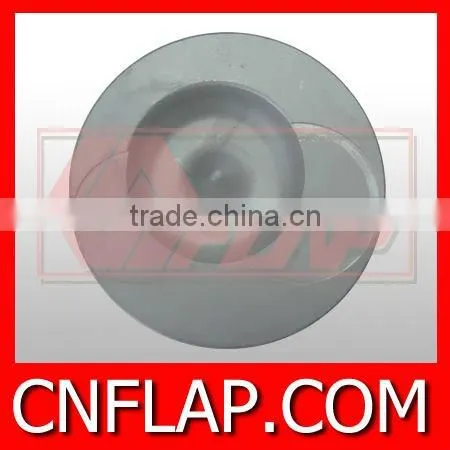

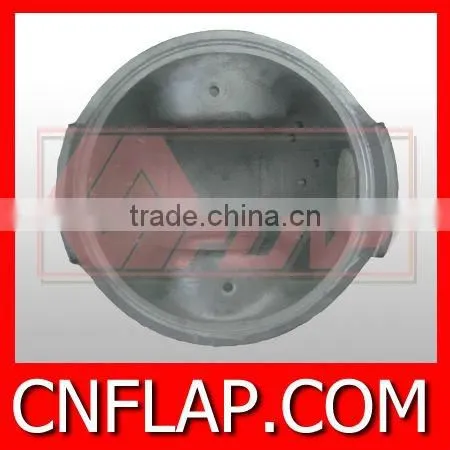

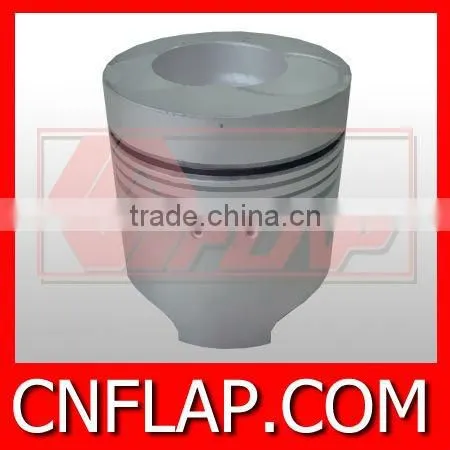

A: 2C engine piston

   Application for Toyota engines:

   Piston details:
   Dia: 86
   GL:  77
   KH:  47
   Pin Dia: 27
   Length:  58



B: For Toyota engine details:

   we can offer the following engines as well:
   1. 2B                  2. 5L
   3. 1FZFE New           4. 13B
   5. 14B                 6. 15B
   7. 3B                  8. 2L/2LII
   9. 2C                  10. 2CT
   11. 1RZ                12. 2Y
   13. 3Y                 14. 4Y
   15. 2L/2LT             16. 3K/4K EP70 EP80 EP90K/KE30
   17. 2E/EE80/EE90
   18. 3L
   19. 2Z

Cnflap NO.                      Engine Reference NO.

Size

(Inside Bore*Outside Bore *Total Length)

 Note Weight
CF-TYT-001-03 2B

11461-57010

SU351239

Liner kit: TODKT1701

 98*102*190   1.05
CF-TYT-001-03 2C 11461-64090 85.4*90*150   0.68
CF-TYT-002-03 2L

114615403060

607WT03

 92*96 *160.5 DRY 0.7
CF-TYT-003-03

11B

BU65

 11461-56030 94*99*190   1.05
CF-TYT-004-03 B/BU30 1146-56020 94*102.1*190   1.7
CF-TYT-005-03 3L 11361-54100-90 96*100*190.2 DRY 0.875
CF-TYT-006-03 15B

11461-58080

liner kit:   TYKT1580800

 108*112*200
CF-TYT-007-03 2C-T

11461-64090

11461-64060

 86*90*154
CF-TYT-006-03 2B 11461-57010 97*102*190 DRY(SEMI) 1.05
CF-TYT-007-03 5L 11012-2S611 99.5*103.5*190
CF-TYT-008-03 14B 11461-58040 101.2*106*196
CF-TYT-009-03 13B 11461-58020 101*106 *190.5 DRY(SEMI) 1.1
CF-TYT-010-03 3B

1146158020

11461-58010

 101*106 *188 DRY(SEMI) 1.1
CF-TYT-011-03 2D   105*120.7*233   3.2
CF-TYT-012-03 2Z

1146178700

 Liner kit:  TYKT1787000

 98*101*181.5





C: and also, for Japanese engines, we have the following brand:
    Mazda, Nissan, Mitsubishi,Hino,Isuzu, Toyota,  Komatsu ......



D: Production details:

1. Cylinder liner/ sleeves  Material: Boron-containing Alloy Cast Iron
2. Cylinder liner/ sleeves  Treatment: laser quenching, high-frequency quenching
3. Cylinder liner/ sleeves  Feature: Dry, Wet & Air Cooled Blocks
4. Certification:TS16949, ISO9000, ISO 9002
5. Our cylindee liner MOQ is 1000pcs.



E: Gurantee for the piston:

   1. we strictly adhere to the GB1148-82,JB3931-85 and JB3932-85 Criterion

   2. send sample for check before delivery



F: Packing details:
   1. we can design the packing by your requirements but with bigger quantity

   2. if need wooden pallets, the customer needs to pay for the wooden pallet charges

   3. if no requirements,we offer the Corrugated Carton and vellum paper
