Marine Engine Iveco Parts 8040.25 Piston

Specifications

marine engine iveco parts 8040.25 piston:
1.Professional manufacturer
2.TS16949,ISO 9000,ISO 9002 certificate
3.Guaranty1year

marine engine iveco parts 8040.25 piston







CNFLAP AUTO PARTS



--Professional Engine Parts/ Accessories Supplier in China.



--Quality First, Customer First, Pioneering and Innovative.







About Products



Common Materials



Aluminum Alloy (lighter in weight and higher thermal conductivity); Senior Cast Iron (heavier in weight, greater strength and resistance to wear);

Heat-resisting Steel, Hypereutectic Al-Si Alloy, Hypoeutectic Al-Si Alloy, Eutectic Al-Si Alloy, Multi-Cast Iron and Ductile-Cast Iron etc.



Piston Process



Casting, Forging, Melted Metal Squeezing.



Piston Structure



Piston Head, Piston Pin Bore, Piston Pin, Skirt, Ring Grooves, Ring Lands and Piston Rings.



Piston Types



Solid Skirt Pistons, Shim Type Pistons, Strut Type Pistons, Ring Carrier Pistons, Strut with Ring Carrier Type Pistons, Keystone Groove Pistons, Oil Cooled Pistons.



Different Features



Phosphating, Top Oxidization, Top Molybdenium Disulfide, Sn(tin)Plated on Skirt, Graphite on Skirt, Alfin, Double Alfin, None Alfin, Steel Pieces,

Drilling, Oil-cooling Channel, Three or Four Ring Grooves, Ceramic Spraying and Hard Iron Plating etc



engine piston Fiat/iveco :  for Fiat/iveco engine piston



we are the manufacture for piston, piston ring, cylinderliner. we have produced the following engine types:

Fiat/iveco piston engine type:

8140.61.200.300 (2.5D)  0070400	93	96.75	58.8	3	32	Graphite
				2	75
				4
8140.63,3700,8140.63 4000(2.8D), 0098900	94.4	87.7	58.7	2.5T	32	Alfin, Skirt graphite printed, Oil cooling channel
				2	72
				2.5
8025.02,8045.02,8060.12       80616,3510A,0079600	100	101.2	59.6	2.5	32	No Alfin
				2.5	83.5
				5.5
480N                            4013                             4017	100	108.6	65.2	1.5	38	No Alfin
				1.5	85
				4
8035.05                               8045	104	108.5	65.2	2.5	38	No Alfin
				2.5	85
				4
8030.05                     8035.05                       8040.05                     8065.25	104	104.3	65.2	3.6T	38	Alfin, Skirt graphite printed
				2.5	84.9
				4
8040.25.000                      KS No.0082100	104	104.2	65.1	3	38	Alfin, Skirt graphite printed
				2.5	85
				4
8210.02.00.R6        0084600	137	167	92	4	48	Alfin , Sn plated, Oil cooling channel
				3	117
				3
				5.5





Pictures for Fiat/Iveco 8040.25.000; KS No.0082100:

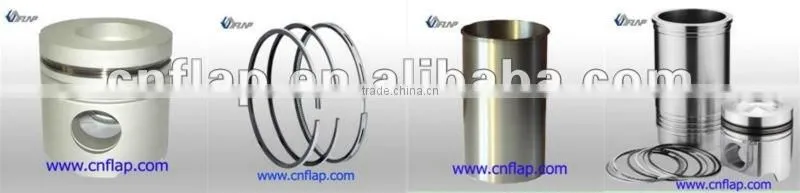

We also have the following products:



Pics for our pistons treatment:



Pictures for our piston rings:





Our advantages:
