Truck part S6D155 piston

1. Neutral blank packing 45*42*38
2. Your own brand packing
3. Wooden packing
4. OEM genuine packing

Specifications

S6D155 piston
1. Alfin
2. Stocks delivery in 3-5 days
3. Over 20 years experience

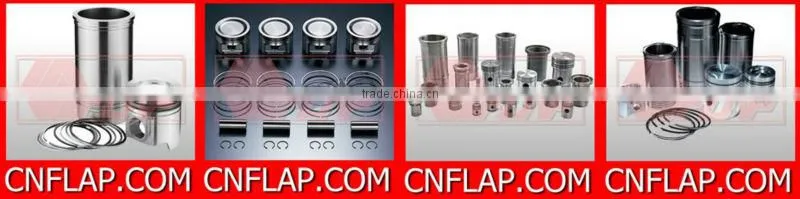

Truck part S6D155 piston, piston ring, cylinder liner



A: S6D155 engine liner kits

   Application for Komatsu engines:

C/F-No	E-Model	OEM No	Piston Size		OEM No	Ring Size	OEM No	Liner Size
CF-KU-09	S6D155	6127-31-2140 6127-31-2030 6127-31-2410	Dia:	155	6128-31-2022 6128-31-2033 SDK04-008 3R55S01  6128-31-2060 6128312070  R18370	3.68 3.548 4.737	6128-21-2215 6128-21-2214 6128-29-2210 3L55S01-FNP  6128-21-2216  3A55S01 KMKT2711400	A:	155
			GL:	167.5				B:	184
			KH:	102.5				C:	327
			Pin Dia:	60
			Length:	129.9
			Remark	alfin



B: For Komatsu engine details:

   we can offer the following engines as well:
   1. 4D95L/6D95L
   2. S6D95-6
   3. S6D95-5/6D95L-1/S4D95L-1A
   4. S4D102E-1/S6D102E-1
   5. S6D105-1
   6. SA6D108-1
   7. S6D110-1C
   8. S6D125-1
   9. S6D155
   10. NH220
   11. 4D105-5H


C: and also, for construction machine engines, we have the following brand:

   caterpillar, Komatsu, Cummins, Detroit ......



D: Production details:

A.Our piston details:

1. Piston Material : ZL109 Aluminium Alloy , Alloy cast iron.
2. Piston Type :1 Steel-insert piston , 2 ALFIN piston , 3 Cast Iron piston , 4 Cooling channel piston , 5 One piece casting piston , 6 Compages piston , 7 Forged piston
3. Piston Feature : Satin Anodised Aluminium ,phosphating , Alfin ,Double Alfin , No Alfin ,  Graphite , Oil cooling channel , Sn(tin) plated , Steel Piece , Top Oxidization , Skirt Graphite Printed , Three or Four Ring Grooves ,Ceramic Spraying
4. We can offer you  The 1 Steel-insert piston , 2 ALFIN piston , 3 Cast Iron piston , 4 Cooling channel piston , 5 One piece casting piston , 6 Compages piston , 7 Forged piston piston, 8 Two pieces piston/Double piston

1. Chemical Elements of materials for piston:  Aluminum: ZL109

       Cu: 0.5~1.5                   Si: 11.0~13.0             Mg: 0.8~1.3           Zn: 0.20max

       Fe: 0.70max                  Mn:0.20max               Ni:0.8~1.5              Ti:0.20max

       Sn:0.05max

2. materials for the piston pin:  40CrMo.

        Cu:0.38~0.45         Si:0.17~0.37                 Mn:0.50~0.80

        Sn:<0.0035             Cr:0.90~1.20                Mo:0.15~0.25

         Ni:allow to the impurity less than 0.030

         P:allow to the impurity less than 0.035

B.Our Piston ring details:
1. Piston ring Material : Cast iron , Alloy , Steel
2. Piston ring Feature  : 1 Chrome-plating ,2 Line-honing ,3 nitridation , 4 phosphating , 5 Molybdenum plated(Moly-inlaid) ,6 Nitrided ,7 Oxidized,8 Nano,9 Zirconium-plating ,10 Sandblasted ,11 Special honing, 12 Titanium-plating, 13 Rail With Teflon



C.Our Cylinder Liner details:
1. Cylinder liner/ sleeves  Material :  Boron-containing Alloy Cast Iron
2. Cylinder liner/ sleeves  Treatment:  laser quenching , high-frequency quenching
3. Cylinder liner/ sleeves  Feature :  Dry, Wet & Air Cooled Blocks
