Specifications
engine connecting rod bearing for Alfa 145 96-1.High technology
2.stable thermal performance
3.Inner wall reserve oil exce

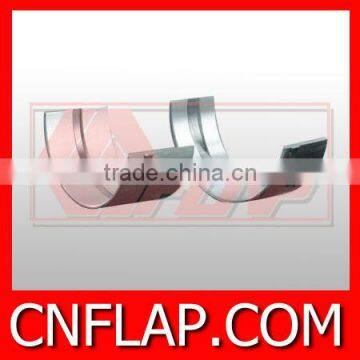

engine connecting rod bearing for Alfa 145 96-
Product of Connecting rod bearing information
| Number | Engine No. | used for | FM NO. | Part No. | vandervell | OD | Overall Length | Wall thickness | PCS |
| R | AR 67106 AR 67204 AR 16201 | Alfa 145 96- | 44350CP | 4350CP | VPR04044LA | 53.913 | 19.5 | 1.534 | 8 |
| R | VPR04118LD | 53.909 | 19.5 | 1.54 | 8 | ||||
| M | 7255M | 4351RA | VPM92829A | 56.718 | 20.75 | 1.843 | 8 | ||
| 4352CP | 56.718 | 20.75 | 1.843 | 2 |
1.The function of the bearing
Engine bearing means the certain shraft of the rack support the other part of the rotational position .It is mainly used to support shraft and pass its motion shaft load
ing conditions
1)The high alternating load
2)High Sliding friction velocity and high temperature
3)In three states of a liquid, semi-liquid and dry friction alternating
4)Corrosion lubricant
5)Abrasive friction
6)The function of edge loads
7)Static load

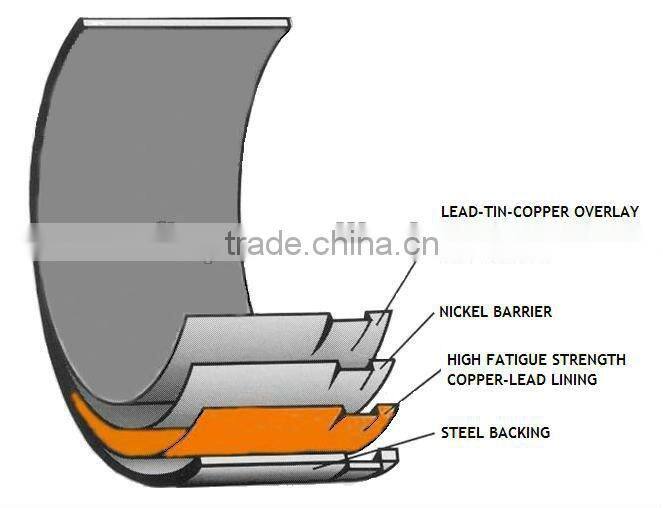

3.Material
1)Steel backing material
2)Alloy layer material
a:Bronze-based
b:Aluminium-based
4.Main Surface treatment--Tinning
1. Prevent oxidation corrosion
2. Cover Steel back and bearing between the poor fit of some shape defects
3. Beautifying
Remark:
1)For European& American, Korean & Japanese etc. Engines
2)Good quality
3)Competitive price
4)Secure service
5)products: Piston, piston ring, engine bearing, cylinder liner.
6)We can develop new items for you especially.
We have produced many different type of piston ring, piston ,cylinder liner and engine bearing
compatible for :Asia, BMW, Caterpillar, Compressor, Cummins, DAF, Deutz, Fiat, Iveco,
Ford, MAN,BENZ,Perkins Peugeot, Scania, UTB for European car.
Hino, Honda, , Isuzu, Komatsu, Mazda, Mitsubishi, Nissan, Suzuki, Toyota, etc.for Japanese car.
We are looking forward to your early new inquiry
