Diesel Engine Mini Tractor

 Diesel engine mini tractor cylinder liner for ZETOR

Our main products are: piston with pin and clips, piston ring, cylinder liner/sleeves

A: 7711 engine piston
   Application for Zetor engines:
   Piston details:
   Dia: 102
   GL:  116.5
   KH:  66.4
   Pin Dia: 35
   Length:  86
   Remark: Alfin

B: For Zetor engine details:
   we can offer the following engines as well:
   1. 7711
   2. 8611

C: and also, for tractor engines, we have the following brand:
 Fiat, Perkins,John deere, Ford, Deutz, Zetor ......

D: Production details:

Our piston details:
1. Piston Material : ZL109 Aluminium Alloy , Alloy cast iron.
2. Piston Type :1.Steel-insert piston , 2.ALFIN piston , 3.Cast Iron piston , 4.Cooling channel piston , 5.One piece casting piston , 6.Compages piston , 7.Forged piston
3. Piston Feature : Satin Anodised Aluminium ,phosphating , Alfin ,Double Alfin , No Alfin ,  Graphite , Oil cooling channel , Sn(tin) plated , Steel Piece ,
                                Top Oxidization , Skirt Graphite Printed , Three or Four Ring Grooves ,Ceramic Spraying
4. We can offer you: 1.Steel-insert piston , 2.ALFIN piston , 3.Cast Iron piston , 4.Cooling channel piston , 5.One piece casting piston ,
                                   6.Compages piston , 7.Forged piston piston, 8.Two pieces piston/Double piston

Our Piston ring details:
1. Piston ring Material : Cast iron , Alloy , Steel
2. Piston ring Feature  : 1.Chrome-plating ,2.Line-honing ,3.nitridation , 4.phosphating , 5.Moly plated(Moly-inlaid) ,6.Nitrided ,7.Oxidized,
                                          8.Nano,9.Zirconium-plating ,10.Sandblasted ,11.Special honing, 12.Titanium-plating, 13.Rail With Teflon

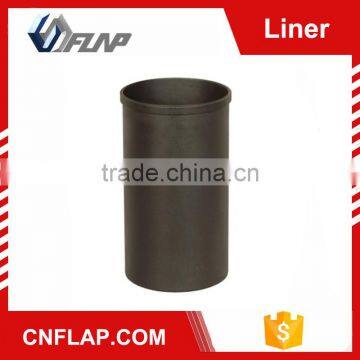

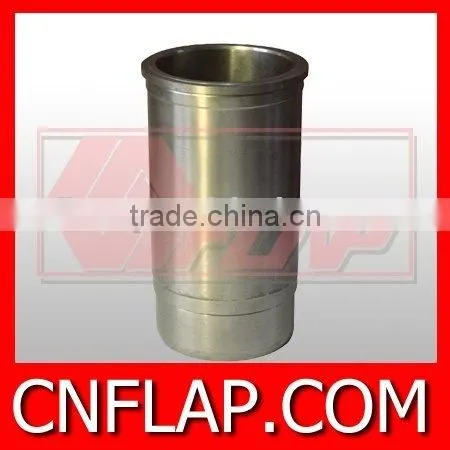

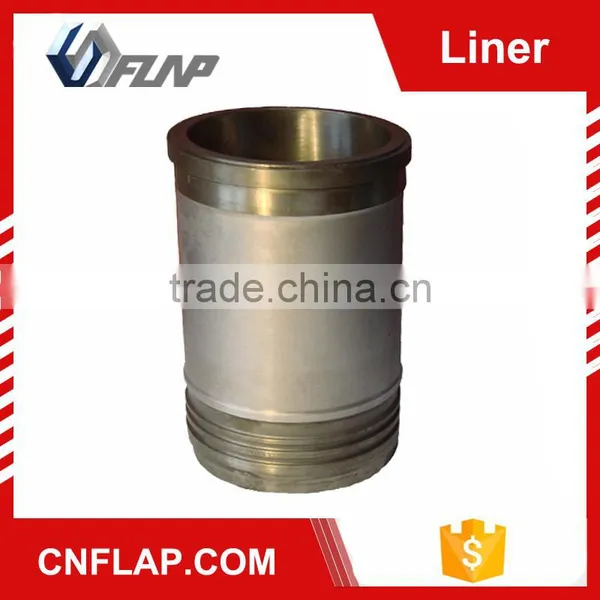

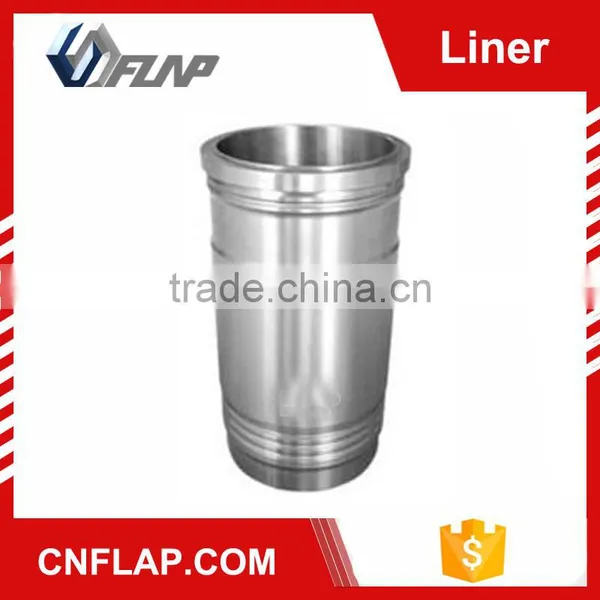

 Our Cylinder Liner details:
1. Cylinder liner/ sleeves  Material: Boron-containing Alloy Cast Iron
2. Cylinder liner/ sleeves  Treatment: Laser quenching, high-frequency quenching
3. Cylinder liner/ sleeves  Feature: Dry, Wet & Air Cooled Blocks

E: Gurantee for the piston:
   1. we strictly adhere to the GB1148-82,JB3931-85 and JB3932-85 Criterion
   2. send sample for check before delivery

F: Packing details:
   1. we can design the packing by your requirements but with bigger quantity
   2. if need wooden pallets, the customer needs to pay for the wooden pallet charges
   3. if no requirements,we offer the Corrugated Carton and vellum paper
