W04D Rings Piston

Rings piston

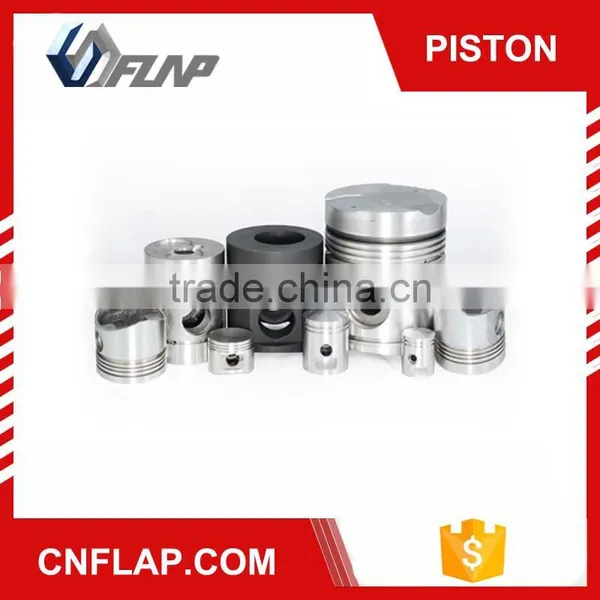

A: W04D engine piston

   Application for Hino engines:

   Piston details:

B: Hino engine details:

   we can offer the following engines as well:
   1. W04D
   2. W06E
   3. H06CT
   4. H07C
   5. H07CT
   6. H07D
   7. EH700
   8. J08CT
   9. J08C
   10. EK100/EK200
   11. EF750
   12. F17C/F17E
   13. EB300


C: and also, for Japanese truck engines, we have the following brand:

   Mitsubishi, Isuzu, Mazda, Nissan  ......

D: Production details:

1. Piston Material : ZL109 Aluminium Alloy , Alloy cast iron.
2. Piston Type :1 Steel-insert piston , 2 ALFIN piston , 3 Cast Iron piston , 4 Cooling channel piston , 5 One piece casting piston , 6 Compages piston , 7 Forged piston
3. Piston Feature : Satin Anodised Aluminium ,phosphating , Alfin ,Double Alfin , No Alfin ,  Graphite , Oil cooling channel , Sn(tin) plated , Steel Piece , Top Oxidization , Skirt Graphite Printed , Three or Four Ring Grooves ,Ceramic Spraying
4. We can offer you  The 1 Steel-insert piston , 2 ALFIN piston , 3 Cast Iron piston , 4 Cooling channel piston , 5 One piece casting piston , 6 Compages piston , 7 Forged piston piston, 8 Two pieces piston/Double piston

1. Chemical Elements of materials for piston:
    Aluminum: ZL109
       Cu: 0.5~1.5                   Si: 11.0~13.0             Mg: 0.8~1.3           Zn: 0.20max
       Fe: 0.70max                  Mn:0.20max               Ni:0.8~1.5              Ti:0.20max
       Sn:0.05max

2. Materials for the piston pin:
    40CrMo.
        Cu:0.38~0.45         Si:0.17~0.37                 Mn:0.50~0.80
        Sn:<0.0035             Cr:0.90~1.20                Mo:0.15~0.25

         Ni:allow to the impurity less than 0.030
         P:allow to the impurity less than 0.035

E: Gurantee for the piston:

   1. we strictly adhere to the GB1148-82,JB3931-85 and JB3932-85 Criterion

   2. send sample for check before delivery

F: Packing details:
   1. we can design the packing by your requirements but with bigger quantity

   2. if need wooden pallets, the customer needs to pay for the wooden pallet charges

   3. if no requirements,we offer the Corrugated Carton and vellum paper

 PLEASE KINDLY SEE MORE DETAILS AS BELOW:
