Specifications
Fiat diesel engines for 8210.02 piston ring1:TS 16949,QS9000 certification
2:Guarantee 1000000kms
3:All kinds of Packages

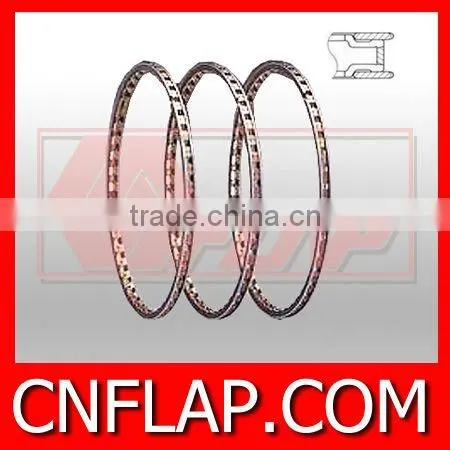

Fiat diesel engines for 8210.02 piston ring
Application for Fiat engines:
Piston ring details:
Dia: 137
4+3+3+5.5
| C/F-No | E-Model | OEM No | Piston Size | OEM No | Ring Size | OEM No | Liner Size | ||
| CF-FI-07 | 8210.02.00.R6 | 0084600 0084500 0084690 A350656 | Dia: | 137 | 00846N0 R46840 R46850 0820780010 | 4 3 3 5.5 | 007WT24 007WT25 4622074 4679653 4622379 99450067 99450068 36471698 98471699 98471700 4837426 AE:88600110 SU351396 21215902 | A: | 137 |
| GL: | 167 | B: | 143 | ||||||
| KH: | 92 | C: | 282 | ||||||
| Pin Dia: | 48 | W: | 2.7 | ||||||
| Length: | 117.5 | ||||||||
| Alfin,oil-gallery | |||||||||
B: Fiat engine details:
we can offer the following engines as well:
1. 8140.61.200.300 (2.5D)
2. 8140.23. 2585
3. 8025.02
4. 8035.05
5. 8060.45
6. 8040.25.000
7. 8210.02.00.R6
8. 802.000
9. 8361.25.510
10. CP3-CP3/100
C: and also, for agricultural engines, we have the following brand:
Ford(New Holland), Deutz, Lister-Petter ......
D: Production details:

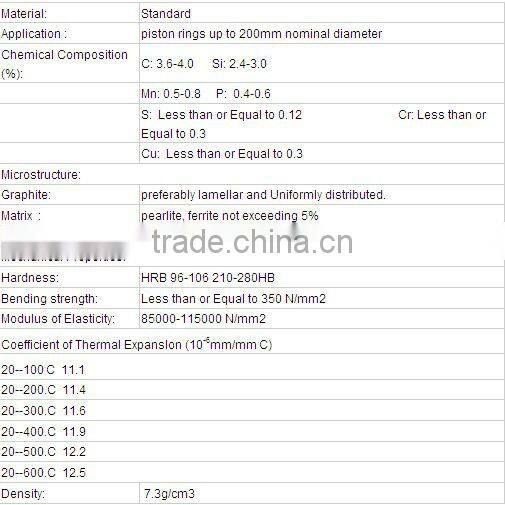

1. materials for piston ring:
2. produced by the OEM technical drawings or the sample
E: Gurantee for the piston ring :
1. we strictly adhere to the GB/T1149.4-94,CB3257-85,NJ340-84,JB3916-85 Criterion
2. send sample for check before delivery
F: Packing details:
1. we can design the packing by your requirements but with bigger quantity
2. if need wooden pallets, the customer needs to pay for the wooden pallet charges
3. if no requirements,we offer the Corrugated Carton and vellum paper
G:ISO9000 &TS16949
