Fiat uno auto parts
A: Our main products for FIAT/IVECO engine: Pistons, Piston rings, Cylinder liners/sleeves
1. Our goods are exported to all over the world like South America, USA, Mexico, Middle east, European countries, Eastasia etcs.
2. MOQ: Piston MOQ is 600~1000 pcs, Piston ring MOQ is 1000 cyls, cylinder liner MOQ is 600~1000 pcs, engine bearing 200sets
3. Our delivery time: in 45-60 days for new order production and 3~5 days if in stock.
4. Payment: 30% deposite and 70% balance before shippment
5. Our related products: Engine bearings, Engine gaskets, Engine valves etc
B: FIAT/IVECO engine details:
1. 8140.61.200.300 (2.5D)
2. 8140.23. 2585
3. 8025.02
4. 8035.05
5. 8060.45
6. 8040.25.000
7. 8210.02.00.R6
8. 802.000
9. 8361.25.510
10. CP3-CP3/100
D: Products details:
Our piston details:
1. Piston Material : ZL109 Aluminium Alloy , Alloy cast iron.
2. Piston Type :1.Steel-insert piston , 2.ALFIN piston , 3.Cast Iron piston , 4.Cooling channel piston , 5.One piece casting piston , 6.Compages piston , 7.Forged piston
3. Piston Feature : Satin Anodised Aluminium ,phosphating , Alfin ,Double Alfin , No Alfin , Graphite , Oil cooling channel , Sn(tin) plated , Steel Piece ,
Top Oxidization , Skirt Graphite Printed , Three or Four Ring Grooves ,Ceramic Spraying
4. We can offer you: 1.Steel-insert piston , 2.ALFIN piston , 3.Cast Iron piston , 4.Cooling channel piston , 5.One piece casting piston ,
6.Compages piston , 7.Forged piston piston, 8.Two pieces piston/Double piston
Our Piston ring details:
1. Piston ring Material : Cast iron , Alloy , Steel
2. Piston ring Feature : 1.Chrome-plating ,2.Line-honing ,3.nitridation , 4.phosphating , 5.Moly plated(Moly-inlaid) ,6.Nitrided ,7.Oxidized,
8.Nano,9.Zirconium-plating ,10.Sandblasted ,11.Special honing, 12.Titanium-plating, 13.Rail With Teflon

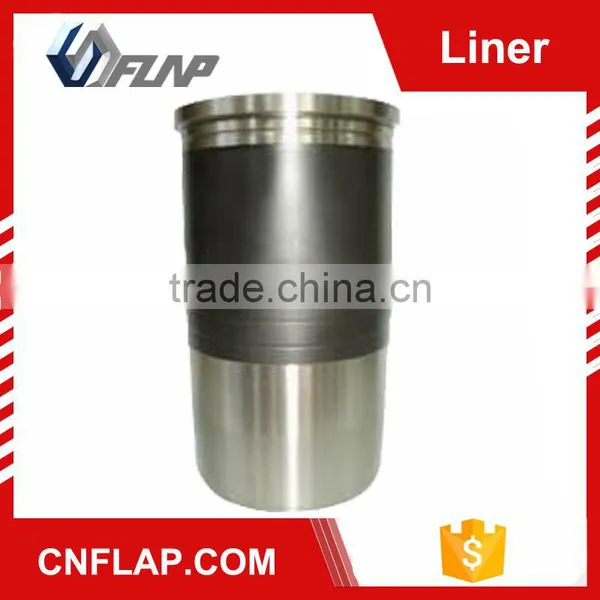

Our Cylinder Liner details:
1. Cylinder liner/ sleeves Material: Boron-containing Alloy Cast Iron
2. Cylinder liner/ sleeves Treatment: Laser quenching, high-frequency quenching
3. Cylinder liner/ sleeves Feature: Dry, Wet & Air Cooled Blocks
E: Our factory:
1.More than Two thousands of engine models developed
2.Strict quality control system, pass TS16949, ISO9000, ISO9002 certificate
3.Competitive price on best quality with100,000km and One year warranty
4.Professional sales and service teams
5.Various Packing options
6.Capacity to develop new items according to customer requirements
F: Packing details:
1. OEM genuine packing
2. Your own brand packing as required
3. Wooden packing/ Pallet if needed
4. Neutral packing/white box/blank box(45mm*42mm*38mm)
G. Piston,Piston ring, Cylinder liner for atlet forklift, earth mover, Construction Machinery, forklift truck, crane
And also For European& American,Korean & Japanese and Russian etc. Engines
| Cnflap NO. | Engine | Reference NO. | Size (Inside Bore*Outside Bore *Total Length) | Note | Weight |
| CF-IVC&FIAT-001-03 | 8140.61.200.300(2.5D) |
007WV46 8140072700 814058U 7302961 04860109 04860110 7302136 7301804 3231720 AE:21233502 21235902 21230702 3231720 CH2403100 CH2403110 21233502 21235902 21230502 21230702 |
93*98*171/167.3/167 | DRY | |
| CF-IVC&FIAT-002-03 | 8140.23.2585 | 007WV56 99435938 AE:89502190 SU351380 | 94.4*97.53*167 | ||
| CF-IVC&FIAT-001-03 | FIAT UNO | 83*153.5 | SEMI | ||
| CF-IVC&FIAT-002-03 | 493 | 7302453EZ | 91*167.5 | SEMI | |
| CF-IVC&FIAT-003-03 | 493 | 99432234 | 92.7*167 | SEMI | |
| CF-IVC&FIAT-004-03 | 8140072700 | 8140 8144 | 93*171 | SEMI | |
| CF-IVC&FIAT-005-03 | 8060.45 | 007WV48 04770654 04770623 04770624 04803030 04803031 AE:21233902 89317190 21232402 21233902 | 103*107*198 | 0.97 | |
| CF-IVC&FIAT-005-03 | 814058U | 8140 8144 | 93*167.3 | SEMI | |
| CF-IVC&FIAT-006-03 | 493 | 7302961 | 93*167 | ||
| CF-IVC&FIAT-007-03 | 8025.02 | 4653280 | 100*187.5 | SEMI | |
| CF-IVC&FIAT-007-03 | 802 |
EM7001 04599351 04599352 4599351 AE:21214802 SU3513397 |
95*99.1*187 | 1.05 | |
| CF-IVC&FIAT-008-03 | 8035.06 | 4770654 | 100*196 | SEMI | |
| CF-IVC&FIAT-009-03 | 8030.05 | 4770623 | 104*198 | SEMI | |
| CF-IVC&FIAT-010-03 | 8361.25.51 |
233WN09 4850230 AE:58117102 89024110 |
115*122*235.5 | ||
| CF-IVC&FIAT-011-03 | CP3-CP3/100 | SJ351430 | 110*118*236 | WET | |
| CF-IVC&FIAT-010-03 | 8460.21.002 |
61316857EZ 61316752EZ 007 WN.45 |
120*250 | ||
| CF-IVC&FIAT-011-03 | 8460.21.202/611 | 007WN.45 | 120*250 | WET | |
| CF-IVC&FIAT-012-03 | 82000200 |
61316754EZ 61316859EZ |
122*250 | ||
| CF-IVC&FIAT-013-03 | 007WV57 | 007WV57 | 129*282 | DRY | |
| CF-IVC&FIAT-014-03 | 8210.02.00 007WT25 |
4622074EZ 4679653EZ 4622379EZ |
137*282 | ||
| CF-IVC&FIAT-015-03 | 8210.02.00 |
99450067EZ 99450068EZ |
137*282 | ||
| CF-IVC&FIAT-016-03 | 8210.02.00 | 36471698EZ | 137*282 | ||
| CF-IVC&FIAT-017-03 | 8210.02.00 |
98471699EZ 98471700EZ |
137*282 |
