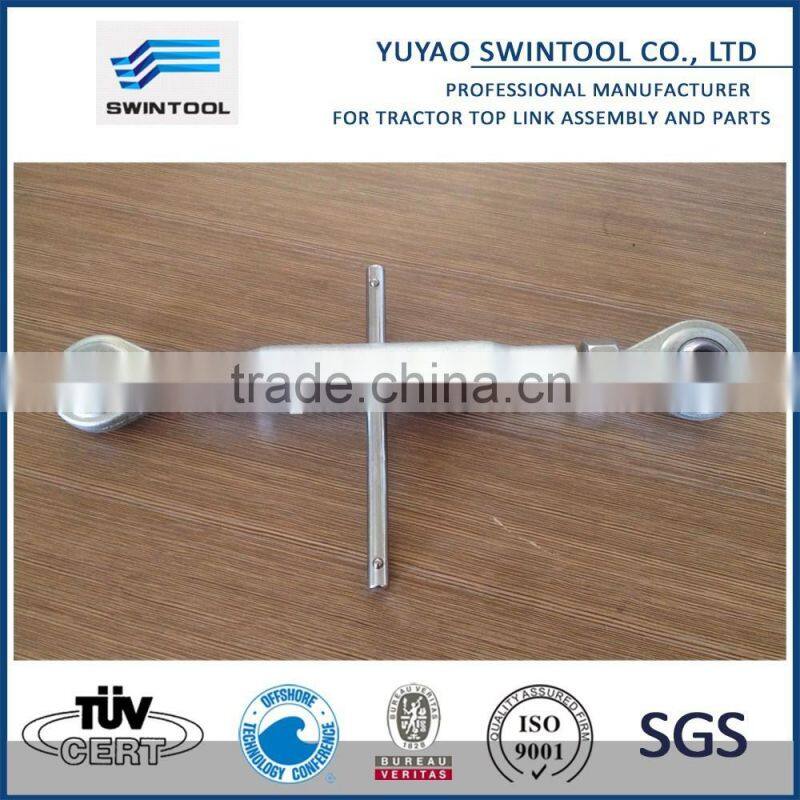

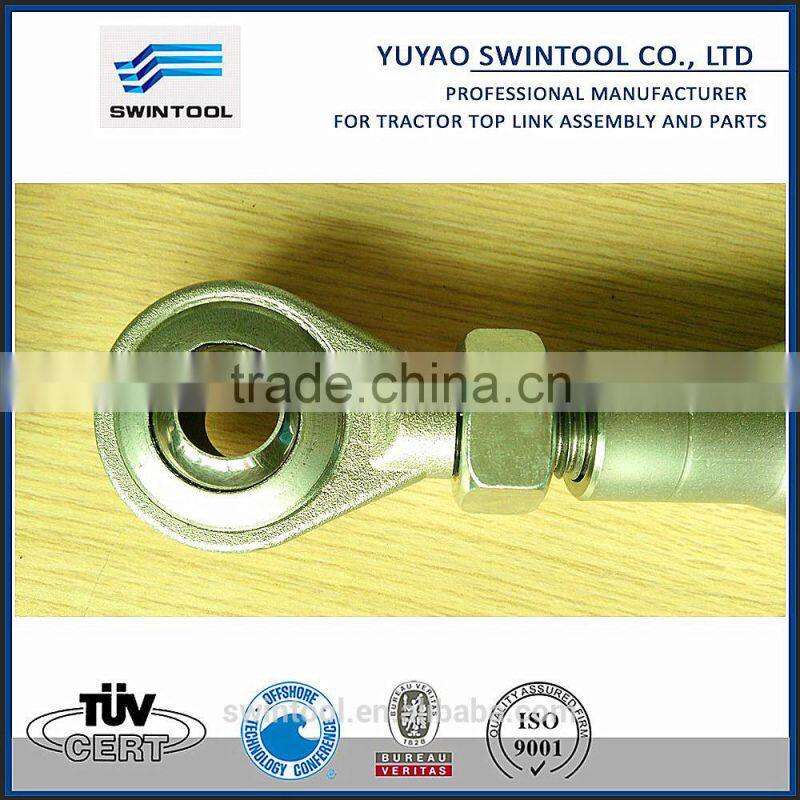

Special Top link with end rods for tractor's hydraulic system
Product |
Special Top link with end rods for tractor's hydraulic system |
Material |
Version 2005, DIN 1478 |
Finish |
hot dip galvanization, self-color, electroplating white Zinc |
Type |
hook & hook, eye & eye, jaw & jaw, hook & eye, jaw & eye, stub & stub end turnbuckles |
Size |
M8-M42 |
Function |
used for tractor three point hitch ( including tractor’s hydraulic system, attaching points, the lifting arms, and stabilizers) |
Product range |

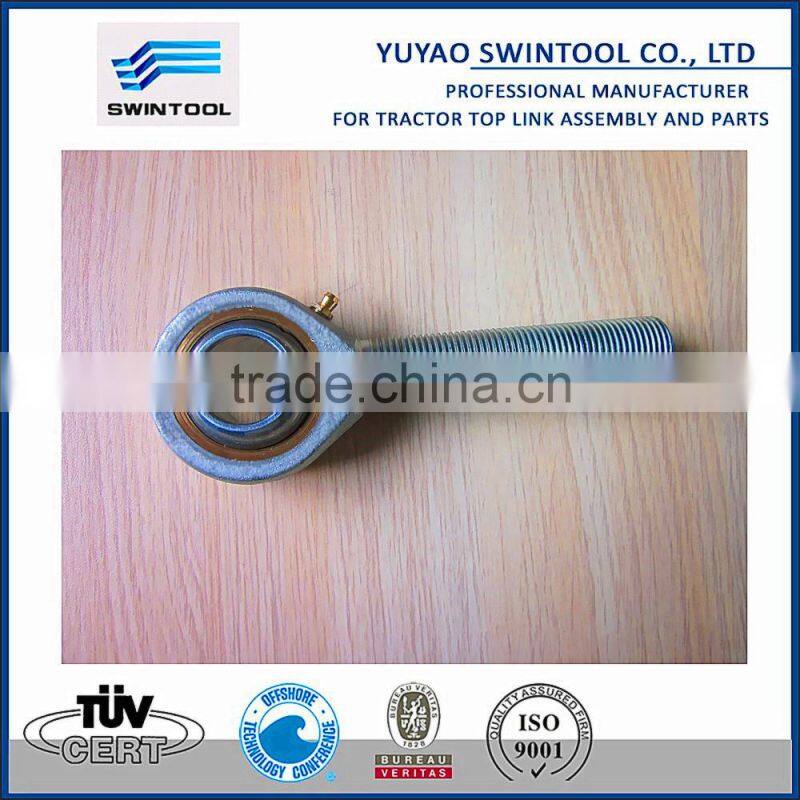

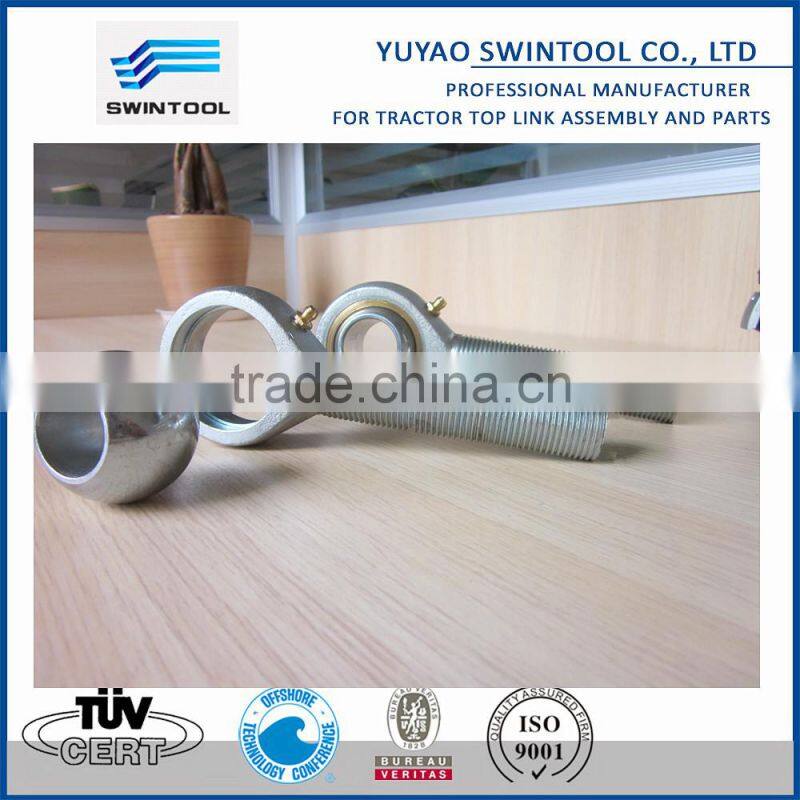

adjustable leveling assembly (stabilizer) and ratchet jack ( lifting arm), stabilizer chains assembly, top link assembly(upper link arm), lower link arm, ball joint terminals, ball and bushes, cross bar, top hooks, ball tie-rods and swiveling tie rods, turnbuckles etc.
|
| Steel- | |||||||||
| Self coloured | C | d1 | d2 | d4 | d5 | L1 | m | Weight per 100 pcs | Units per bag |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| 4.0 | M12 | 25.0 | 10 | 4 | 125 | 15 | 24.10 | 1 | |
| 4.5 | M16 | 30.0 | 10 | 4 | 170 | 20 | 37.00 | 1 | |
| 5.0 | M20 | 33.7 | 12 | 4 | 200 | 24 | 68.00 | 1 | |
| 5.6 | M24 | 42.4 | 12 | 4 | 255 | 29 | 110.00 | 1 | |
| 5.6 | M27 | 44.5 | 14 | 4 | 255 | 34 | 120.00 | 1 | |
| 6.3 | M30 | 51.0 | 16 | 4 | 255 | 36 | 147.00 | 1 | |
| 8.0 | M36 | 63.0 | 16 | 6 | 295 | 43 | 245.00 | 1 | |
| 8.8 | M42 | 70.0 | 20 | 6 | 330 | 51 | 400.00 | 1 | |
| 10.0 | M48 | 82.5 | 20 | 6 | 355 | 58 | 500.00 | 1 | |
| 11.0 | M56 | 88.9 | 25 | 10 | 355 | 68 | 620.00 | 1 | |
| 12.5 | M64 | 108.0 | 25 | 10 | 425 | 77 | 830.00 | 1 | |
| Galvanized | C | d1 | d2 | d4 | d5 | L1 | m | Weight per 100 pcs | Units per bag |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| 2.9 | M6 | 17.2 | 6 | 4 | 110 | 7.5 | 10.20 | 1 | |
| 3.6 | M8 | 17.2 | 8 | 4 | 110 | 1.0 | 12.20 | 1 | |
| 4.0 | M10 | 21.3 | 8 | 4 | 125 | 12.0 | 19.50 | 1 | |
| 4.0 | M12 | 25.0 | 10 | 4 | 125 | 15.0 | 24.10 | 1 | |
| 4.5 | M16 | 30.0 | 10 | 4 | 170 | 20.0 | 37.00 | 1 | |
| 5.0 | M20 | 33.7 | 12 | 4 | 200 | 24.0 | 68.00 | 1 | |
| 5.6 | M24 | 42.4 | 12 | 4 | 255 | 29.0 | 110.00 | 1 | |
| 5.6 | M27 | 42.0 | 14 | 4 | 255 | 34.0 | 120.00 | 1 | |
| 6.3 | M30 | 51.0 | 16 | 4 | 255 | 36.0 | 147.00 | 1 | |
| 8.0 | M36 | 63.5 | 16 | 4 | 295 | 43.0 | 245.00 | 1 | |
| 8.8 | M42 | 70.0 | 20 | 6 | 330 | 51.0 | 400.00 | 1 |
|
Special Top link with end rods for tractor's hydraulic system
Packing:swintool standard package or customer' required see details in the content
blue structure plastic bag-euro base pallet with disconnecting layers
Shipping: 45 days after receiving confirmed order
Swintool is devoted to provide special hardware tools and accessory with the certificate of ISO 9001:2008, Industrial manufacturing customer’s different need is our continuous driving force of evolving into specialty tools.
With 3D model drawing design support(UG, Solidworks etc) ; and the integration of processing technology resources, our sub-supplier are equipped with a series of advanced and specific production equipment such as M/C, CNC, wire cutting, CNC Laser cutting machines rinding /milling machines and hot/cold forging machines, We invested the hydraulic pressure machinery to develop the technology of metal forming (i.e pipe forming) etc.; with the support of our the third-party lab, we can analysis the chemical compositions and physical properties of the material.
We are looking forward to hearing from your inquiry!
...
