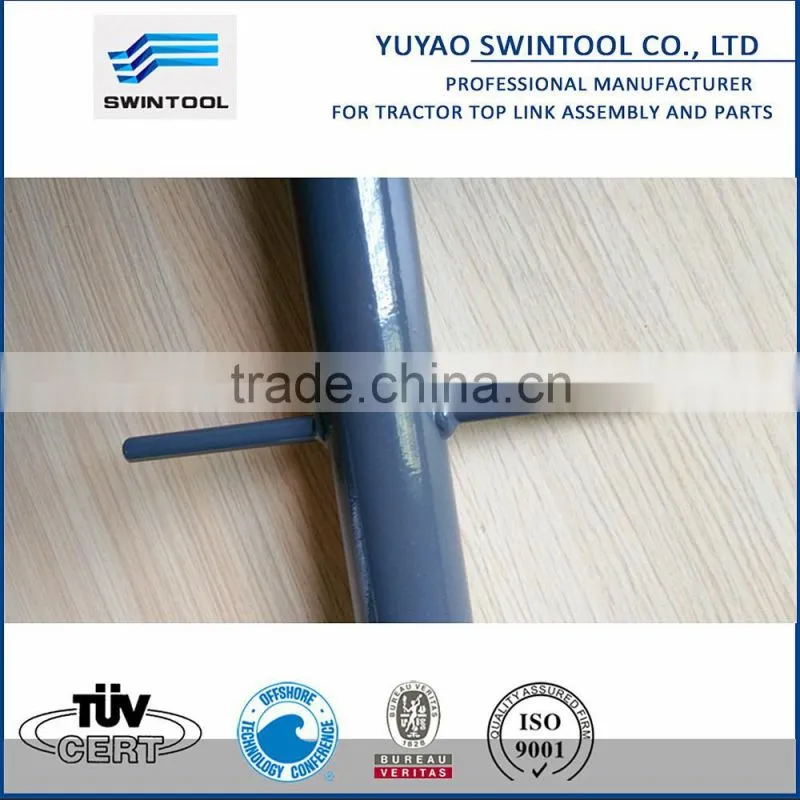

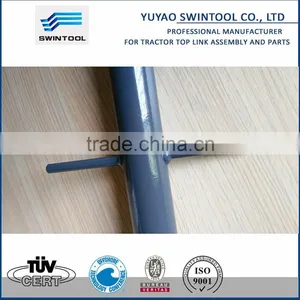

Help CenterHigh Quality Forged Top-link With Rod End Joint Bearing for Tractor Linkage
Related Products
-
M30 Din 1478 High Quality Top-link With Rod Ends for Tracor LinkageUS$ 1 - 60MOQ: 500 Sets -
M30 Din 1478 High Quality Top Link Assembly With Rod Ends for Tractor LinkageUS$ 1 - 60MOQ: 500 Sets
-
5/16" Turnbuckle Link For Use With SWINTOOL Rod Ends M20US$ 2 - 20MOQ: 20 Pieces
-
5/16" Turnbuckle Link For Use With SWINTOOL Rod Ends M28US$ 2 - 20MOQ: 20 Pieces
-
5/16" Turnbuckle Link For Use With SWINTOOL Rod Ends M32US$ 2 - 20MOQ: 20 Pieces
high quality top-link with rod end joint bearing
Product |
high quality top-link with rod end joint bearing |
Material |
Version 2005, DIN 1478 |
Finish |
hot dip galvanization, self-color, electroplating white Zinc |
Type |
hook & hook, eye & eye, jaw & jaw, hook & eye, jaw & eye, stub & stub end turnbuckles |
Size |
M8-M72 |
Function |
used for tractor three point hitch ( including tractor’s hydraulic system, attaching points, the lifting arms, and stabilizers) |
Product range |
adjustable leveling assembly (stabilizer) and ratchet jack ( lifting arm), stabilizer chains assembly, top link assembly(upper link arm), lower link arm, ball joint terminals, ball and bushes, cross bar, top hooks, ball tie-rods and swiveling tie rods, turnbuckles etc.
|
Self-color
C |
d1 |
d2 |
d4 |
d5 |
L1 |
m |
Weight per 100 pcs |
Units per bag |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[kg] |
|
4.0 |
M12 |
25.0 |
10 |
4 |
125 |
15 |
24.10 |
1 |
4.5 |
M16 |
30.0 |
10 |
4 |
170 |
20 |
37.00 |
1 |
5.0 |
M20 |
33.7 |
12 |
4 |
200 |
24 |
68.00 |
1 |
5.6 |
M24 |
42.4 |
12 |
4 |
255 |
29 |
110.00 |
1 |
5.6 |
M27 |
44.5 |
14 |
4 |
255 |
34 |
120.00 |
1 |
6.3 |
M30 |
51.0 |
16 |
4 |
255 |
36 |
147.00 |
1 |
8.0 |
M36 |
63.0 |
16 |
6 |
295 |
43 |
245.00 |
1 |
8.8 |
M42 |
70.0 |
20 |
6 |
330 |
51 |
400.00 |
1 |
10.0 |
M48 |
82.5 |
20 |
6 |
355 |
58 |
500.00 |
1 |
11.0 |
M56 |
88.9 |
25 |
10 |
355 |
68 |
620.00 |
1 |
12.5 |
M64 |
108.0 |
25 |
10 |
425 |
77 |
830.00 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
galavanized | ||||||||
C |
d1 |
d2 |
d4 |
d5 |
L1 |
m |
Weight per 100 pcs |
Units per bag |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[kg] |
|
2.9 |
M6 |
17.2 |
6 |
4 |
110 |
7.5 |
10.20 |
1 |
3.6 |
M8 |
17.2 |
8 |
4 |
110 |
1.0 |
12.20 |
1 |
4.0 |
M10 |
21.3 |
8 |
4 |
125 |
12.0 |
19.50 |
1 |
4.0 |
M12 |
25.0 |
10 |
4 |
125 |
15.0 |
24.10 |
1 |
4.5 |
M16 |
30.0 |
10 |
4 |
170 |
20.0 |
37.00 |
1 |
5.0 |
M20 |
33.7 |
12 |
4 |
200 |
24.0 |
68.00 |
1 |
5.6 |
M24 |
42.4 |
12 |
4 |
255 |
29.0 |
110.00 |
1 |
5.6 |
M27 |
42.0 |
14 |
4 |
255 |
34.0 |
120.00 |
1 |
6.3 |
M30 |
51.0 |
16 |
4 |
255 |
36.0 |
147.00 |
1 |
8.0 |
M36 |
63.5 |
16 |
4 |
295 |
43.0 |
245.00 |
1 |
8.8 |
M42 |
70.0 |
20 |
6 |
330 |
51.0 |
400.00 |
1 |
high quality top-link with rod end joint bearing
Packing:
swintool standard package or customer' required see details in the content
blue structure plastic bag-euro base pallet with disconnecting layers
Shipping: 45 days after receiving confirmed order
Swintool is devoted to provide special hardware tools and accessory with the certificate of ISO 9001:2008, Industrial manufacturing customer’s different need is our continuous driving force of evolving into specialty tools.
With 3D model drawing design support(UG, Solidworks etc) ; and the integration of processing technology resources, our sub-supplier are equipped with a series of advanced and specific production equipment such as M/C, CNC, wire cutting, CNC Laser cutting machines rinding /milling machines and hot/cold forging machines, We invested the hydraulic pressure machinery to develop the technology of metal forming (i.e pipe forming) etc.; with the support of our the third-party lab, we can analysis the chemical compositions and physical properties of the material.
We are looking forward to hearing from your inquiry!
....
