Specifications
China Top 10 radiator OEM manufacturer.Have been exported more than 30 countries.
Have passed the ISO9001 and TS16949:2001.

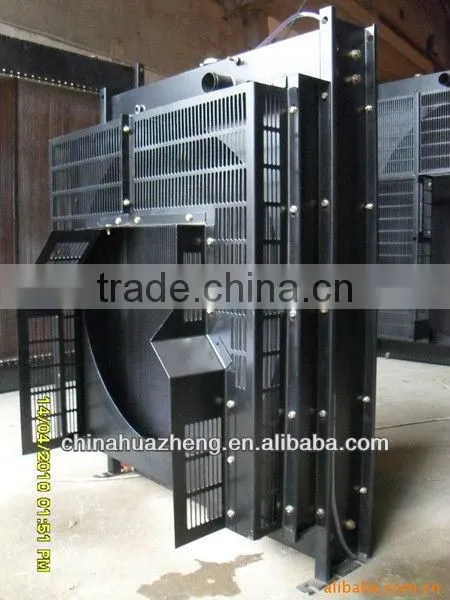

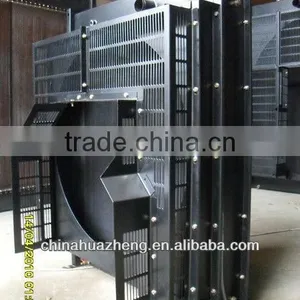

Bottom price Chongqing Cummins 4BTA engine radiator
We can also manufacture the following models Cummins series radiator:
MODEL | OVERALL DIMENSION | INSTALLATION DIMENSION | CENTER HEIGHT | POWR |
MTA11-G2 | 1194*993*595 | 872*76 | 543 | 250KW |
MTAA11-G3 | 1200*1052*700 | 875*210 | 549 | 280KW |
KTA19-G2 | 1630*1355*892 | 1305*250 | 860 | 330KW |
KTA19-G3 | 1630*1355*892 | 1305*250 | 860 | 360KW |
KTA19-G4 | 1630*1355*892 | 1305*250 | 860 | 400KW |
KTAA19-G7 | 1680*1545*769 | 1450*370 | 820 | 500KW |
KTA38-G2 | 1980*2055*869 | 1975*250 | 1095 | 750KW |
KTA38-G2A | 1980*2055*869 | 1975*250 | 1095 | 792KW |
KTA38-G5 | 1980*2055*869 | 1990*250 | 1105 | 800KW |
NTA855-G1 | 1250*975*630 | 870*76 | 608 | 248KW |
NTA855-G2 | 1250*975*630 | 870*76 | 608 | 313KW |
Specification | Matched type of diesel engines | Matched Power(kw) |
4BT | 4B3.9 4BT3.9 | 30 |
4BTA | 4BT3.9 | 50 |
6BT | 6BT5.9 | 75-90 |
6BTA | 6BTA5.9 | 100 |
6BTAA | 6BTAA5.9 | 120 |
6CTA | 6CTA8.3 | 150 |
6CTAA | 6CTAA | 180 |
6LTAA | 6LTAA | 220 |
NT855-GI | NT855-GA NTA855-GI | 200 |
MTAII-G2A | MTAII-G2A | 250 |
NTA855-G1A | NTA855-G2 NTA855-G1A | 250 |
MTAAII-G3 | MTAA II-G3 | 300 |
NT855-G2A | NTA855-G4 NTA855-G2A | 300 |
NTAA855-G7 | NTAA855-G7 | 300 |
KTA19-G4 | KTA19-G3 KTA19-G4 | 350-400 |
KTAA19-G7 | KTAA19-G7 KTAA19-G6A | 500 |
KT38-G | KT38-G | 500 |
KTA38-G3 | KT38-G2 KT38-G3 | 600 |
KTA38-G2A | KTA38-G2A | 728 |
KTA38-G5 | KTA38-G5 | 800 |
KTA38-G9 | KTA38-G9 | 1100 |
KTAA38-G9A | KTAA38-G9 | 1100 |
KTA50-G8 | KTA50-G8 | 1200 |
If the radiator model you need is not included the above list, pls tell me the detailed parameters or drawings,
we can design for your special demand. Suppose you need huge quantity, perhaps we can make the new mold.
Pls do not be hesitate to contact me directly!
Order instructions
1.MOQ
2.The generator set total power
3.The matched engine model
4.Sampls or radiator detailed drawings is the best choose.
4.Special need for your demand.
Safety features
Performance test(including Anti-tensile Strength, Hardness, Eriehsen test),
Single radiator wind tunnel test, Vibration test, Thermal shock test, Combination of cooling systern wind tunnel test,
High &low temperature test, High temperature &pressure pulse test, Inside &outside corrosion test, Metal element spectrum analysis.
Welcome to contact us by E-mail or online, you will receive our prompt and careful reply!
